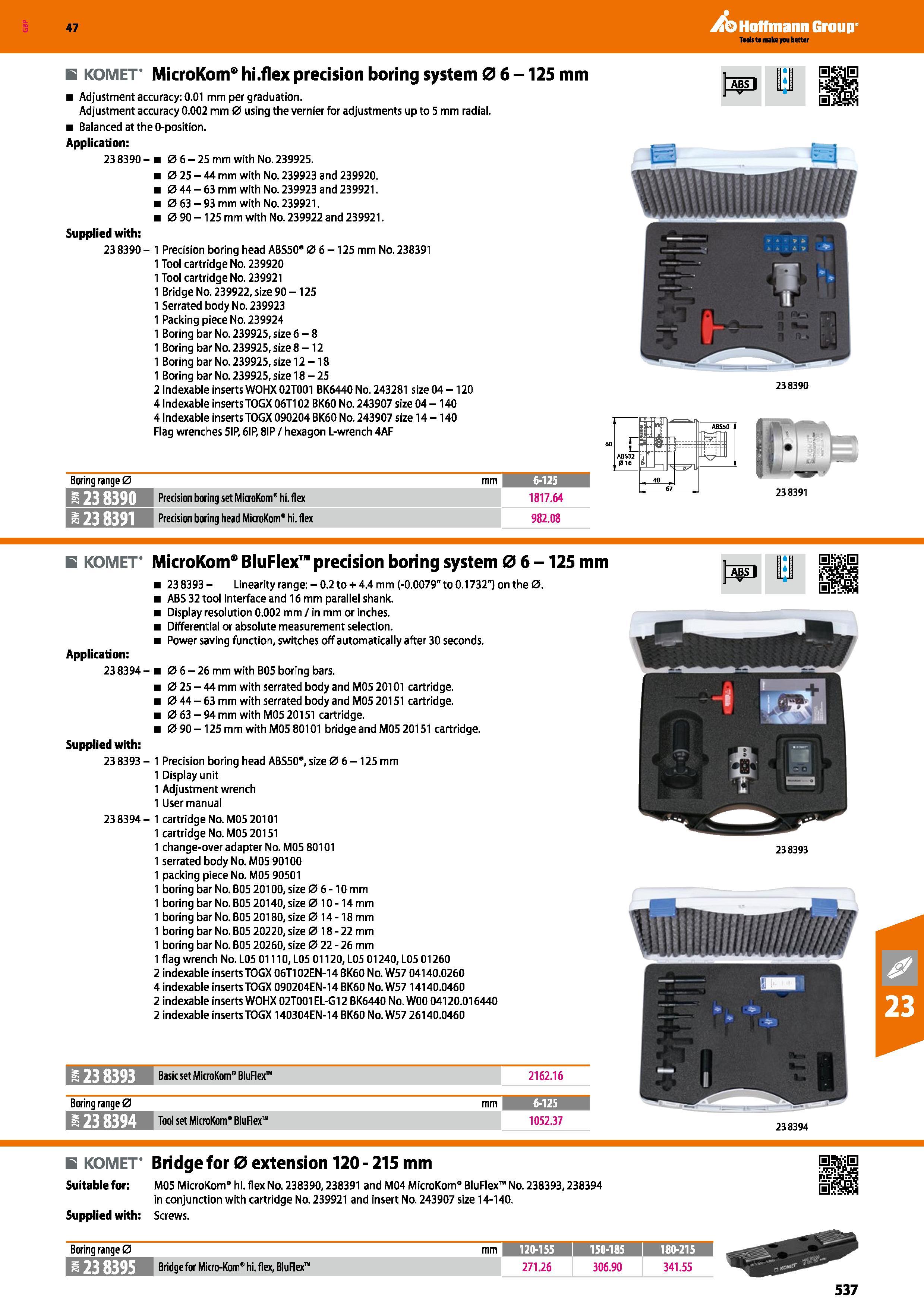

Hoffmann Group 47 KOMET MicroKom hi.flex precision boring system 0 6-125 mm Adjustment accuracy: 0.01 mm per graduation. Adjustment accuracy 0.002 mm 0 using the vernier for adjustments up to 5 mm radial. Balanced at the 0-position. Application: 23 8390 - 06 - 25 mm with No. 239925. 0 25 - 44 mm with No. 239923 and 239920. 0 44 - 63 mm with No. 239923 and 239921. 0 63 - 93 mm with No. 239921. 0 90-125 mm with No. 239922 and 239921. Supplied with: 238390- 1 Precision boring head ABS50" 0 6 -125 mm No. 238391 1 Tool cartridge No. 239920 1 Tool cartridge No. 239921 1 Bridge No. 239922, size 90-125 1 Serrated body No. 239923 1 Packing piece No. 239924 1 Boring bar No. 239925, size 6-8 1 Boring bar No. 239925, size 8 -12 1 Boring bar No. 239925, size 12 -18 1 Boring bar No. 239925, size 18 - 25 2 Indexable inserts WOHX 02T001 BK6440 No. 243281 size 04 - 120 4 Indexable inserts TOGX 06T102 BK60 No. 243907 size 04 -140 4 Indexable inserts TOGX 090204 BK60 No. 243907 size 14 - 140 Flag wrenches 5IP, 6IP, 8IP / hexagon L-wrench 4AF JabsJ 23 8390 Boring range 0 mm 6-125 I 8 23 8390 Precision boring set MicroKom8 hi. flex 1817.64 8 238391 Precision boring head MicroKom' hi. flex 982.08 r 4 T-h ABS50 ABS32 , 016 > L-H h 57 - 40 m 238391 B KOMET MicroKom BluFlex precision boring system 0 6-125 mm 23 8393 - Linearity range: - 0.2 to + 4.4 mm (-0.0079" to 0.1732") on the 0. ABS 32 tool interface and 16 mm parallel shank. Display resolution 0.002 mm / in mm or inches. Differential or absolute measurement selection, i Power saving function, switches off automatically after 30 seconds. Application: 238394- Supplied with: 238393 0 6 - 26 mm with B05 boring bars. 0 25 - 44 mm with serrated body and M05 20101 cartridge. 0 44 - 63 mm with serrated body and M05 20151 cartridge. 0 63 - 94 mm with M05 20151 cartridge. 0 90 -125 mm with M05 80101 bridge and M05 20151 cartridge. 1 Precision boring head ABS50", size 0 6 -125 mm 1 Display unit 1 Adjustment wrench 1 User manual 238394- 1 cartridge No. M05 20101 1 cartridge No. M05 20151 1 change-over adapter No. M05 80101 1 serrated body No. M05 90100 1 packing piece No. M05 90501 1 boring bar No. B05 20100, size 0 6 -10 mm 1 boring bar No. B05 20140, size 0 10 -14 mm 1 boring bar No. B05 20180, size 014-18 mm 1 boring bar No. B05 20220, size 0 18 - 22 mm 1 boring bar No. B05 20260, size 0 22 - 26 mm 1 flag wrench No. L05 01110, L05 01120, L05 01240, L05 01260 2 indexable inserts TOGX 06T102EN-14 BK60 No. W57 04140.0260 4 indexable inserts TOGX 090204EN-14 BK60 No. W57 14140.0460 2 indexable inserts WOHX 02T001EL-G12 BK6440 No. WOO 04120.016440 2 indexable inserts TOGX 140304EN-14 BK60 No. W57 26140.0460 238393 8 238393 Basic set MicroKom” BluFlex 2162.16 Boring range 0 mm 6-125 8 238394 Tool set MicroKom BluFlex 1052.37 238394 B KOMET Bridge for 0 extension 120 - 215 mm Suitable for: M05 MicroKom’ hi. flex No. 238390,238391 and M04 MicroKom” BluFlex No. 238393,238394 in conjunction with cartridge No. 239921 and insert No. 243907 size 14-140. Supplied with: Screws. Boring range 0 HHI 120-155 I 150-185 180-215 i Bridge for Micro-Korn” hi. flex, BluFlex 271.26 306.90 341.55 537
