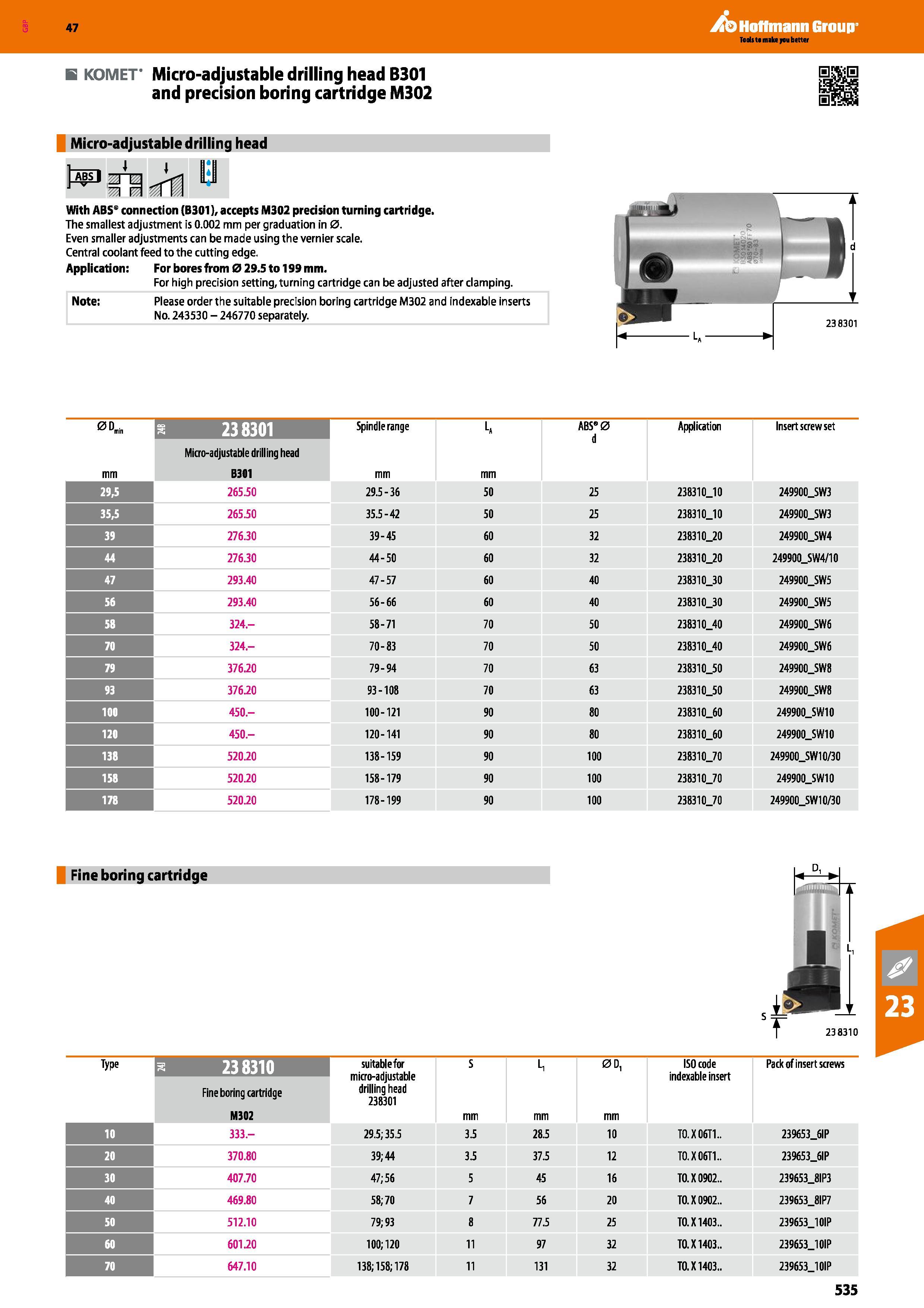

Hoffmann Group 47 B KOMET Micro-adjustable drilling head B301 and precision boring cartridge M302 Micro-adjustable drilling head With ABS connection (B301), accepts M302 precision turning cartridge. The smallest adjustment is 0.002 mm per graduation in 0. Even smaller adjustments can be made using the vernier scale. Central coolant feed to the cutting edge. Application: For bores from 0 29.5 to 199 mm. For high precision setting, turning cartridge can be adjusted after clamping. Note: Please order the suitable precision boring cartridge M302 and indexable inserts No. 243530 - 246770 separately. 238301 0D min s 238301 Spindle range L, ABS'0 d Application Insert screw set mm Micro-adjustable drilling head B301 mm 29,5 265.50 29.5-36 50 25 238310J0 249900_SW3 35,5 265.50 35.5-42 50 25 238310J0 249900_SW3 39 276.30 39-45 60 32 238310_20 249900_SW4 44 276.30 44-50 60 32 238310_20 249900_SW4/10 47 293.40 47-57 60 40 238310_30 249900_SW5 56 293.40 56-66 60 40 238310_30 249900_SW5 58 324- 58-71 70 50 238310_40 249900_SW6 70 324- 70-83 70 50 238310_40 249900_SW6 79 376.20 79-94 70 63 238310_50 249900_SW8 93 376.20 93-108 70 63 238310_50 249900_SW8 100 450.- 100-121 90 80 238310_60 249900_SW10 120 450.- 120-141 90 80 238310_60 249900_SW10 138 520.20 138-159 90 100 238310_70 249900_SW 10/30 158 520.20 158-179 90 100 238310_70 249900_SW10 178 520.20 178-199 90 100 238310_70 249900_SW 10/30 Fine boring cartridge Type 238310 Fine boring cartridge suitable for micro-adjustable drilling head 238301 0D. ISO code indexable insert Pack of insert screws M302 mm 10 333.- 29.5; 35.5 3.5 28.5 10 TO. X 06T1.. 239653_6IP 20 370.80 39; 44 3.5 37.5 12 T0.X06T1.. 239653_6IP 30 407.70 47; 56 5 45 16 TO. X 0902.. 239653_8IP3 40 469.80 58; 70 7 56 20 TO. X 0902.. 239653JIP7 50 512.10 79; 93 8 77.5 25 TO. X1403.. 239653J0IP 60 601.20 100; 120 11 97 32 TO. X1403.. 239653J0IP 70 647.10 138; 158; 178 11 131 32 TO. X1403.. 239653J0IP 535
