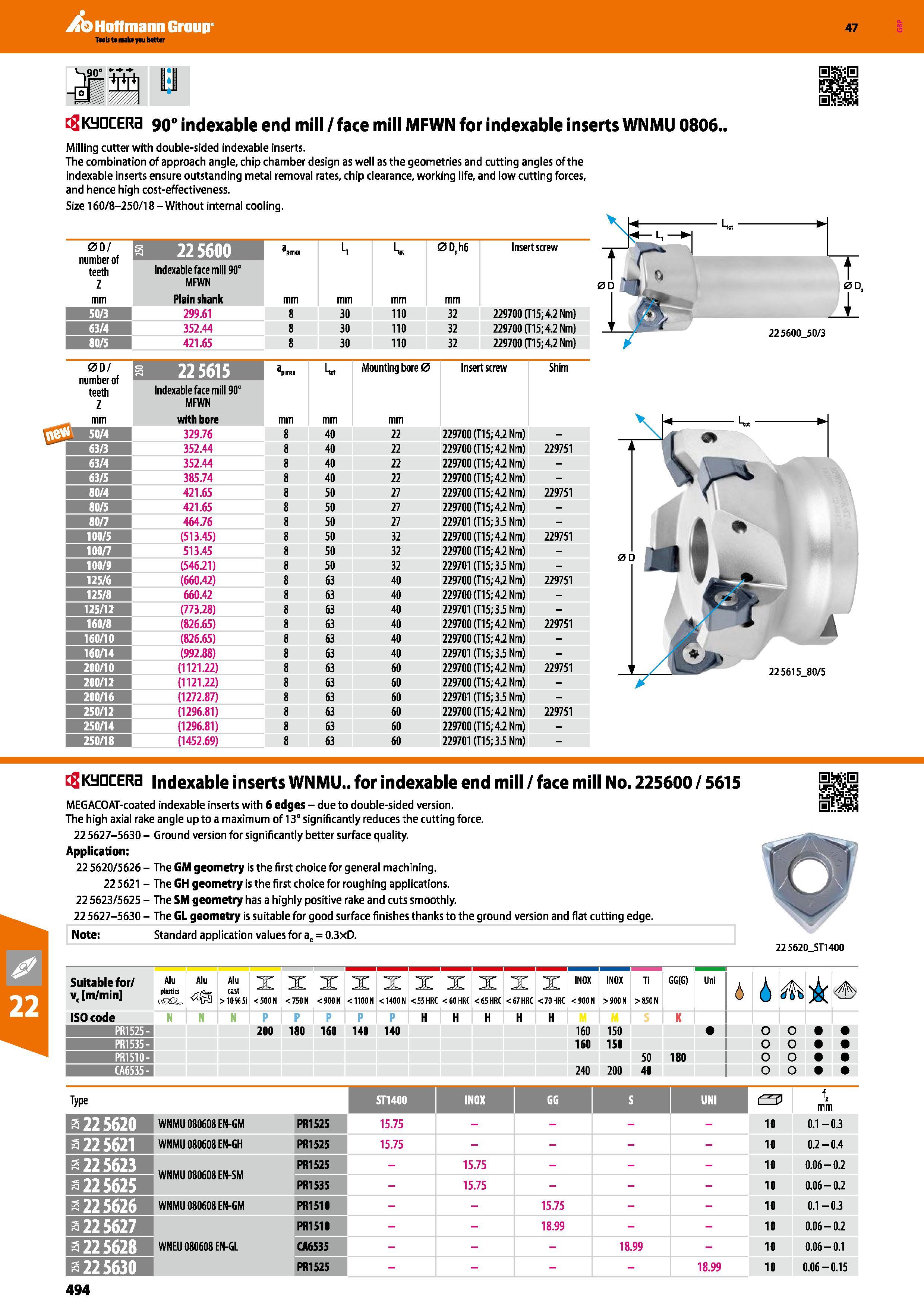

Hoffmann Group 47 flKyQCERa 90° indexable end mill / face mill MFWN for indexable inserts WNMU 0806. Milling cutter with double-sided indexable inserts. The combination of approach angle, chip chamber design as well as the geometries and cutting angles of the indexable inserts ensure outstanding metal removal rates, chip clearance, working life, and low cutting forces, and hence high cost-effectiveness. Size 160/8-250/18 - Without internal cooling. 00/ number of teeth Z 225600 L, 0Dsh6 Insert screw Indexable face mill 90° MFWN mm Plain shank mm 50/3 299.61 8 30 110 32 229700(115; 4.2 Nm) 63/4 352.44 8 30 110 32 229700(115; 4.2 Nm) 80/5 421.65 8 30 110 32 229700 (T15; 4.2 Nm) I- - T 0 D 225600_50/3 0D/ number of teeth Z mm 225615 pmt mm h mm Mounting bore 0 mm Insert screw Shim Indexable face mill 90° MFWN with bore 329.76 8 40 22 229700 (T15; 4.2 Nm) - 352.44 8 40 22 229700 (T15; 4.2 Nm) 229751 63/4 352.44 8 40 22 229700 (T15; 4.2 Nm) - 63/5 385.74 8 40 22 229700 (T15; 4.2 Nm) - 80/4 421.65 8 50 27 229700 (T15; 4.2 Nm) 229751 80/5 421.65 8 50 27 229700 (T15; 4.2 Nm) - 80/7 464.76 8 50 27 229701 (T15; 3.5 Nm) - 100/5 (513.45) 8 50 32 229700 (T15; 4.2 Nm) 229751 100/7 513.45 8 50 32 229700 (T15; 4.2 Nm) - 100/9 (546.21) 8 50 32 229701 (T15; 3.5 Nm) - 125/6 (660.42) 8 63 40 229700 (T15; 4.2 Nm) 229751 125/8 660.42 8 63 40 229700 (T15; 4.2 Nm) - 125/12 (773.28) 8 63 40 229701 (T15; 3.5 Nm) - 160/8 (826.65) 8 63 40 229700 (T15; 4.2 Nm) 229751 160/10 (826.65) 8 63 40 229700 (T15; 4.2 Nm) - 160/14 (992.88) 8 63 40 229701 (T15; 3.5 Nm) - 200/10 (1121.22) 8 63 60 229700 (T15; 4.2 Nm) 229751 200/12 (1121.22) 8 63 60 229700 (T15; 4.2 Nm) - 200/16 (1272.87) 8 63 60 229701 (T15; 3.5 Nm) - 250/12 (1296.81) 8 63 60 229700 (T15; 4.2 Nm) 229751 250/14 (1296.81) 8 63 60 229700 (T15; 4.2 Nm) - 250/18 (1452.69) 8 63 60 229701 (T15; 3.5 Nm) - flKyDCERa Indexable inserts WNMU.. for indexable end mill/face mill No. 225600 / 5615 MEGACOAT-coated indexable inserts with 6 edges - due to double-sided version. The high axial rake angle up to a maximum of 13° significantly reduces the cutting force. 22 5627-5630 - Ground version for significantly better surface quality. Application: 22 5620/5626 - The GM geometry is the first choice for general machining. 22 5621 - The GH geometry is the first choice for roughing applications. 22 5623/5625 - The SIM geometry has a highly positive rake and cuts smoothly. 22 5627-5630 - The GL geometry is suitable for good surface finishes thanks to the ground version and flat cutting edge. Note: Standard application values for a6 = 0.3xD. 22 5620_ST1400 Suitable for/ vc m/min Alu Alu plastics cast c m <%3 > io% si X <500N X X < 750 N <900N X < 1100 N X <1400 N X <55 HRC X < 60 HRC X <65 HRC X <67 HRC X <70 HRC INOX <900 N INOX > 900 N Ti GG(G) > 850 N Uni A A ISO code N N N P H K PR1525- 200 180 160 140 140 160 150 O o PR1535- 160 150 O o PR1510- 50 180 CA6535 - 240 200 40 Type ST1400 GG S O f. mm a 22 5620 WNMU 080608 EN-GM PR1525 15.75 10 0.1 -0.3 a 22 5621 WNMU 080608 EN-GH PR1525 15.75 10 0.2-0.4 a 22 5623 WNMU 080608 EN-SM PR1525 - 15.75 - 10 0.06-0.2 a 22 5625 PR1535 - 15.75 - 10 0.06-0.2 a 22 5626 WNMU 080608 EN-GM PR1510 15.75 10 0.1 -0.3 a 22 5627 PR1510 18.99 10 0.06-0.2 a 22 5628 WNEU 080608 EN-GL CA6535 - 18.99 - 10 0.06-0.1 a 22 5630 PR1525 18.99 10 0.06-0.15 494
