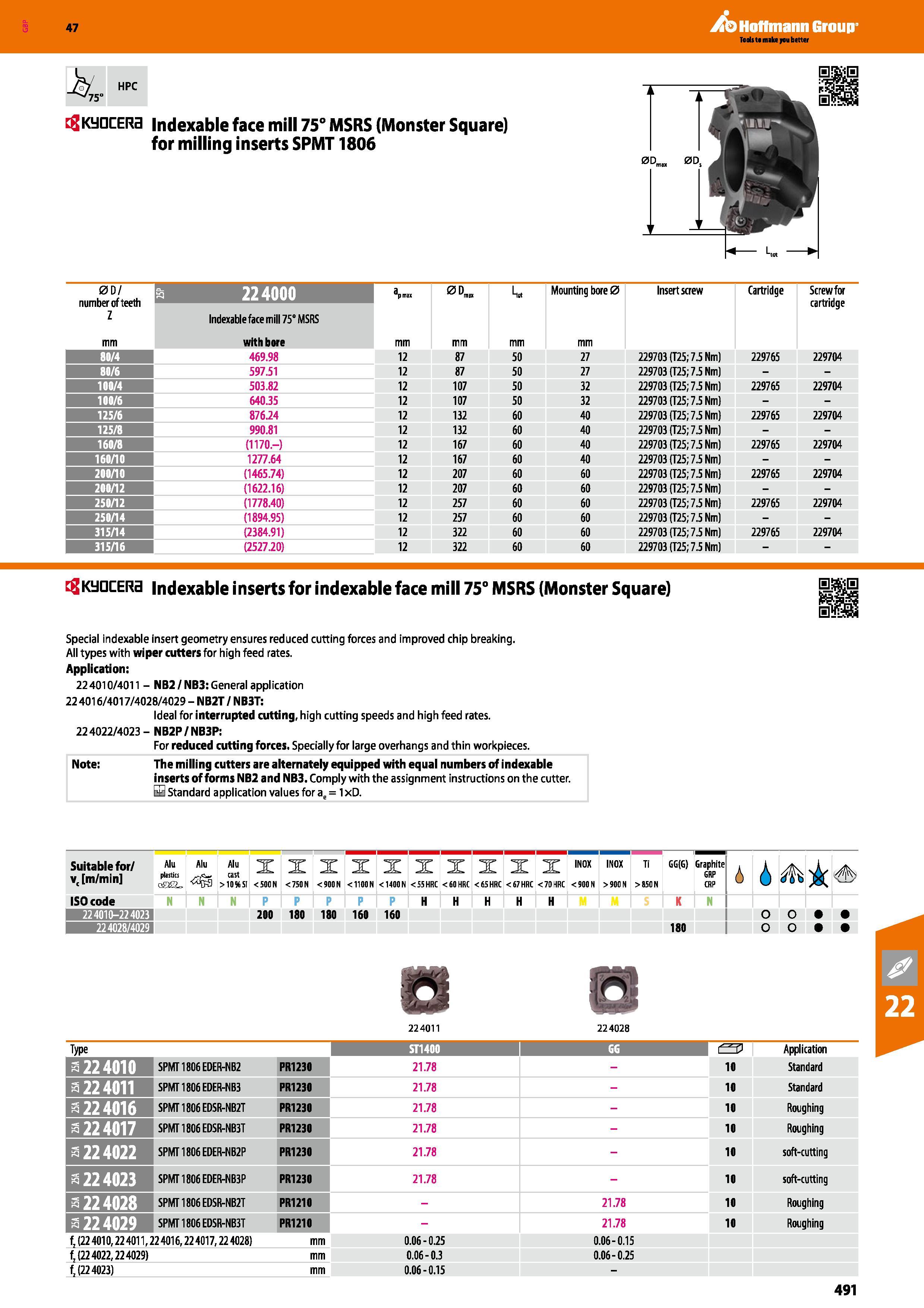

Hoffmann Group 47 £ HPC - 75” flKyQCERa Indexable face mill 75° MSRS (Monster Square) for milling inserts SPMT1806 0D . 001 number of teeth Z a 224000 pmax 00 ma k Mounting bore 0 Insert screw Cartridge Screw for cartridge Indexable face mill 75° MSRS mm with bore mm 80/4 469.98 12 87 50 27 229703 (T25; 7.5 Nm) 229765 229704 80/6 597.51 12 87 50 27 229703 (T25; 7.5 Nm) 100/4 503.82 12 107 50 32 229703 (T25; 7.5 Nm) 229765 229704 100/6 640.35 12 107 50 32 229703 (T25; 7.5 Nm) 125/6 876.24 12 132 60 40 229703 (T25; 7.5 Nm) 229765 229704 125/8 990.81 12 132 60 40 229703 (T25; 7.5 Nm) 160/8 (1170.-) 12 167 60 40 229703 (T25; 7.5 Nm) 229765 229704 160/10 1277.64 12 167 60 40 229703 (T25; 7.5 Nm) 200/10 (1465.74) 12 207 60 60 229703 (T25; 7.5 Nm) 229765 229704 200/12 (1622.16) 12 207 60 60 229703 (T25; 7.5 Nm) 250/12 (1778.40) 12 257 60 60 229703 (T25; 7.5 Nm) 229765 229704 250/14 (1894.95) 12 257 60 60 229703 (T25; 7.5 Nm) 315/14 (2384.91) 12 322 60 60 229703 (T25; 7.5 Nm) 229765 229704 315/16 (2527.20) 12 322 60 60 229703 (T25; 7.5 Nm) tgKtJDCERa Indexable inserts for indexable face mill 75° MSRS (Monster Square) Special indexable insert geometry ensures reduced cutting forces and improved chip breaking. All types with wiper cutters for high feed rates. Application: 224010/4011 - NB2/NB3: General application 22 4016/4017/4028/4029 - NB2T / NB3T: Ideal for interrupted cutting, high cutting speeds and high feed rates. 224022/4023 - NB2P/NB3P: For reduced cutting forces. Specially for large overhangs and thin workpieces. Note: The milling cutters are alternately equipped with equal numbers of indexable inserts of forms NB2 and NB3. Comply with the assignment instructions on the cutter. E0 Standard application values for ae= 1x0. Suitable for/ vc m/min Alu Alu plastics cast os>10%SI X <500N X X < 750 N <900N X < 1100 N X <1400 N X <55 HRC X < 60 HRC X <65 HRC X <67 HRC X <70 HRC INOX <900 N INOX >900N Ti GG(G) >850N Graphite GRP CRP 6 6 ISO code N N N P H K N 224010-224023 200 180 180 160 160 224028/4029 180 224011 224028 Type ST1400 i GG Application a 22 4010 PR1230 21.78 - 10 Standard a 22 4011 PR1230 21.78 - 10 Standard a 22 4016 PR1230 21.78 - 10 Roughing SPMT 1806 EDSR-NB3T PR1230 21.78 - 10 Roughing a 22 4022 PR1230 21.78 - 10 soft-cutting SPMT 1806 EDER-NB3P PR1230 21.78 - 10 soft-cutting a 22 4028 PR1210 - 21.78 10 Roughing a 22 4029 PR1210 - 21.78 10 Roughing f, (224010,224011,224016,224017,22 4028) mm 0.06-0.25 0.06-0.15 f, (22 4022,22 4029) mm 0.06-0.3 0.06-0.25 f, (22 4023) mm 0.06-0.15 - 491
