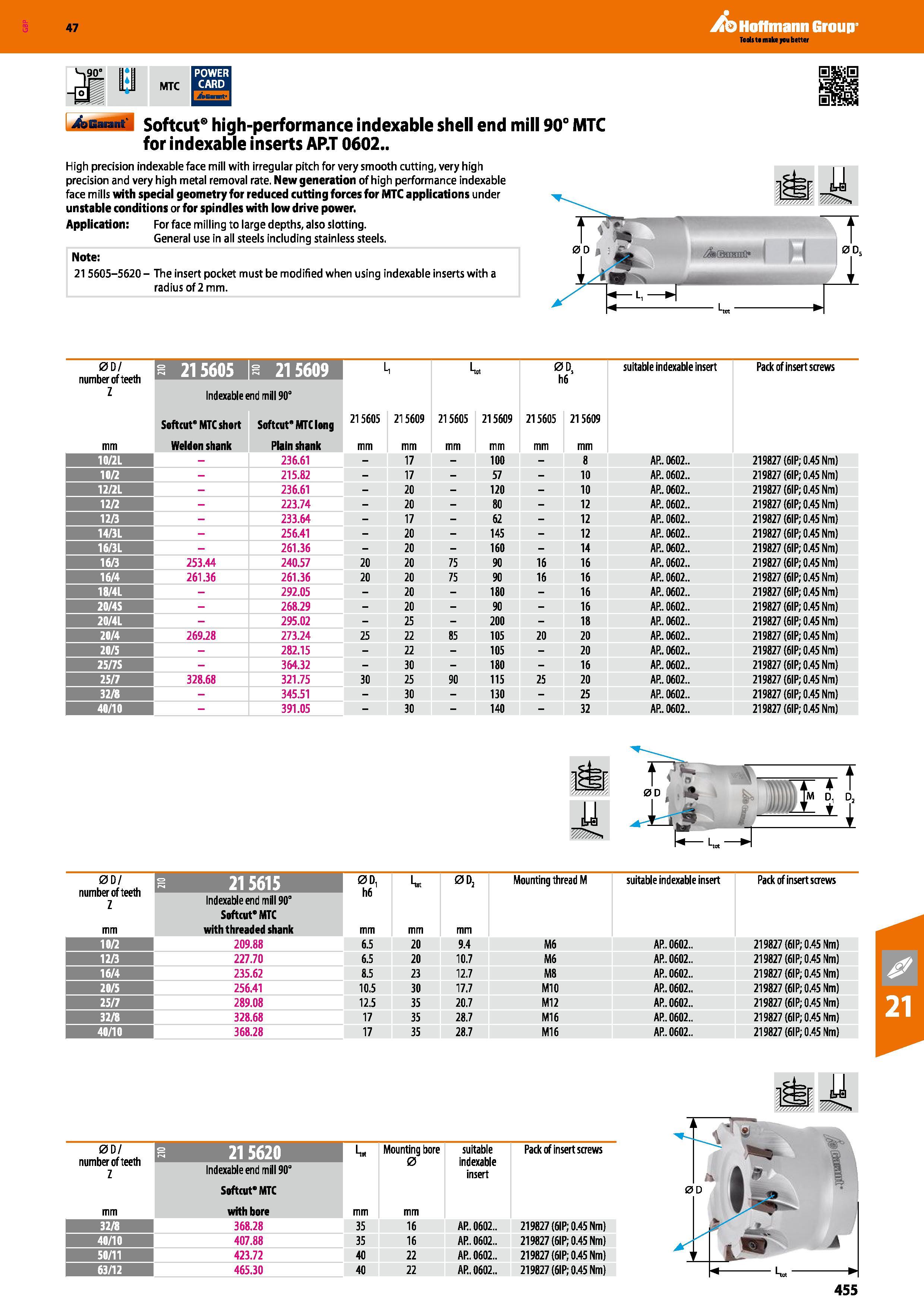

j&JGaiant‘ Softcut8 high-performance indexable shell end mill 90° MTC for indexable inserts AP.T 0602.. High precision indexable face mill with irregular pitch for very smooth cutting, very high precision and very high metal removal rate. New generation of high performance indexable face mills with special geometry for reduced cutting forces for MTC applications under unstable conditions or for spindles with low drive power. Application: For face milling to large depths, also slotting. General use in all steels including stainless steels. Note: 215605-5620 - The insert pocket must be modified when using indexable inserts with a radius of 2 mm. 00/ number of teeth Z mm 215605 L, L, :ot 0D, h6 215605 215609 mm suitable indexable insert Pack of insert screws Indexable end mill 90° Softcut8 MTC short Softcut” MTC long Weldon shank Plain shank 215605 mm 215609 mm 215605 mm 215609 mm 10/2L - 236.61 - 17 - 100 - 8 AP„ 0602.. 219827 (6IP; 0.45 Nm) 10/2 - 215.82 - 17 - 57 - 10 AP.. 0602.. 219827 (6IP; 0.45 Nm) 12/2L - 236.61 - 20 - 120 - 10 AP„ 0602.. 219827 (6IP; 0.45 Nm) 12/2 - 223.74 - 20 - 80 - 12 AP„ 0602.. 219827 (6IP; 0.45 Nm) 12/3 - 233.64 - 17 - 62 - 12 AR. 0602.. 219827 (6IP; 0.45 Nm) 14/3L - 256.41 - 20 - 145 - 12 AR. 0602.. 219827 (6IP; 0.45 Nm) 16/3L - 261.36 - 20 - 160 - 14 AR. 0602.. 219827 (6IP; 0.45 Nm) 16/3 253.44 240.57 20 20 75 90 16 16 AR. 0602.. 219827 (6IP; 0.45 Nm) 16/4 261.36 261.36 20 20 75 90 16 16 AP„ 0602.. 219827 (6IP; 0.45 Nm) 1S/4L - 292.05 - 20 - 180 - 16 AP„ 0602.. 219827 (6IP; 0.45 Nm) 20/45 - 268.29 - 20 - 90 - 16 AR. 0602.. 219827 (6IP; 0.45 Nm) 20/4L - 295.02 - 25 - 200 - 18 AP..0602.. 219827 (6IP; 0.45 Nm) 20/4 269.28 273.24 25 22 85 105 20 20 AP..0602.. 219827 (6IP; 0.45 Nm) 20/5 - 282.15 - 22 - 105 - 20 AR. 0602.. 219827 (6IP; 0.45 Nm) 25/7S - 364.32 - 30 - 180 - 16 AR. 0602.. 219827 (6IP; 0.45 Nm) 25/7 328.68 321.75 30 25 90 115 25 20 AR. 0602.. 219827 (6IP; 0.45 Nm) 32/8 - 345.51 - 30 - 130 - 25 AR. 0602.. 219827 (6IP; 0.45 Nm) 40/10 - 391.05 - 30 - 140 - 32 AR. 0602.. 219827 (6IP; 0.45 Nm) 00/ number of teeth Z s 215615 0D. h6 0D2 Mounting thread M suitable indexable insert Pack of insert screws Indexable end mill 90° Softcut MTC mm with threaded shank mm 10/2 209.88 6.5 20 9.4 M6 AP..0602.. 219827 (6IP; 0.45 Nm) 12/3 227.70 6.5 20 10.7 M6 AP..0602.. 219827 (6IP; 0.45 Nm) 16/4 235.62 8.5 23 12.7 M8 AP..0602.. 219827 (6IP; 0.45 Nm) 20/5 256.41 10.5 30 17.7 M10 AP.. 0602.. 219827 (6IP; 0.45 Nm) 25/7 289.08 12.5 35 20.7 M12 AP.. 0602.. 219827 (6IP; 0.45 Nm) 32/8 328.68 17 35 28.7 M16 AP.. 0602.. 219827 (6IP; 0.45 Nm) 40/10 368.28 17 35 28.7 M16 AP.. 0602.. 219827 (6IP; 0.45 Nm) 0D/ number of teeth Z - 215620 L Mounting bore 0 suitable indexable insert Pack of insert screws Indexable end mill 90° Softcut MTC mm with bore mm 32/8 368.28 35 16 AP.. 0602.. 219827 (6IP; 0.45 Nm) 40/10 407.88 35 16 AP.. 0602.. 219827 (6IP; 0.45 Nm) 50/11 423.72 40 22 AP.. 0602.. 219827 (6IP; 0.45 Nm) 63/12 465.30 40 22 AP.. 0602.. 219827 (6IP; 0.45 Nm)
