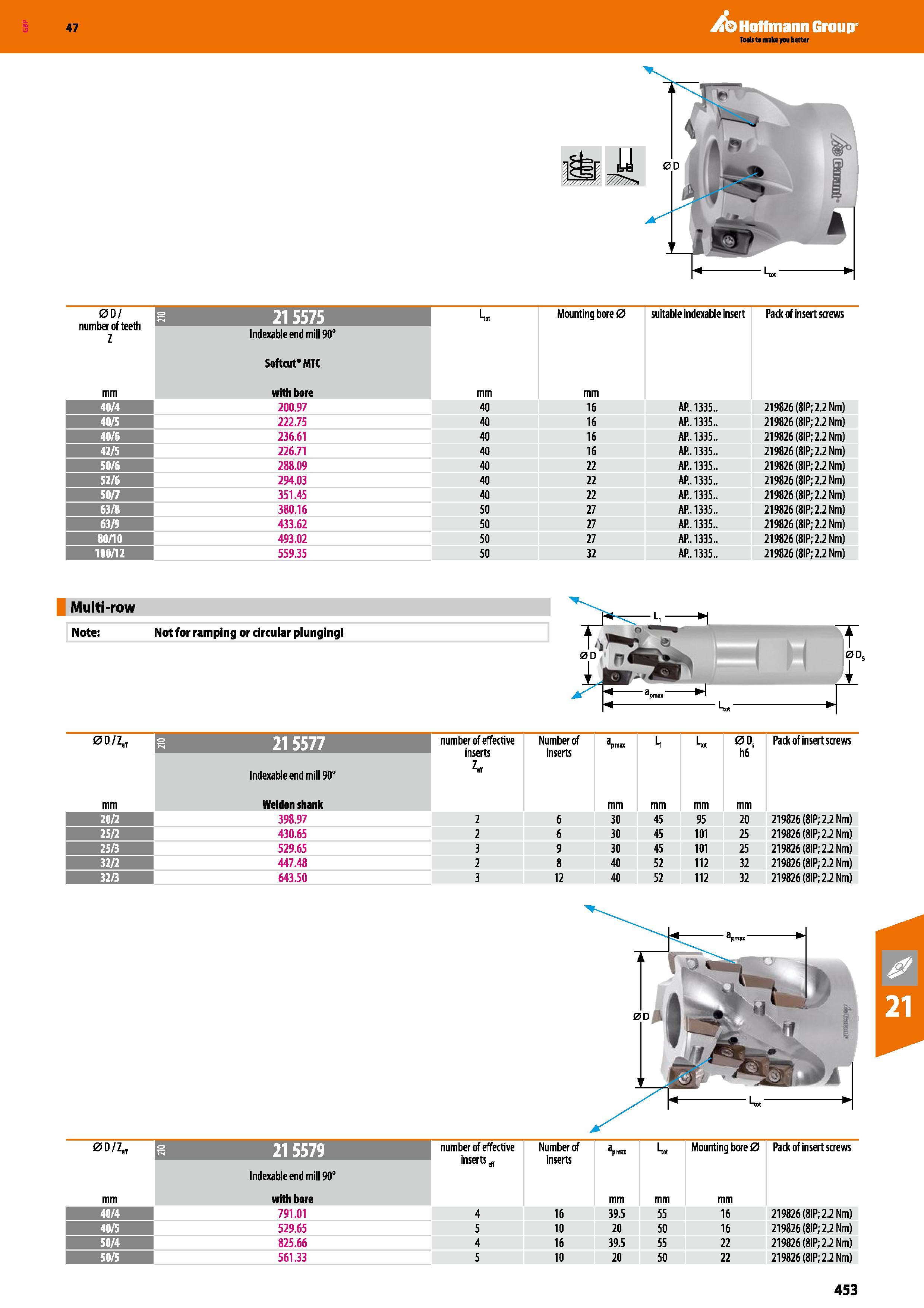

Hoffmann Group 47 I T“ 4A h JV 1 k I -L,n- 00/ number of teeth Z s 215575 L Mounting bore 0 suitable indexable insert Pack of insert screws Indexable end mill 90° Softnit’ MTC mm with bore mm 40/4 200.97 40 16 AR. 1335.. 219826 (8IP; 2.2 Nm) 40/5 222.75 40 16 AR. 1335.. 219826 (8IP; 2.2 Nm) 40/6 236.61 40 16 AR. 1335.. 219826 (8IP; 2.2 Nm) 42/5 226.71 40 16 AR. 1335.. 219826 (8IP; 2.2 Nm) 50/6 288.09 40 22 AP„ 1335.. 219826 (8IP; 2.2 Nm) 52/6 294.03 40 22 AP„ 1335.. 219826 (8IP; 2.2 Nm) 50/7 351.45 40 22 AR. 1335.. 219826 (8IP; 2.2 Nm) 63/8 380.16 50 27 AR. 1335.. 219826 (8IP; 2.2 Nm) 63/9 433.62 50 27 AR. 1335.. 219826 (8IP; 2.2 Nm) 80/10 493.02 50 27 AP„ 1335.. 219826 (8IP; 2.2 Nm) 100/12 559.35 50 32 AR. 1335.. 219826 (8IP; 2.2 Nm) Multi-row Note: Not for ramping or circular plunging 0D/Z,„ s 215577 number of effective inserts \ Number of inserts L, L 0D, h6 Pack of insert screws Indexable end mill 90° mm Weldon shank mm 20/2 398.97 2 6 30 45 95 20 219826 (8IP; 2.2 Nm) 25/2 430.65 2 6 30 45 101 25 219826 (8IP; 2.2 Nm) 25/3 529.65 3 9 30 45 101 25 219826 (8IP; 2.2 Nm) 32/2 447.48 2 8 40 52 112 32 219826 (8IP; 2.2 Nm) 32/3 643.50 3 12 40 52 112 32 219826 (8IP; 2.2 Nm) 0D/Z„r s 215579 number of effective inserts Number of inserts pmax I Mounting bore 0 Pack of insert screws Indexable end mill 90° mm with bore mm 40/4 791.01 4 16 39.5 55 16 219826 (8IP; 2.2 Nm) 40/5 529.65 5 10 20 50 16 219826 (8IP; 2.2 Nm) 50/4 825.66 4 16 39.5 55 22 219826 (8IP; 2.2 Nm) 50/5 561.33 5 10 20 50 22 219826 (8IP; 2.2 Nm) 453
