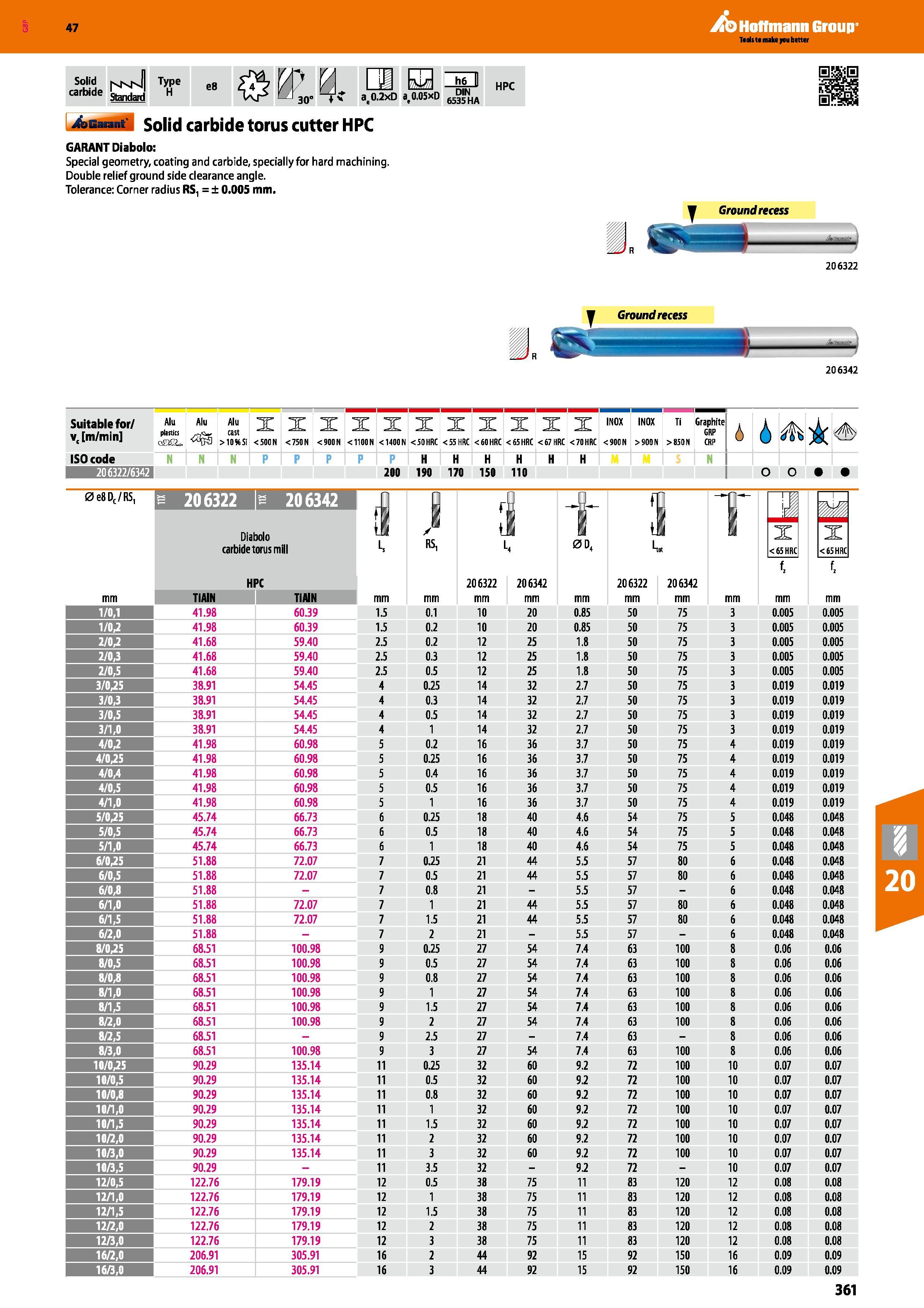

Hoffmann Group 47 an 1.2XD a,0.05xD 65 A HPC Solid carbide torus cutter HPC GARANT Diabolo: Special geometry, coating and carbide, specially for hard machining. Double relief ground side clearance angle. Tolerance: Corner radius RS, = ± 0.005 mm. Ground recess 206322 Ground recess 206342 Suitable for/ Alu 1“ v. m/min <3 X < 500 N X X < 750 N < 900 N X <1100 N X <1400 N X < SO HRC X <55 HRC X <60 HRC X <65 HRC X <67 HRC X <70 HRC INOX <900N IN0X >900N Ti >850N Graphite CRP CRP 4 A 4 ISO code P H N 206322/63421 j 1 200 190 170 150 110 O o 0e8Dc/R5, 206322 206342 Diabolo carbide torus mill ti 0D4 W HPC 206322 206342 206322 206342 f, f, mm TiAIN mm 1/0,1 41.98 60.39 1.5 0.1 10 20 0.85 50 75 3 0.005 0.005 1/0,2 41.98 60.39 1.5 0.2 10 20 0.85 50 75 3 0.005 0.005 2/0,2 41.68 59.40 2.5 0.2 12 25 1.8 50 75 3 0.005 0.005 2/0,3 41.68 59.40 2.5 0.3 12 25 1.8 50 75 3 0.005 0.005 2/0,5 41.68 59.40 2.5 0.5 12 25 1.8 50 75 3 0.005 0.005 3/0,25 38.91 54.45 4 0.25 14 32 2.7 50 75 3 0.019 0.019 3/0,3 38.91 54.45 4 0.3 14 32 2,7 50 75 3 0.019 0.019 3/0,5 38.91 54.45 4 0.5 14 32 2.7 50 75 3 0.019 0.019 3/1,0 38.91 54.45 4 1 14 32 2.7 50 75 3 0.019 0.019 4/0,2 41.98 60.98 5 0.2 16 36 3.7 50 75 4 0.019 0.019 4/0,25 41.98 60.98 5 0.25 16 36 3.7 50 75 4 0.019 0.019 4/0/4 41.98 60.98 5 0.4 16 36 3.7 50 75 4 0.019 0.019 4/0,5 41.98 60.98 5 0.5 16 36 3.7 50 75 4 0.019 0.019 4/1,0 41.98 60.98 5 1 16 36 3.7 50 75 4 0.019 0.019 5/0,25 45.74 66.73 0.25 18 40 4.6 54 75 5 0.048 0.048 5/0,5 45.74 66.73 6 0.5 18 40 4.6 54 75 5 0.048 0.048 5/1,0 45.74 66.73 1 18 40 4.6 54 75 5 0.048 0.048 6/0,25 51.88 72.07 7 0.25 21 44 5,5 57 80 6 0.048 0.048 6/0,5 51.88 72.07 7 0.5 21 44 5.5 57 80 6 0.048 0.048 6/0,8 51.88 7 0.8 21 - 5.5 57 - 6 0.048 0.048 6/1,0 51.88 72.07 7 1 21 44 5.5 57 80 6 0.048 0.048 6/1,5 51.88 72.07 7 1.5 21 44 5.5 57 80 6 0.048 0.048 6/2,0 51.88 7 2 21 - 5.5 57 - 6 0.048 0.048 8/0,25 68.51 100.98 9 0.25 27 54 7,4 63 100 8 0.06 0.06 8/0,5 68.51 100.98 9 0.5 27 54 7.4 63 100 8 0.06 0.06 8/0,8 68.51 100.98 9 0.8 27 54 7.4 63 100 8 0.06 0.06 8/1,0 68.51 100.98 9 1 27 54 7.4 63 100 8 0.06 0.06 8/1,5 68.51 100.98 9 1.5 27 54 7.4 63 100 8 0.06 0.06 8/2,0 68.51 100.98 9 2 27 54 7.4 63 100 8 0.06 0.06 8/2,5 68.51 9 2.5 27 - 7.4 63 - 8 0.06 0.06 8/3,0 68.51 100.98 9 3 27 54 7.4 63 100 8 0.06 0.06 10/0,25 90.29 135.14 11 0.25 32 60 9.2 72 100 10 0.07 0.07 10/0,5 90.29 135.14 11 0.5 32 60 9.2 72 100 10 0.07 0.07 10/0,8 90.29 135.14 11 0.8 32 60 9.2 72 100 10 0.07 0.07 10/1,0 90.29 135.14 11 1 32 60 9,2 72 100 10 0.07 0.07 10/1,5 90.29 135.14 11 1.5 32 60 9.2 72 100 10 0.07 0.07 10/2,0 90.29 135.14 11 2 32 60 9.2 72 100 10 0.07 0.07 10/3,0 90.29 135.14 11 3 32 60 9.2 72 100 10 0.07 0.07 10/3,5 90.29 11 3.5 32 - 9.2 72 - 10 0.07 0.07 12/0,5 122.76 179.19 12 0.5 38 75 11 83 120 12 0.08 0.08 12/1,0 122.76 179.19 12 1 38 75 11 83 120 12 0.08 0.08 12/1,5 122.76 179.19 12 1.5 38 75 11 83 120 12 0.08 0.08 12/2,0 122.76 179.19 12 2 38 75 11 83 120 12 0.08 0.08 12/3,0 122.76 179.19 12 3 38 75 11 83 120 12 0.08 0.08 16/2,0 206.91 305.91 16 2 44 92 15 92 150 16 0.09 0.09 16/3,0 206.91 305.91 16 3 44 92 15 92 150 16 0.09 0.09 361
