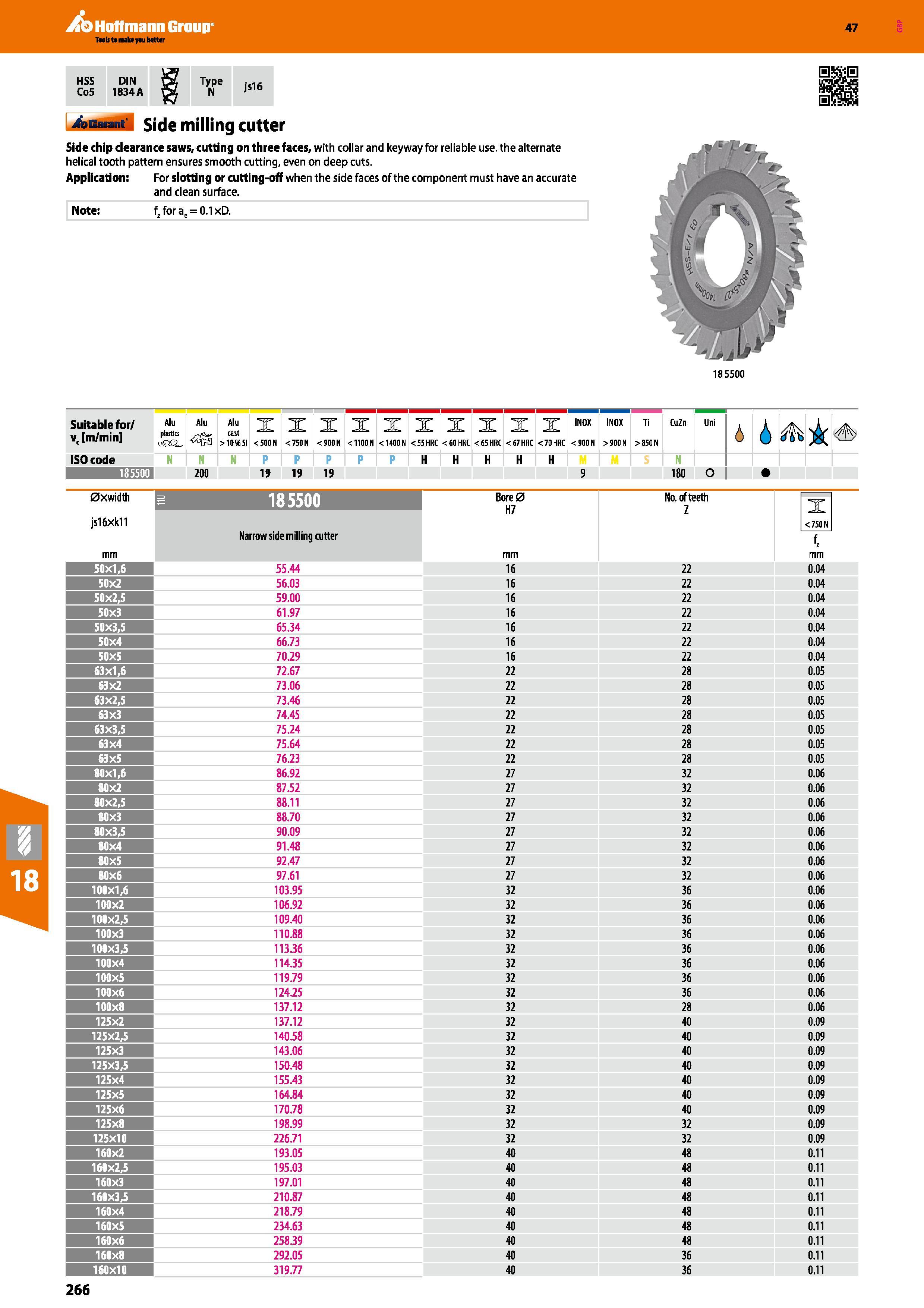

Hoffmann Group 47 4sbu M Side milling cutter Side chip clearance saws, cutting on three faces, with collar and keyway for reliable use. the alternate helical tooth pattern ensures smooth cutting, even on deep cuts. Application: For slotting or cutting-off when the side faces of the component must have an accurate and clean surface. Note: fzforae = 0.1xD. 185500 Suitable for/ vc m/min Alu plastics q££L> Alu cast >10%Sf X <500N X < 750 N X <900N X < 1100 N X < 1400 N X <55 HRC X < 60 HRC X <65 HRC X <67 HRC X <70 HRC INOX <900 N INOX >900N Ti >850N CuZn Uni 6 6 ISO code N bn P H N 185500 200 19 19 19 9 180 O 0xwidth js16xk11 mm = 185500 Bore0 H7 mm Na of teeth Z X < 750 N f, mm Narrow side milling cutter 50x1,6 55.44 16 22 0.04 50x2 56.03 16 22 0.04 50x2,5 59.00 16 22 0.04 50x3 61.97 16 22 0.04 50x3,5 65.34 16 22 0.04 50x4 66.73 16 22 0.04 50x5 70.29 16 22 0.04 63x1,6 72.67 22 28 0.05 63x2 73.06 22 28 0.05 63x2,5 73.46 22 28 0.05 63x3 74.45 22 28 0.05 63x3,5 75.24 22 28 0.05 63x4 75.64 22 28 0.05 63x5 76.23 22 28 0.05 80x1,6 86.92 27 32 0.06 80x2 87.52 27 32 0.06 80x2,5 88.11 27 32 0.06 80x3 88.70 27 32 0.06 80x3,5 90.09 27 32 0.06 80x4 91.48 27 32 0.06 80x5 92.47 27 32 0.06 80x6 97.61 27 32 0.06 100x1,6 103.95 32 36 0.06 100X2 106.92 32 36 0.06 100x2,5 109.40 32 36 0.06 100x3 110.88 32 36 0.06 100x3,5 113.36 32 36 0.06 100x4 114.35 32 36 0.06 100x5 119.79 32 36 0.06 100x6 124.25 32 36 0.06 100x8 137.12 32 28 0.06 125x2 137.12 32 40 0.09 125x2,5 140.58 32 40 0.09 125x3 143.06 32 40 0.09 125x3,5 150.48 32 40 0.09 125x4 155.43 32 40 0.09 125x5 164.84 32 40 0.09 125x6 170.78 32 40 0.09 125x8 198.99 32 32 0.09 125x10 226.71 32 32 0.09 160x2 193.05 40 48 0.11 160x2,5 195.03 40 48 0.11 160x3 197.01 40 48 0.11 160x3,5 210.87 40 48 0.11 160x4 218.79 40 48 0.11 160x5 234.63 40 48 0.11 160x6 258.39 40 48 0.11 160x8 292.05 40 36 0.11 160x10 319.77 40 36 0.11 266
