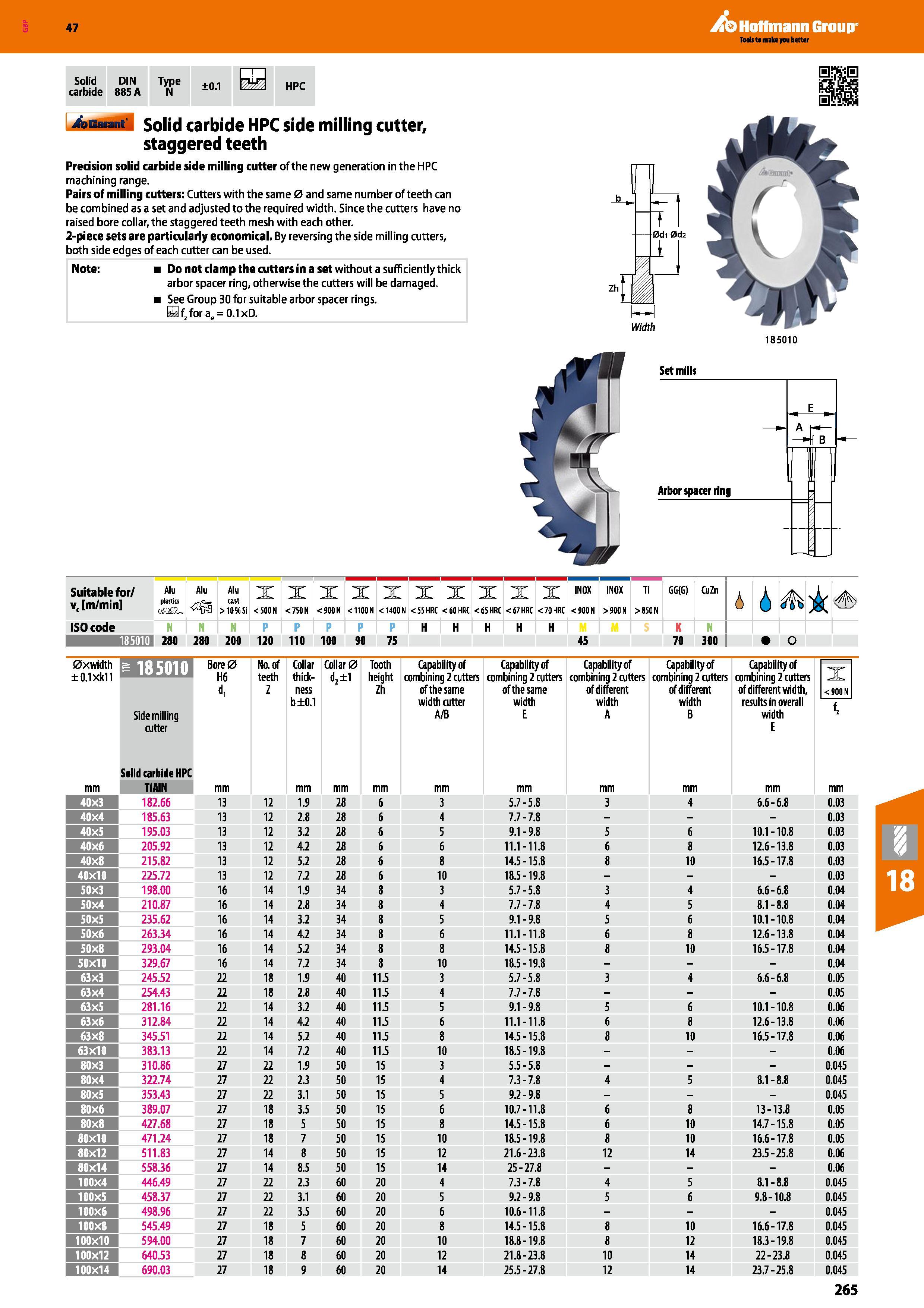

Hoffmann Group 47 Solid DIN carbide 885 A j&Gaiant' Type N ±0.1 WM HPC Solid carbide HPC side milling cutter, staggered teeth Precision solid carbide side milling cutter of the new generation in the HPC machining range. Pairs of milling cutters: Cutters with the same 0 and same number of teeth can be combined as a set and adjusted to the required width. Since the cutters have no raised bore collar, the staggered teeth mesh with each other. 2-piece sets are particularly economical. By reversing the side milling cutters, both side edges of each cutter can be used. Note: Do not clamp the cutters in a set without a sufficiently thick arbor spacer ring, otherwise the cutters will be damaged. See Group 30 for suitable arbor spacer rings. Ef for a„ = 0.1 xD. 1 - 0di 0d2 i ti 185010 Suitable for/ v( m/min Alu plastics Alu cast > 10% Si X < 500 N X < 750 N X < 900 N X < 1100 N X <1400 N X <55 HRC X < 60 HRC X <65 HRC X <67 HRC X <70 HRC INOX <900 N INOX >900 N Ti >850N GG(G) CuZn 6 i ISO code nri N N 1 P H K N 185010 280 280 200 120 110 100 90 75 45 70 300 O 0xwidth ± O.lxkl 1 185010 Side milling cutter Bore0 No. of Collar Collar 0 Tooth Capability of Capability of Capability of Capability of Capability of H6 teeth thick- d2±1 height combining 2 cutters combining 2 cutters combining 2 cutters combining 2 cutters combining 2 cutters d, Z ness Zh of the same ofthesame of different of different of different width, b±0.1 width cutter width width width results in overall A/B E A B width E Solid carbide HPC mm TiAIN mm 40x3 182.66 13 12 1.9 28 6 3 5.7-5.8 3 4 6.6-6.8 0.03 40X4 185.63 13 12 2.8 28 6 4 7.7-7.8 - 0.03 40x5 195.03 13 12 3.2 28 6 5 9.1-9.8 5 6 10.1-10.8 0.03 40x6 205.92 13 12 4.2 28 6 6 11.1-11.8 6 8 12.6-13.8 0.03 40x8 215.82 13 12 5.2 28 6 8 14.5-15.8 8 10 16.5-17.8 0.03 40x10 225.72 13 12 7.2 28 6 10 18.5-19.8 - 0.03 50x3 198.00 16 14 1.9 34 8 3 5.7-5.8 3 4 6.6-6.8 0.04 50X4 210.87 16 14 2.8 34 8 4 7.7-7.8 4 5 8.1-8.8 0.04 50x5 235.62 16 14 3.2 34 8 5 9.1-9.8 5 6 10.1-10.8 0.04 50x6 263.34 16 14 4.2 34 8 6 11.1-11.8 6 8 12.6-13.8 0.04 50x8 293.04 16 14 5.2 34 8 8 14.5-15.8 8 10 16.5-17.8 0.04 50x10 329.67 16 14 7.2 34 8 10 18.5-19.8 - 0.04 63x3 245.52 22 18 1.9 40 11.5 3 5.7-5.8 3 4 6.6-6.8 0.05 63x4 254.43 22 18 2.8 40 11.5 4 7.7-7.8 - 0.05 63x5 281.16 22 14 3.2 40 11.5 5 9.1-9.8 5 6 10.1-10.8 0.06 63x6 312.84 22 14 4.2 40 11.5 6 11.1-11.8 6 8 12.6-13.8 0.06 63x8 345.51 22 14 5.2 40 11.5 8 14.5-15.8 8 10 16.5-17.8 0.06 63x10 383.13 22 14 7.2 40 11.5 10 18.5-19.8 - 0.06 80x3 310.86 27 22 1.9 50 15 3 5.5-5.8 - 0.045 80x4 322.74 27 22 2.3 50 15 4 7.3-7.8 4 5 8.1-8.8 0.045 80x5 353.43 27 22 3.1 50 15 5 9.2-9.8 - 0.045 80x6 389.07 27 18 3.5 50 15 6 10.7-11.8 6 8 13-13.8 0.05 80x8 427.68 27 18 5 50 15 8 14.5-15.8 6 10 14.7-15.8 0.05 80x10 471.24 27 18 7 50 15 10 18.5-19.8 8 10 16.6-17.8 0.05 80x12 511.83 27 14 8 50 15 12 21.6-23.8 12 14 23.5-25.8 0.06 80x14 558.36 27 14 8.5 50 15 14 25 - 27.8 - 0.06 100x4 446.49 27 22 2.3 60 20 4 7.3-7.8 4 5 8.1-8.8 0.045 100x5 458.37 27 22 3.1 60 20 5 9.2-9.8 5 6 9.8-10.8 0.045 100x6 498.96 27 22 3.5 60 20 6 10.6-11.8 - 0.045 100x8 545.49 27 18 5 60 20 8 14.5-15.8 8 10 16.6-17.8 0.045 100x10 594.00 27 18 7 60 20 10 18.8-19.8 8 12 18.3-19.8 0.045 100x12 640.53 27 18 8 60 20 12 21.8-23.8 10 14 22 - 23.8 0.045 100x14 690.03 27 18 9 60 20 14 25.5-27.8 12 14 23.7-25.8 0.045 265
