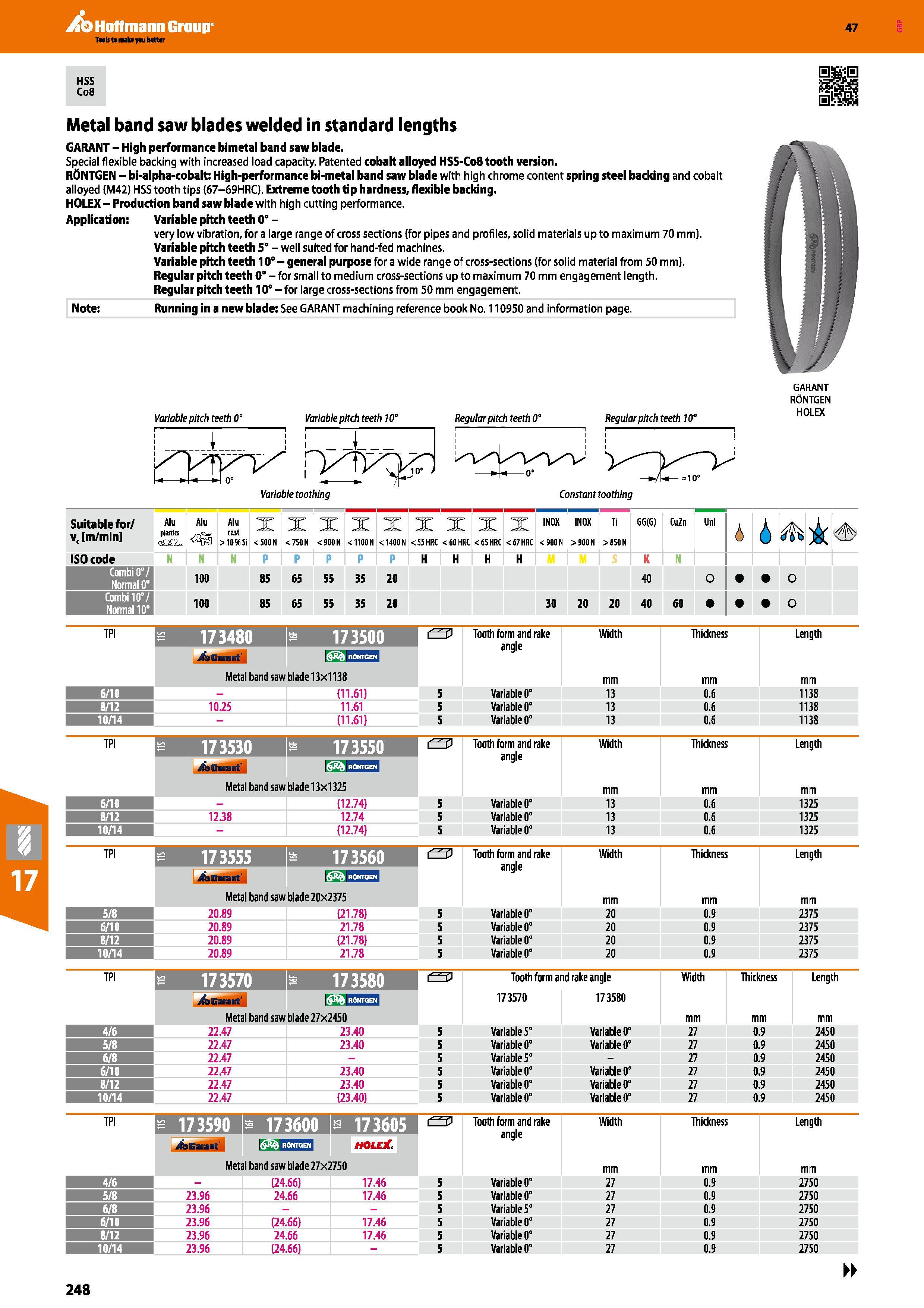

Hoffmann Group 47 HSS C08 Sllll Metal band saw blades welded in standard lengths GARANT - High performance bimetal band saw blade. Special flexible backing with increased load capacity. Patented cobalt alloyed HSS-C08 tooth version. RdNTGEN - bi-alpha-cobalt: High-performance bi-metal band saw blade with high chrome content spring steel backing and cobalt alloyed (M42) HSS tooth tips (67-69HRC). Extreme tooth tip hardness, flexible backing. HOLEX - Production band saw blade with high cutting performance. Application: Variable pitch teeth 0° - very low vibration, for a large range of cross sections (for pipes and profiles, solid materials up to maximum 70 mm). Variable pitch teeth 5° - well suited for hand-fed machines. Variable pitch teeth 10° - general purpose for a wide range of cross-sections (for solid material from 50 mm). Regular pitch teeth 0° - for small to medium cross-sections up to maximum 70 mm engagement length. Regular pitch teeth 10° - for large cross-sections from 50 mm engagement. Note: Running in a new blade: See GARANT machining reference book No. 110950 and information page. Variable pitch teeth 0° Variable pitch teeth 10° Regular pitch teeth 0° Regular pitch teeth 10° Variable toothing Constant toothing Suitable for/ v, m/min Alu Alu plastics si's 13 > 10% Si X < 500 N X < 750 N X 900N Ti >S50N GG(G) CuZn Uni 6 i ISO code NNN P H K Mm 100 85 65 55 35 20 40 O 0 Combi 10°/ Normal 10° 100 85 65 55 35 20 30 20 20 40 60 0 TPI s 173480 173500 0 Tooth form and rake angle Width mm Thickness mm Length mm Metal band saw blade 13x1138 6/10 (11.61) 5 Variable 0° 13 0.6 1138 8/12 10.25 11.61 5 Variable 0° 13 0.6 1138 10/14 (11.61) 5 Variable 0° 13 0.6 1138 TPI e 173530 173550 0 Tooth form and rake angle Width mm Thickness mm Length mm Metal band saw blade 13x1325 6/10 (12.74) 5 Variable 0° 13 0.6 1325 8/12 12.38 12.74 5 Variable 0° 13 0.6 1325 10/14 (12.74) 5 Variable 0° 13 0.6 1325 TPI e 173555 s 173560 S' Tooth form and rake angle Width mm Thickness mm Length mm Metal band saw blade 20x2375 5/8 20.89 (21.78) 5 Variable 0° 20 0.9 2375 6/10 20.89 21.78 5 Variable 0° 20 0.9 2375 8/12 20.89 (21.78) 5 Variable 0° 20 0.9 2375 10/14 20.89 21.78 5 Variable 0° 20 0.9 2375 TPI e 173570 173580 Tooth form and rake angle Width Thickness Length 173570 173580 Metal band saw blade 27x2450 mm 4/6 22.47 23.40 5 Variable 5° Variable 0° 27 0.9 2450 5/8 22.47 23.40 5 Variable 0° Variable 0° 27 0.9 2450 6/8 22.47 - 5 Variable 5° - 27 0.9 2450 6/10 22.47 23.40 5 Variable 0° Variable 0” 27 0.9 2450 8/12 22.47 23.40 5 Variable 0° Variable 0° 27 0.9 2450 10/14 22.47 (23.40) 5 Variable 0° Variable 0° 27 0.9 2450 TPI e 173590 173600 a 173605 Tooth form and rake angle Width Thickness Length HOLE . Metal band saw blade 27x2750 mm 4/6 (24.66) 17.46 5 Variable 0° 27 0.9 2750 5/8 23.96 24.66 17.46 5 Variable 0° 27 0.9 2750 6/8 23.96 - 5 Variable 5° 27 0.9 2750 6/10 23.96 (24.66) 17.46 5 Variable 0° 27 0.9 2750 8/12 23.96 24.66 17.46 5 Variable 0° 27 0.9 2750 10/14 23.96 (24.66) - 5 Variable 0° 27 0.9 2750 248
