245 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.245

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 245 0245 ENG Lab2u

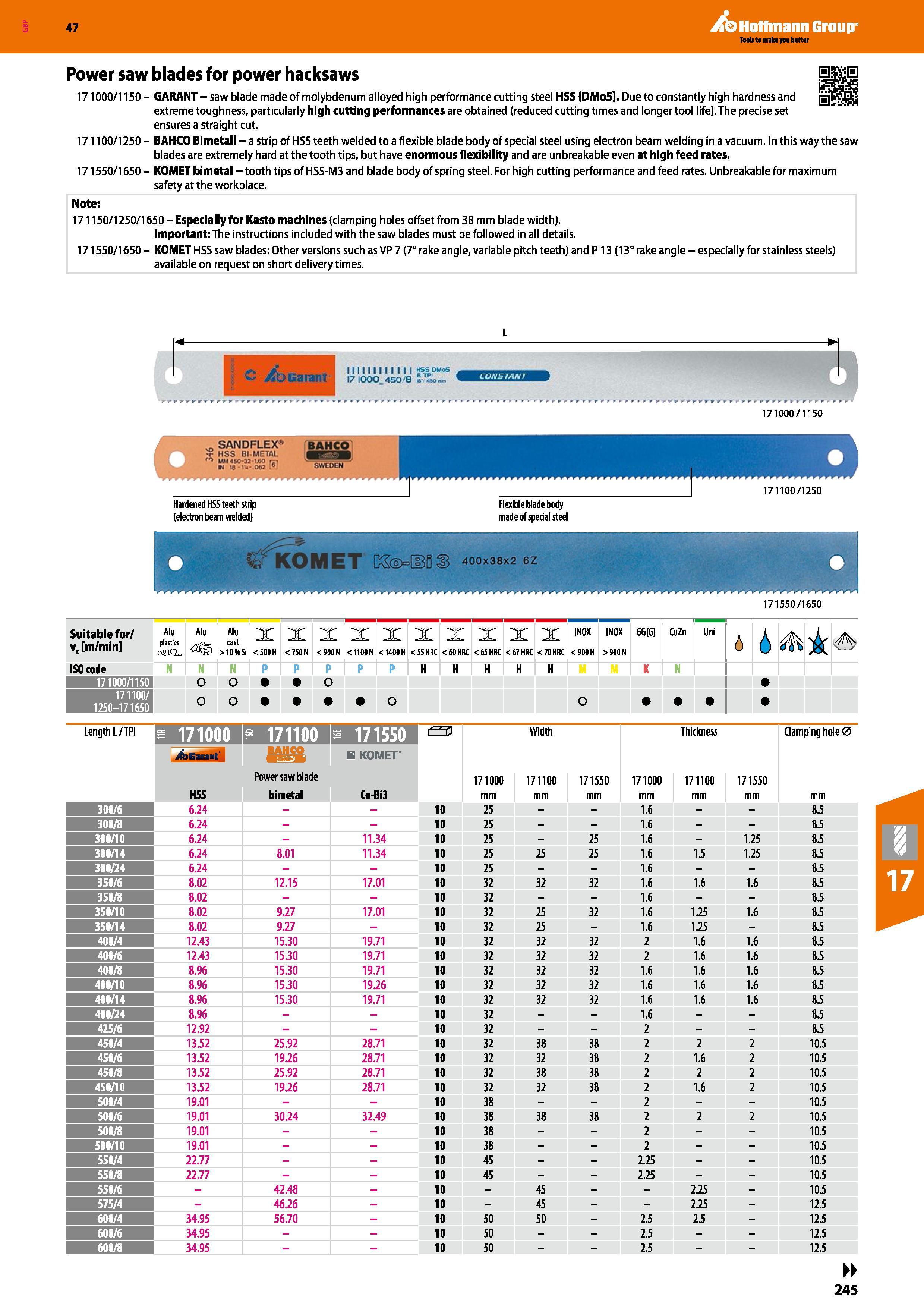

47 Power saw blades for power hacksaws 171000/1 ISO - GARANT - saw blade made of molybdenum alloyed high performance cutting steel HSS(DMo5). Due to constantly high hardness and extreme toughness, particularly high cutting performances are obtained (reduced cutting times and longer tool life). The precise set ensures a straight cut. 171100/1250 - BAHCO Bimetall - a strip of HSS teeth welded to a flexible blade body of special steel using electron beam welding in a vacuum. In this way the saw blades are extremely hard at the tooth tips, but have enormous flexibility and are unbreakable even at high feed rates. 171550/1650 - KOMET bimetal - tooth tips of HSS-M3 and blade body of spring steel. For high cutting performance and feed rates. Unbreakable for maximum safety at the workplace. Note: 171150/1250/1650 - Especially for Kasto machines (clamping holes offset from 38 mm blade width). Important:The instructions included with the saw blades must be followed in all details. 171550/1650- KOMET HSS saw blades: Other versions such as VP 7 (7° rake angle, variable pitch teeth) and P13 (13° rake angle - especially for stainless steels) available on request on short delivery times. Hoffmann Group Tools to main you better 171000/1150 SANDFLEX" -f HSS BI METAL l'° MM4M-32-1AO in m -1 .- Oft BAHCO 171100/1250 Hardened HSS teeth strip (electron beam welded) Flexible blade body made of special steel KOMET C3 4 30 171550/1650 Suitable for/ v( m/min Alu plastics Q D£L, Alu cast >10% Si X < 500 N X < 750 N X < 900 N X < 1100 N X < 1400 N X <55 HRC X <60 HRC X <65 HRC X <67 HRC X <70 HRC INOX <900N INOX > 900 N GGIG) CuZn Uni 6 i ISO code nri N Mm P H K nri 171000/1150 O 171100/ 1250-171650 O o Length L/TPI i 171100 171550 S) Width Thickness Clamping hole 0 ifblarfl BAHCO E KOMET Power saw blade 171000 171100 171550 171000 171100 171550 HSS bimetal Co-Bi3 mm 300/6 6.24 10 25 1.6 8.5 300/8 6.24 10 25 1.6 8.5 300/10 6.24 - 11.34 10 25 - 25 1.6 - 1.25 8.5 300/14 6.24 8.01 11.34 10 25 25 25 1.6 1.5 1.25 8.5 300/24 6.24 10 25 1.6 8.5 350/6 8.02 12.15 17.01 10 32 32 32 1.6 1.6 1.6 8.5 350/8 8.02 10 32 1.6 8.5 350/10 8.02 9.27 17.01 10 32 25 32 1.6 1.25 1.6 8.5 350/14 8.02 9.27 - 10 32 25 - 1.6 1.25 - 8.5 400/4 12.43 15.30 19.71 10 32 32 32 2 1.6 1.6 8.5 400/6 12.43 15.30 19.71 10 32 32 32 2 1.6 1.6 8.5 400/8 8.96 15.30 19.71 10 32 32 32 1.6 1.6 1.6 8.5 400/10 8.96 15.30 19.26 10 32 32 32 1.6 1.6 1.6 8.5 400/14 8.96 15.30 19.71 10 32 32 32 1.6 1.6 1.6 8.5 400/24 8.96 10 32 1.6 8.5 425/6 12.92 10 32 2 8.5 450/4 13.52 25.92 28.71 10 32 38 38 2 2 2 10.5 450/6 13.52 19.26 28.71 10 32 32 38 2 1.6 2 10.5 450/8 13.52 25.92 28.71 10 32 38 38 2 2 2 10.5 450/10 13.52 19.26 28.71 10 32 32 38 2 1.6 2 10.5 500/4 19.01 10 38 2 10.5 500/6 19.01 30.24 32.49 10 38 38 38 2 2 2 10.5 500/8 19.01 10 38 2 10.5 500/10 19.01 10 38 2 10.5 550/4 22.77 10 45 2.25 10.5 550/8 22.77 10 45 2.25 10.5 550/6 - 42.48 - 10 - 45 2.25 - 10.5 575/4 - 46.26 - 10 - 45 2.25 - 12.5 600/4 34.95 56.70 - 10 50 50 - 2.5 2.5 - 12.5 600/6 34.95 10 50 2.5 12.5 600/8 34.95 10 50 2.5 12.5 245
