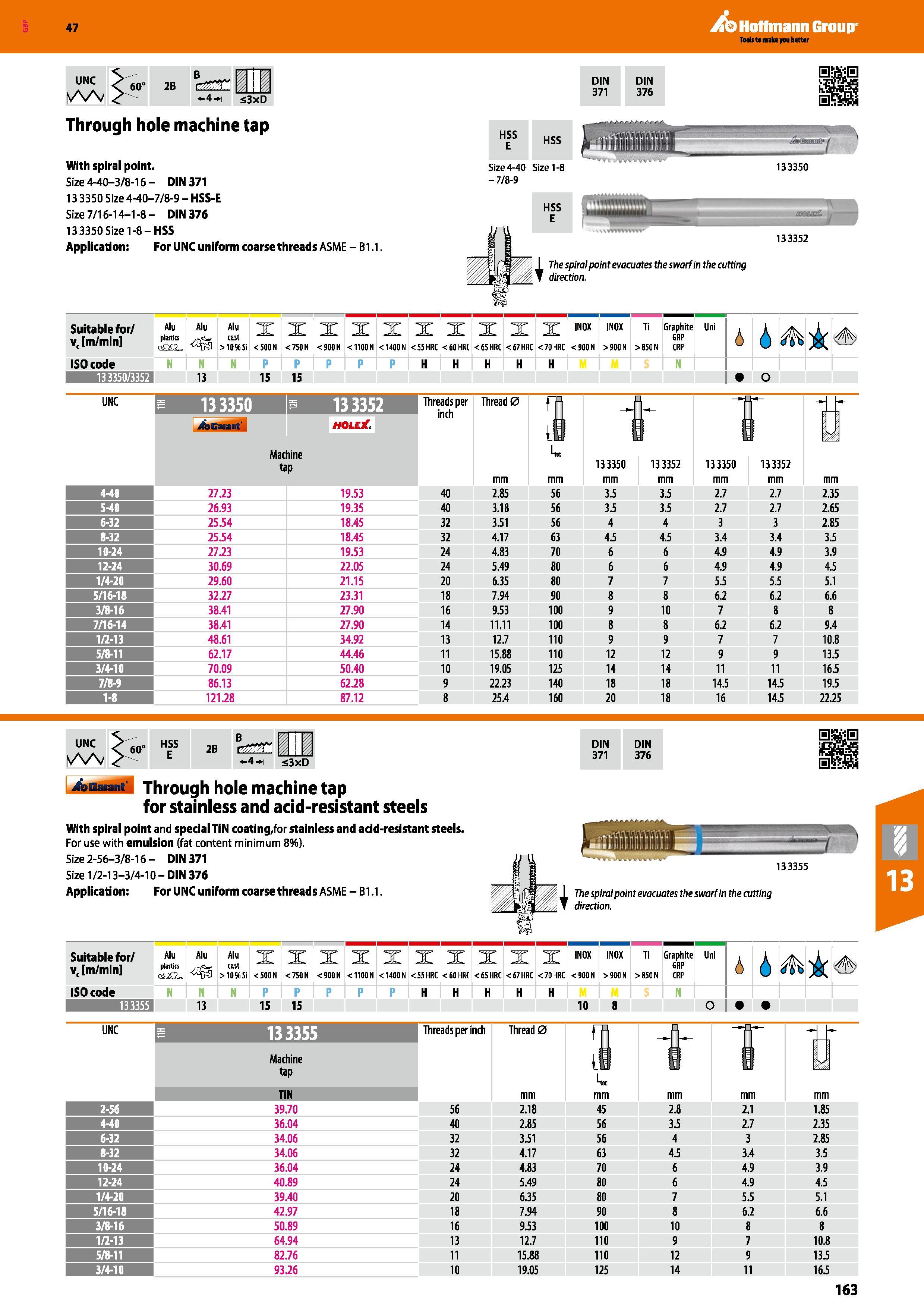

Hoffmann Group 47 2B r j 1-4-4- i 3xD Through hole machine tap With spiral point. Size 4-40-3/8-16- DIN 371 13 3350 Size 4-40-7/8-9 - HSS-E Size 7/16-14-1-8- DIN 376 13 3350 Size 1-8-HSS Application: For UNC uniform coarse threads ASME B1.1. DIN DIN 371 376 HSS E HSS Size 4-40 Size 1-8 - 7/8-9 133350 133352 I The spiral point evacuates the swarf in the cutting " direction. Suitable for/ Alu Alu v( m/min >i s X < 500 N X X < 750 N < 900 N X 900 N Ti >850N Graphite GRP CRP Uni 6 i A: ISO code P H N 133350/33521 15 15 o UNC 13 3350 i&Gannt' 133352 HOLEjC. Threads per Thread 0 f P inch Machine tap mm Lt mm 133350 mm 133352 mm 133350 mm 133352 mm 4-40 27.23 19.53 40 2.85 56 3.5 3.5 2.7 2.7 2.35 5-40 26.93 19.35 40 3.18 56 3.5 3.5 2.7 2.7 2.65 6-32 25.54 18.45 32 3.51 56 4 4 3 3 2.85 8-32 25.54 18.45 32 4.17 63 4.5 4.5 3.4 3.4 3.5 10-24 27.23 19.53 24 4.83 70 6 6 4.9 4.9 3.9 12-24 30.69 22.05 24 5.49 80 6 6 4.9 4.9 4.5 1/4-20 29.60 21.15 20 6.35 80 7 7 5.5 5.5 5.1 5/16-18 32.27 23.31 18 7.94 90 8 8 6.2 6.2 6.6 3/8-16 38.41 27.90 16 9.53 100 9 10 7 8 8 7/16-14 38.41 27.90 14 11.11 100 8 8 6.2 6.2 9.4 1/2-13 48.61 34.92 13 12.7 110 9 9 7 7 10.8 5/8-11 62.17 44.46 11 15.88 110 12 12 9 9 13.5 3/4-10 70.09 50.40 10 19.05 125 14 14 11 11 16.5 7/8-9 86.13 62.28 9 22.23 140 18 18 14.5 14.5 19.5 1-8 121.28 87.12 8 25.4 160 20 18 16 14.5 22.25 UNC <>60° HfSS 3R 1 1 i 4 i <3xD DIN DIN 371 376 4tfiannt' Through hole machine tap for stainless and acid-resistant steels With spiral point and special TiN coating,for stainless and acid-resistant steels. For use with emulsion (fat content minimum 8%). Size 2-56-3/8-16- DIN 371 Size 1/2-13-3/4-10- DIN 376 Application: For UNC uniform coarse threads ASME - B1.1. 133355 I The spiral point evacuates the swarf in the cutting T direction. Suitable for/ Alu Alu v. m/min <3 X <500N X X < 750 N <900N X < 1100 N X <1400 N X <55 HRC X <60 HRC X <65 HRC X <67 HRC X <70 HRC INOX <900 N INOX > 900 N Ti > 850 N Graphite GRP CRP Uni 6 6 ISO code P H nn 1 133355 I 15 15 10 8 O UNC h 133355 Threads per inch Thread 0 Pi Machine tap r Lt 1 mm 39.70 56 2.18 45 2.8 2.1 36.04 40 2.85 56 3.5 2.7 34.06 32 3.51 56 4 3 34.06 32 4.17 63 4.5 3.4 36.04 24 4.83 70 6 4.9 40.89 24 5.49 80 6 4.9 39.40 20 6.35 80 7 5.5 42.97 18 7.94 90 8 6.2 50.89 16 9.53 100 10 8 64.94 13 12.7 110 9 7 82.76 11 15.88 110 12 9 93.26 10 19.05 125 14 11 mm 1.85 2.35 2.85 3.5 3.9 4.5 5.1 6.6 8 10.8 13.5 16.5 163
