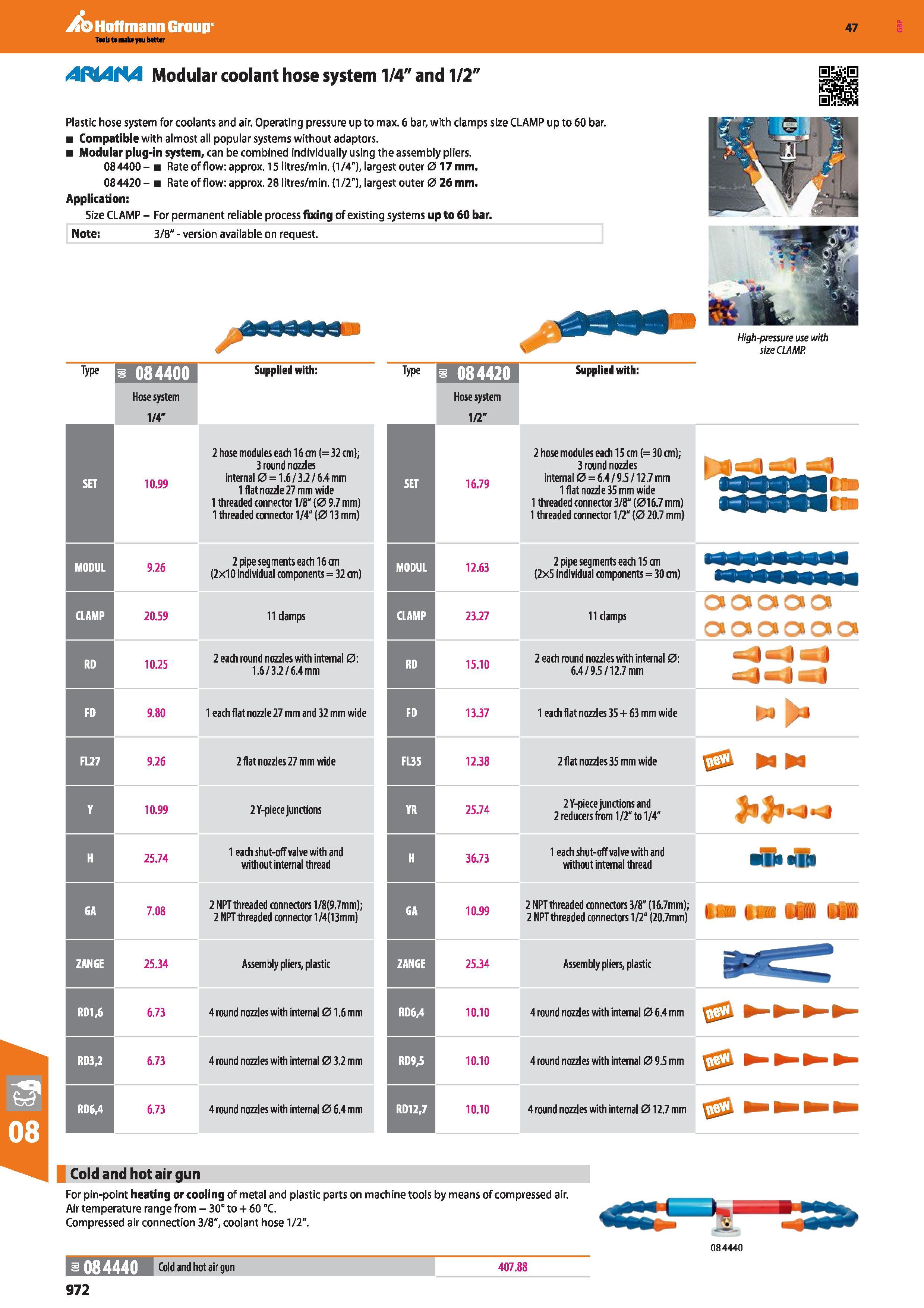

Hoffmann Group 47 4RI4CU Modular coolant hose system 1/4" and 1/2" Plastic hose system for coolants and air. Operating pressure up to max. 6 bar, with clamps size CLAMP up to 60 bar. Compatible with almost all popular systems without adaptors. Modular plug-in system, can be combined individually using the assembly pliers. 084400- Rateofflow: approx. 15 litres/min. (1/4"), largest outer 0 17mm. 084420 - Rate of flow: approx. 28 litres/min. (1/2"), largest outer 0 26 mm. Application: Size CLAMP - For permanent reliable process fixing of existing systems upto 60 bar. Note: 3/8" - version available on request. m High-pressure use with size CLAMP. Type i 084400 Supplied with: Hose system 1/4" SET 10.99 2 hose modules each 16 cm (= 32 cm); 3 round nozzles internal 0 = 1.6/ 3.2/ 6.4 mm 1 flat nozzle 27 mm wide 1 threaded connector 1/8" (0 9.7 mm) 1 threaded connector 1/4“ (013 mm) M0DUL 9.26 2 pipe segments each 16 cm (2x10 individual components = 32 cm) CLAMP 20.59 11 damps 10.25 2 each round nozzles with internal 0: 1.6/3.2/6.4mm FD 9.80 1 each flat nozzle 27 mm and 32 mm wide FL27 9.26 2flatnozzles27mmwide 10.99 2 Y-piece junctions 25.74 1 each shut-off valve with and without internal thread GA 7.08 2 NPT threaded connectors 1/8(9.7mm); 2 NPT threaded connector 1/4(13mm) 2ANGE 25.34 Assembly pliers, plastic RD1,6 6.73 4 round nozzles with internal 01.6 mm RD3,2 6.73 4 round nozzles with internal 0 3.2 mm RD6,4 6.73 4 round nozzles with internal 0 6.4 mm Type 84420 Supplied with: SET 16.79 2 hose modules each 15 cm (= 30 cm); 3 round nozzles internal 0 = 6.4 / 9.5 /12.7 mm 1 flat nozzle 35 mm wide 1 threaded connector 3/8" (016.7 mm) 1 threaded connector 1/2“ (0 20.7 mm) fegsagssa =3 M0DUL 12.63 2 pipe segments each 15 cm (2x5 individual components=30 cm) CLAMP 23.27 11 clamps ODOOCi Ol 0 00 0 0 15.10 2 each round nozzles with internal 0: 6.4/9.5/12.7 mm FD 13.37 1 each flat nozzles 35 + 63 mm wide FL35 12.38 2 flat nozzles 35 mm wide to to YR 25.74 2 Y-piece junctions and 2 reducers from 1/2“ to 1/4“ 36.73 1 each shut-off valve with and without internal thread min aid GA 10.99 2 NPT threaded connectors 3/8" (16.7mm); 2 NPT threaded connectors 1/2“ (20.7mm) m m 2ANGE 25.34 Assembly pliers, plastic RD6,4 10.10 4 round nozzles with internal 0 6.4 mm RD9.5 10.10 4 round nozzles with internal 0 9.5 mm RD12,7 10.10 4 round nozzles with internal 012.7 mm Cold and hot air gun For pin-point heating or cooling of metal and plastic parts on machine tools by means of compressed air. Air temperature range from - 30° to + 60 °C. Compressed air connection 3/8", coolant hose 1/2". 084440 I 972 084440 Cold and hot air gun 407.88
