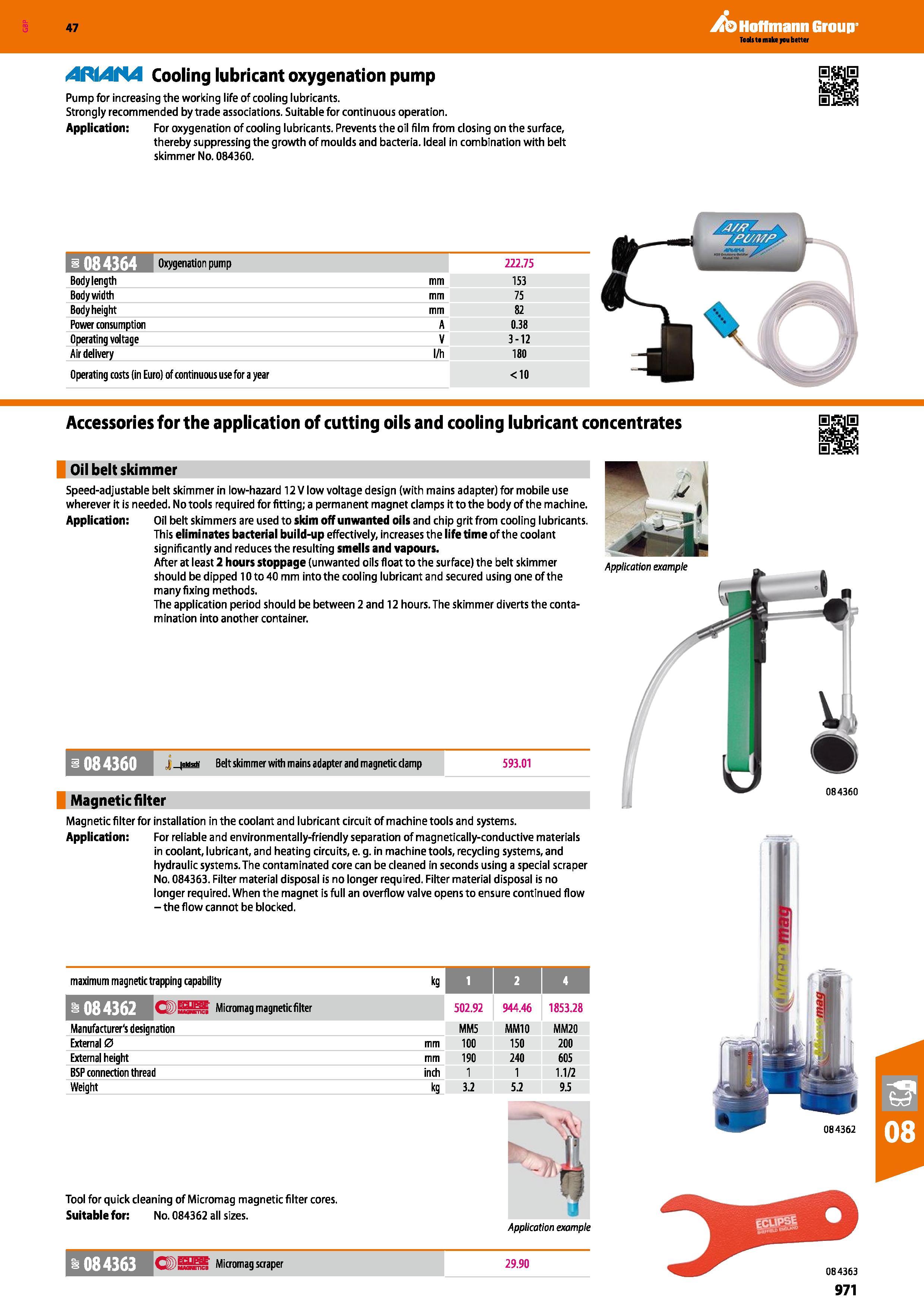

Hoffmann Group 47 AfKiAtiA Cooling lubricant oxygenation pump Pump for increasing the working life of cooling lubricants. Strongly recommended by trade associations. Suitable for continuous operation. Application: For oxygenation of cooling lubricants. Prevents the oil film from closing on the surface, thereby suppressing the growth of moulds and bacteria. Ideal in combination with belt skimmer No. 084360. Oxygenation pump Body length Body width Body height Power consumption a 084364 Operating voltage Air delivery Operating costs (in Euro) of continuous use for a year Accessories for the application of cutting oils and cooling lubricant concentrates Oil belt skimmer Speed-adjustable belt skimmer in low-hazard 12 V low voltage design (with mains adapter) for mobile use wherever it is needed. No tools required for fitting; a permanent magnet clamps it to the body of the machine. Application: Oil belt skimmers are used to skim off unwanted oils and chip grit from cooling lubricants. This eliminates bacterial build-up effectively, increases the life time of the coolant significantly and reduces the resulting smells and vapours. After at least 2 hours stoppage (unwanted oils float to the surface) the belt skimmer should be dipped 10 to 40 mm into the cooling lubricant and secured using one of the many fixing methods. The application period should be between 2 and 12 hours. The skimmer diverts the contamination into another container. 1 084360 j oidsdi Belt skimmer with mains adapter and magnetic damp 593.01 Magnetic filter Magnetic filter for installation in the coolant and lubricant circuit of machine tools and systems. Application: For reliable and environmentally-friendly separation of magnetically-conductive materials in coolant, lubricant, and heating circuits, e. g. in machine tools, recycling systems, and hydraulic systems. The contaminated core can be cleaned in seconds using a special scraper No. 084363. Filter material disposal is no longer required. Filter material disposal is no longer required. When the magnet is full an overflow valve opens to ensure continued flow - the flow cannot be blocked. maximum magnetic trapping capability Micromag magnetic filter Manufacturer's designation External 0 External height BSP connection thread Weight mm inch kg 1 2 4 502.92 944.46 1853.28 MM5 MM10 MM20 100 150 200 190 240 605 1 1 1.1/2 3.2 5.2 9.5 Tool for quick cleaning of Micromag magnetic filter cores. Suitable for: No. 084362 all sizes. Application example 084363 C mS Micromag scraper 29.90 084362 Application example
