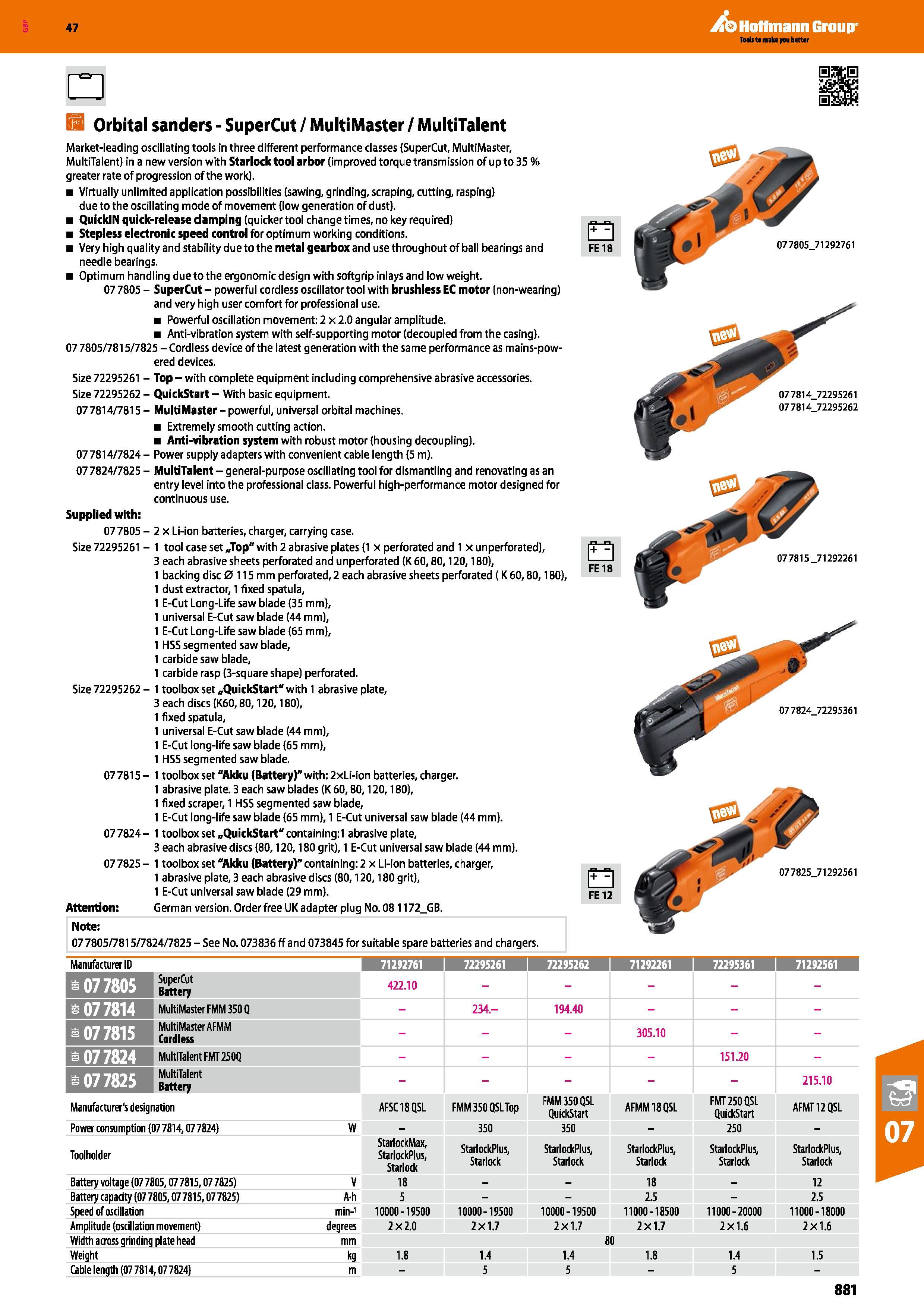

Hoffmann Group 47 H Orbital sanders - SuperCut / MultiMaster / MultiTalent Market-leading oscillating tools in three different performance classes (SuperCut, MultiMaster, MultiTalent) in a new version with Starlock tool arbor (improved torque transmission of up to 35 % greater rate of progression of the work). Virtually unlimited application possibilities (sawing, grinding, scraping, cutting, rasping) due to the oscillating mode of movement (low generation of dust). QuickIN quick-release clamping (quicker tool change times, no key required) Stepless electronic speed control for optimum working conditions. I+ l Very high quality and stability due to the metal gearbox and use throughout of ball bearings and FE18 needle bearings. Optimum handling due to the ergonomic design with softgrip inlays and low weight. 07 7805 - SuperCut - powerful cordless oscillator tool with brushless EC motor (non-wearing) and very high user comfort for professional use. Powerful oscillation movement: 2 x 2.0 angular amplitude. Anti-vibration system with self-supporting motor (decoupled from the casing). 07 7805/7815/7825 - Cordless device of the latest generation with the same performance as mains-pow- ered devices. Size 72295261 - Top-with complete equipment including comprehensive abrasive accessories. Size 72295262 - QuickStart - With basic equipment. 07 7814/7815 - MultiMaster - powerful, universal orbital machines. Extremely smooth cutting action. Anti-vibration system with robust motor (housing decoupling). 07 7814/7824 - Power supply adapters with convenient cable length (5 m). 077824/7825 - MultiTalent - general-purpose oscillating tool for dismantling and renovating as an entry level into the professional class. Powerful high-performance motor designed for continuous use. Supplied with: 077805 - 2 x Li-ion batteries, charger, carrying case. Size 72295261 - 1 tool case set „Top" with 2 abrasive plates (1 x perforated and 1 x unperforated , 3 each abrasive sheets perforated and unperforated (K 60,80,120,180), 1 backing disc 0 115 mm perforated, 2 each abrasive sheets perforated (K 60,80,180), 1 dust extractor, 1 fixed spatula, 1 E-Cut Long-Life saw blade (35 mm), 1 universal E-Cut saw blade (44 mm), 1 E-Cut Long-Life saw blade (65 mm), 1 HSS segmented saw blade, 1 carbide saw blade, 1 carbide rasp (3-square shape) perforated. Size 72295262 - 1 toolbox set „QuickStart" with 1 abrasive plate, 3 each discs (K60,80,120,180), 1 fixed spatula, 1 universal E-Cut saw blade (44 mm), 1 E-Cut long-life saw blade (65 mm), 1 HSS segmented saw blade. 07 7815 - 1 toolbox set "Akku (Battery)" with: 2xLi-ion batteries, charger. 1 abrasive plate. 3 each saw blades (K 60,80,120,180), 1 fixed scraper, 1 HSS segmented saw blade, 1 E-Cut long-life saw blade (65 mm), 1 E-Cut universal saw blade (44 mm). 077824- 1 toolbox set „QuickStart"containing:1 abrasive plate, 3 each abrasive discs (80,120,180 grit), 1 E-Cut universal saw blade (44 mm). 077825- 1 toolbox set "Akku (Battery)" containing: 2 x Li-ion batteries, charger, _ 1 abrasive plate, 3 each abrasive discs (80,120,180 grit), 1 E-Cut universal saw blade (29 mm). PE Attention: German version. Order free UK adapter plug No. 081172_GB. Note: 077805/7815/7824/7825 - See No. 073836 ff and 073845 for suitable spare batteries and chargers. £3 FE 18 077805_71292761 Manufacturer ID 71292761 i 72295261 I 72295262 I 71292261 72295361 : 71292561 1 07 7805 SuperCut Battery 422.10 07 7814 MultiMaster FMM 350 Q - 234.- 194.40 s 07 7815 MultiMaster AFMM Cordless 305.10 07 7824 MultiTalent FMT250Q - 151.20 - 07 7825 MultiTalent Battery 215.10 Manufacturer's designation AFSC18QSL FMM 350 QSL Top FMM 350 QSL QuickStart AFMM 18 QSL FMT250QSL QuickStart AFMT12QSL Power consumption (07 7814,07 7824) W - 350 350 - 250 - Toolholder StarlockMax, StarlockPlus, Starlock StarlockPlus, Starlock StarlockPlus, Starlock StarlockPlus, Starlock StarlockPlus, Starlock StarlockPlus, Starlock Battery voltage (07 7805,07 7815,07 7825) V 18 18 - 12 Battery capacity (07 7805,07 7815,07 7825) A-h 5 2.5 - 2.5 Speed of oscillation min-1 10000-19500 10000-19500 10000-19500 11000-18500 11000-20000 11000-18000 Amplitude (oscillation movement) degrees 2x2.0 2x1.7 2x1.7 2x1.7 2x1.6 2x1.6 Width across grinding plate head mm 80 Weight kg 1.8 1.4 1.4 1.8 1.4 1.5 Cable length (07 7814,07 7824) m - 5 5 - 5 - 07 7814_72295261 07 7814_72295262 07 7815 _71292261 07 7824_72295361 077825_71292561 881
