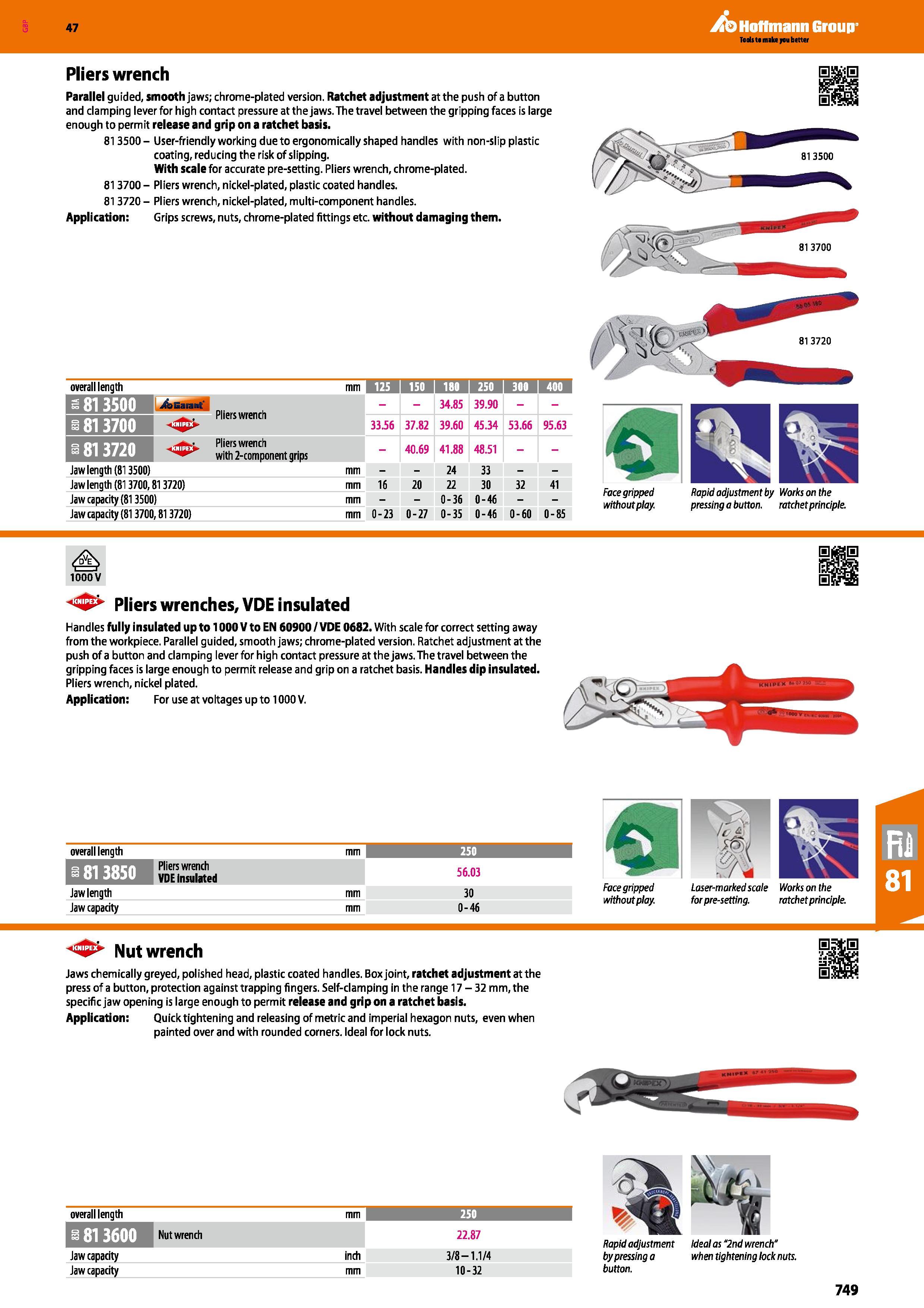

749 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.749

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 749 0749 ENG Lab2u

Hoffmann Group 47 Pliers wrench Parallel guided, smooth jaws; chrome-plated version. Ratchet adjustment at the push of a button and clamping lever for high contact pressure at the jaws. The travel between the gripping faces is large enough to permit release and grip on a ratchet basis. 813500 - User-friendly working due to ergonomically shaped handles with non-slip plastic coating, reducing the risk of slipping. With scale for accurate pre-setting. Pliers wrench, chrome-plated. 813700 - Pliers wrench, nickel-plated, plastic coated handles. 813720 - Pliers wrench, nickel-plated, multi-component handles. Application: Grips screws, nuts, chrome-plated fittings etc. without damaging them. overall length mm V&Garant' - 34.85 39.90 - . Pliers wrench 33.56 37.82 39.60 45.34 53.66 95.63 p i s wrench HJCjtiJ with 2-component grips - 40.69 41.88 48.51 - Jaw length (81 3500) mm 24 33 - Jaw length (81 3700,81 3720) mm 16 20 22 30 32 41 Jaw capacity (81 3500) mm - 0-36 0 - 46 - Jaw capacity (81 3700,81 3720) mm 0-23 0-27 0-35 0 - 46 0-60 0-85 1000V S5F Pliers wrenches, VDE insulated Handles fully insulated up to 1000V to EN 60900/VDE 0682. With scale for correct setting away from the workpiece. Parallel guided, smooth jaws; chrome-plated version. Ratchet adjustment at the push of a button and clamping lever for high contact pressure at the jaws. The travel between the gripping faces is large enough to permit release and grip on a ratchet basis. Handles dip insulated. Pliers wrench, nickel plated. Application: For use at voltages up to 1000 V. overall length mm 250 I Pliers wrench HilUiUafl VDE insulated 56.03 Jaw length mm 30 Jaw capacity mm 0-46 Face gripped withoutplay. Laser-marked scale Works on the for pre-setting. ratchet principle Nut wrench Jaws chemically greyed, polished head, plastic coated handles. Box joint, ratchet adjustment at the press of a button, protection against trapping fingers. Self-damping in the range 17 - 32 mm, the specific jaw opening is large enough to permit release and grip on a ratchet basis. Application: Quick tightening and releasing of metric and imperial hexagon nuts, even when painted over and with rounded corners. Ideal for lock nuts. overall length mm 250 I Nut wrench 22.87 Jaw capacity inch 3/8 1.1/4 Jaw capacity mm 10-32 Rapid adjustment Ideal as “2nd wrench“ bypressinga when tightening lock nuts, button. 749 Facegripped Rapid adjustment by Worksonthe withoutplay. pressing a button, ratchet principle.
