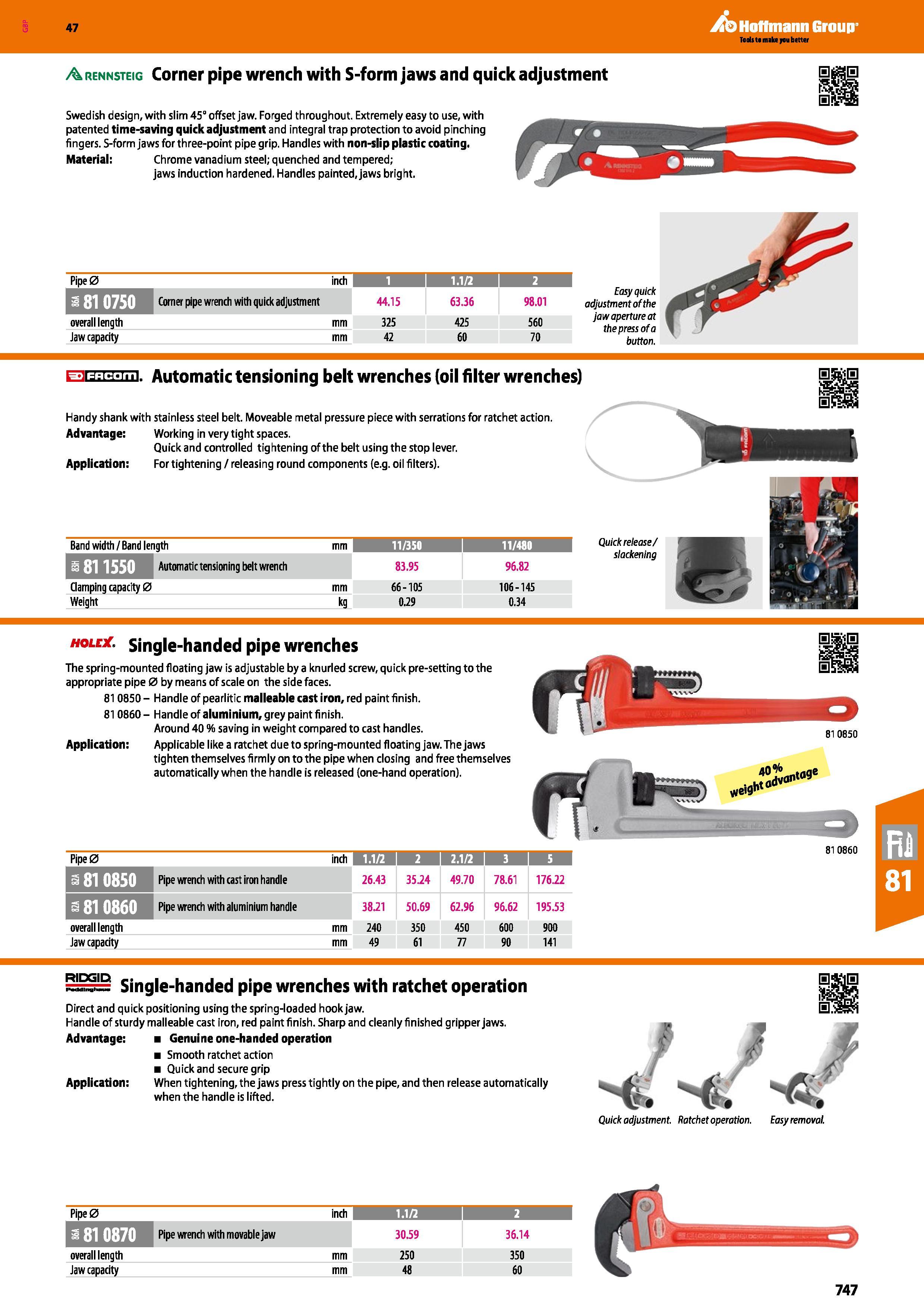

Hoffmann Group 47 A rennsteig Corner pipe wrench with S-form jaws and quick adjustment Swedish design, with slim 45° offset jaw. Forged throughout. Extremely easy to use, with patented time-saving quick adjustment and integral trap protection to avoid pinching fingers. S-form jaws for three-point pipe grip. Handles with non-slip plastic coating. Material: Chrome vanadium steel; quenched and tempered; jaws induction hardened. Handles painted, jaws bright. Pipe0 inch 1 i.i a 2 1 s 810750 Corner pipe wrench with quick adjustment 44.15 63.36 98.01 overall length mm 325 425 560 Jaw capacity mm 42 60 70 Easy quick adjustment of the jaw aperture at the press of a button. E3ld:L-Niil. Automatic tensioning belt wrenches (oil filter wrenches) Handy shank with stainless steel belt. Moveable metal pressure piece with serrations for ratchet action. Advantage: Working in very tight spaces. Quick and controlled tightening of the belt using the stop lever. Application: For tightening / releasing round components (e.g. oil filters). Band width /Band length mm 11/350 I 11/480 Automatic tensioning belt wrench 83.95 96.82 Clamping capacity 0 mm 66-105 106-145 Weight kg 0.29 0.34 holex. Single-handed pipe wrenches The spring-mounted floating jaw is adjustable by a knurled screw, quick pre-setting to the appropriate pipe 0 by means of scale on the side faces. 8108S0 - Handle of pearlitic malleable cast iron, red paint finish. 810860- Handle of aluminium, grey paint finish. Around 40 % saving in weight compared to cast handles. Application: Applicable like a ratchet due to spring-mounted floating jaw. The jaws tighten themselves firmly on to the pipe when closing and free themselves automatically when the handle is released (one-hand operation). 81 0850 40 tdge Pipe0 inch 1.1/2 1 2 1 2.1/2 1 3 I 5 H 1 11 >11B Pipe wrench with cast iron handle 26.43 35.24 49.70 78.61 176.22 gilHIHfrM Pipe wrench with aluminium handle 38.21 50.69 62.96 96.62 195.53 overall length mm 240 350 450 600 900 Jaw capacity mm 49 61 77 90 141 81 0860 RIDGID Single-handed pipe wrenches with ratchet operation Direct and quick positioning using the spring-loaded hook jaw. Handle of sturdy malleable cast iron, red paint finish. Sharp and cleanly finished gripperjaws. Advantage: Genuine one-handed operation Smooth ratchet action Quick and secure grip Application: When tightening, the jaws press tightly on the pipe, and then release automatically when the handle is lifted. SjftS iHb si f J J 'fc " & -6. Quick adjustment. Ratchet operation. Easyremoval. Pipe0 inch 1.1/2 2 Pipe wrench with movable jaw 30.59 36.14 overall length mm 250 350 Jaw capacity mm 48 60 747 Quick release/ slackening
