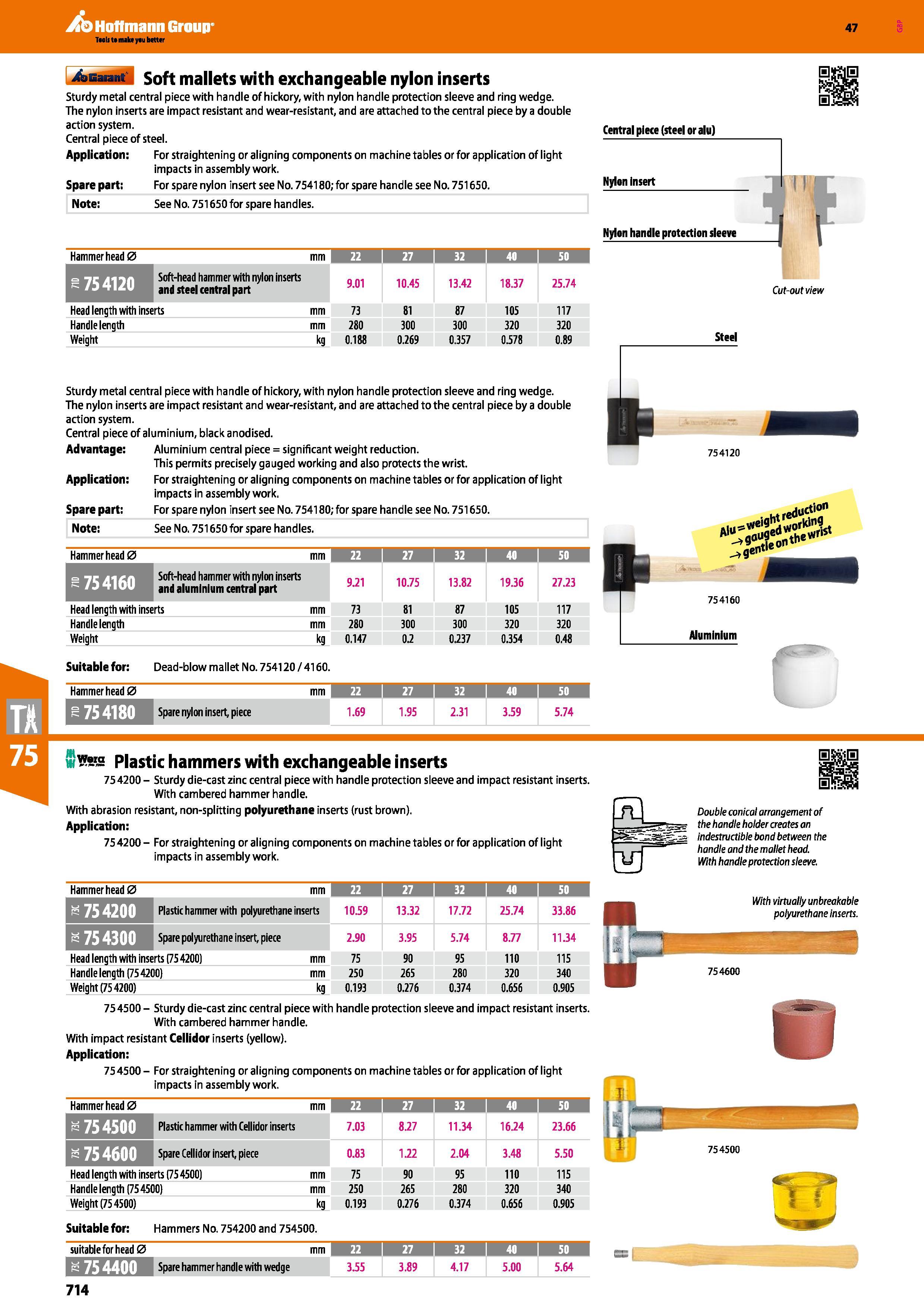

Hoffmann Group 47 Soft mallets with exchangeable nylon inserts Sturdy metal central piece with handle of hickory, with nylon handle protection sleeve and ring wedge. The nylon inserts are impact resistant and wear-resistant, and are attached to the central piece by a double action system. Central piece of steel. Application: For straightening or aligning components on machine tables or for application of light impacts in assembly work. Spare part: For spare nylon insert see No. 754180; for spare handle see No. 751650. Note: See No. 751650 for spare handles. Central piece (steel or alu) Nylon insert Nylon handle protection sleeve Hammer head 0 mm 22 I 27 1 32 j 40 50 I -754120 Soft-head hammer with nylon inserts and steel central part 9.01 10.45 13.42 18.37 25.74 Head length with inserts mm 73 81 87 105 117 Handle length mm 280 300 300 320 320 Weight kg 0.188 0.269 0.357 0.578 0.89 Sturdy metal central piece with handle of hickory, with nylon handle protection sleeve and ring wedge. The nylon inserts are impact resistant and wear-resistant, and are attached to the central piece by a double action system. Central piece of aluminium, black anodised. Advantage: Aluminium central piece = significant weight reduction. This permits precisely gauged working and also protects the wrist. Application: For straightening or aligning components on machine tables or for application of light impacts in assembly work. Spare part: For spare nylon insert see No. 754180; for spare handle see No. 751650. Note: See No. 751650 for spare handles. Hammer head 0 mm 22 I 27 I 32 i 40 50 “754160 Soft-head hammer with nylon inserts and aluminium central part 9.21 10.75 13.82 19.36 27.23 Head length with inserts mm 73 81 87 105 117 Handle length mm 280 300 300 320 320 Weight kg 0.147 0.2 0.237 0.354 0.48 Suitable for: Dead-blow mallet No. 754120 / 4160. Hammer head 0 mm 22 27 i 32 i 40 i 50 s 754180 Spare nylon insert, piece 1.69 1.95 2.31 3.59 5.74 Cut-out view Steel 754120 redu< i n B 754160 Aluminium ww s Plastic hammers with exchangeable inserts 75 4200 - Sturdy die-cast zinc central piece with handle protection sleeve and impact resistant inserts. With cambered hammer handle. With abrasion resistant, non-splitting polyurethane inserts (rust brown). Application: 754200- For straightening or aligning components on machine tables or for application of light impacts in assembly work. Hammer head 0 mm 22 1 27 I 32 I 40 50 I k 75 4200 Plastic hammer with polyurethane inserts 10.59 13.32 17.72 25.74 33.86 a 75 4300 Spare polyurethane insert, piece 2.90 3.95 5.74 8.77 11.34 Head length with inserts (75 4200) mm 75 90 95 110 115 Handle length (754200) mm 250 265 280 320 340 Weight (75 4200) kg 0.193 0.276 0.374 0.656 0.905 75 4500 - Sturdy die-cast zinc central piece with handle protection sleeve and impact resistant inserts. With cambered hammer handle. With impact resistant Cellidor inserts (yellow). Application: 754500- For straightening or aligning components on machine tables or for application of light impacts in assembly work. Hammer head 0 mm 22 1 27 I 32 i 40 50 k 75 4500 Plastic hammer with Cellidor inserts 7.03 8.27 11.34 16.24 23.66 a 75 4600 Spare Cellidor insert piece 0.83 1.22 2.04 3.48 5.50 Head length with inserts (75 4500) mm 75 90 95 110 115 Handle length (754500) mm 250 265 280 320 340 Weight (75 4500) kg 0.193 0.276 0.374 0.656 0.905 Suitable for: Hammers No. 754200 and 754500. suitable for head0 mm 22 i 27 I 32 i 40 i 50 a 75 4400 Spare hammer handle with wedge 3.55 3.89 4.17 5.00 5.64 IT Double conical arrangement of the handle holder creates an indestructible bond between the handle and the mallet head With handle protection sleeve. With virtually unbreakable polyurethane inserts. 714
