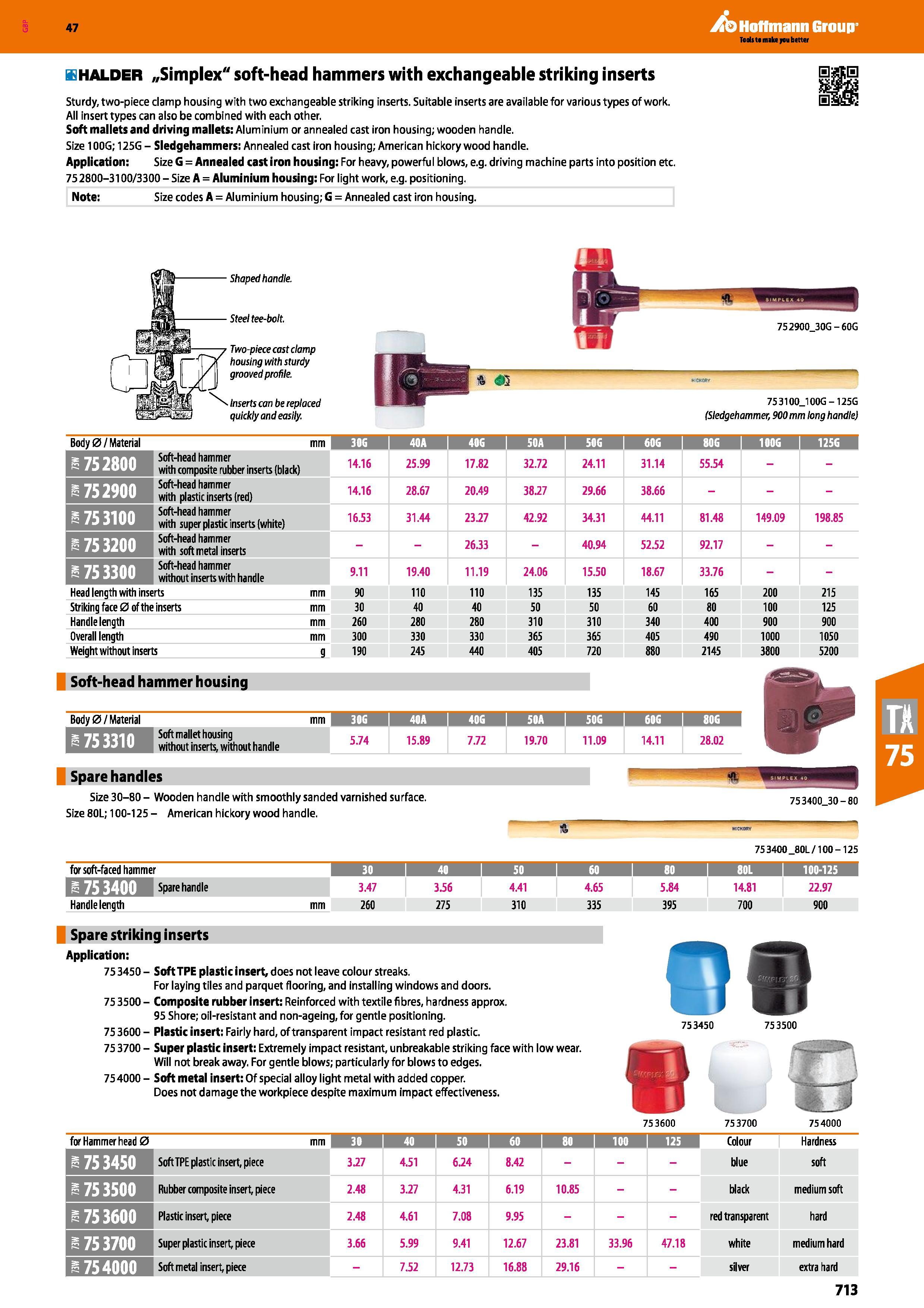

Hoffmann Group 47 fflHALDER „Simplex" soft-head hammers with exchangeable striking inserts Sturdy, two-piece clamp housing with two exchangeable striking inserts. Suitable inserts are available for various types of work. All insert types can also be combined with each other. Soft mallets and driving mallets: Aluminium or annealed cast iron housing; wooden handle. Size 100G; 125G - Sledgehammers: Annealed cast iron housing; American hickory wood handle. Application: Size G = Annealed cast iron housing: For heavy, powerful blows, e.g. driving machine parts into position etc. 75 2800-3100/3300 - Size A = Aluminium housing: For light work, e.g. positioning. Note: Size codes A = Aluminium housing; G = Annealed cast iron housing. Shaped handle. Steel tee-bolt. Two-piece cast clamp housing with sturdy grooved profile. N\ Inserts can be replaced quickly and easily. 753100_100G - 125G (Sledgehammer, 900mm long handle) Body 0/Material mm 30G 40A nm 50A 50G 60G nm 100G 125G 75 2800 Soft-head hammer with composite rubber inserts (black) 14.16 25.99 17.82 32.72 24.11 31.14 55.54 Soft-head hammer with plastic inserts (red) 14.16 28.67 20.49 38.27 29.66 38.66 Soft-head hammer with super plastic inserts (white) 16.53 31.44 23.27 42.92 34.31 44.11 81.48 149.09 198.85 mmm Soft-head hammer with soft metal inserts 26.33 - 40.94 52.52 92.17 753300 Soft-head hammer without inserts with handle 9.11 19.40 11.19 24.06 15.50 18.67 33.76 Head length with inserts mm 90 110 110 135 135 145 165 200 215 Striking face 0 of the inserts mm 30 40 40 50 50 60 80 100 125 Handle length mm 260 280 280 310 310 340 400 900 900 Overall length mm 300 330 330 365 365 405 490 1000 1050 Weight without inserts g 190 245 440 405 720 880 2145 3800 5200 Soft-head hammer housing Body 0/Material mm 31G 1 40A i 40G 1 50A 50G 8 753310 Soft mallet housing without inserts, without handle 5.74 15.89 7.72 19.70 11.09 14.11 28.02 Spare handles Size 30-80 - Wooden handle with smoothly sanded varnished surface. Size 80L; 100-125 - American hickory wood handle. 753400_30-80 A 75 3400 _80L/100-125 for soft-faced hammer 30 40 50 1 60 80 1 80L 100-125 I 1 8 75 3400 Mill 3.47 3.56 4.41 4.65 5.84 14.81 22.97 Handle length mm 260 275 310 335 395 700 900 Spare striking inserts Application: 75 3450 - Soft TPE plastic insert, does not leave colour streaks. For laying tiles and parquet flooring, and installing windows and doors. 75 3500 - Composite rubber insert: Reinforced with textile fibres, hardness approx. 95 Shore; oil-resistant and non-ageing, for gentle positioning. 75 3600 - Plastic insert: Fairly hard, of transparent impact resistant red plastic. 75 3700 - Super plastic insert: Extremely impact resistant, unbreakable striking face with low wear. Will not break away. For gentle blows; particularly for blows to edges. 75 4000 - Soft metal insert: Of special alloy light metal with added copper. Does not damage the workpiece despite maximum impact effectiveness. ) ff) 753450 753500 V 753600 753700 754000 for Hammer head 0 30 i 40 i 50 60 I 80 i 100 1 125 Colour Hardness 8 75 3450 Soft TPE plastic insert, piece 3.27 4.51 6.24 8.42 blue soft 3 75 3500 Rubber composite insert, piece 2.48 3.27 4.31 6.19 10.85 black medium soft 8 75 3600 Plastic insert piece 2.48 4.61 7.08 9.95 red transparent hard Super plastic insert, piece 3.66 5.99 9.41 12.67 23.81 33.96 47.18 white medium hard E 75 4000 Soft metal insert, piece - 7.52 12.73 16.88 29.16 silver extra hard 75 2900_30G - 60G 713
