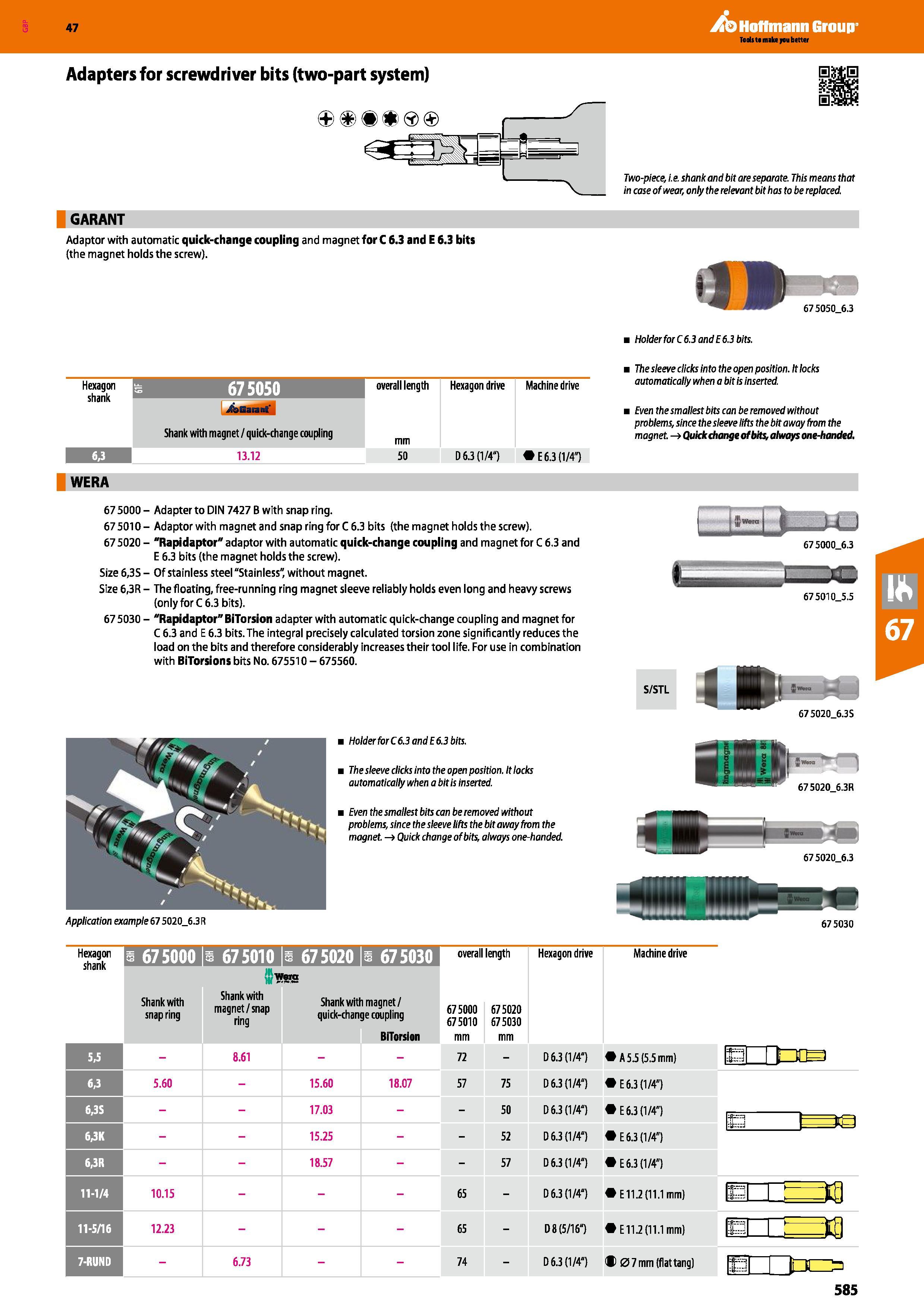

Hoffmann Group 47 Two-piece, I.e. shank and bit are separate. This means that in case of wear, only the relevant bit has to be replaced. GARANT Adaptor with automatic quick-change coupling and magnet for C 6.3 and E 6.3 bits (the magnet holds the screw). 67 5050_6.3 Hexagon shank overall length mm Hexagon drive Machine drive XbGarant Shank with magnet / quick-change coupling 13.12 50 D 6.3 (1/4") E 6.3 (1/4 ) i Holder for C6.3 and 6.3 bits. i The sleeve clicks into the open position. It locks automatically when a bit is inserted. i Even the smallest bits can be removed without problems, since the sleeve lifts the bit away from the magnet. - Quick change of bits, always one-handed. WERA 67 5000 - Adapter to DIN 7427 B with snap ring. 675010- Adaptor with magnet and snap ring for C 6.3 bits (the magnet holds the screw). 67 5020 - "Rapidaptor" adaptor with automatic quick-change coupling and magnet for C 6.3 and E 6.3 bits (the magnet holds the screw). Size 6,3S - Of stainless steel “Stainless" without magnet. Size 6,3R - The floating, free-running ring magnet sleeve reliably holds even long and heavy screws (only for C 6.3 bits). 67 5030 - "Rapidaptor" BiTorsion adapter with automatic quick-change coupling and magnet for C 6.3 and E 6.3 bits. The integral precisely calculated torsion zone significantly reduces the load on the bits and therefore considerably increases their tool life. For use in combination with BiTorsions bits No. 675510 - 675560. i Holder for C 6.3 and E 6.3 bits. S/STL J I J 67 5010_5.5 67 5020_6.3S i The sleeve clicks into the open position. It locks automatically when a bit is inserted. i Even the smallest bits can be removed without problems, since the sleeve lifts the bit away from the magnet - Quick change of bits, always one-handed Application example 67 5020_6.3 R 67 5020_6.3 99 67 5030 Hexagon shank s 675000 675010 i 675020 675030 overall length Hexagon drive Machine drive Shank with snap ring jjwera Shankwlth magnet/ ring quick-change coupling BiTorsion 675000 675010 mm 675020 675030 mm 5,5 - 8.61 72 - D 6.3 (1/4") A 5.5 (5.5 mm) mm 5.60 - 15.60 18.07 57 75 D 6.3 (1/4") E 6.3 (1/4") 6,3S 17.03 50 D 6.3 (1/4") E 6.3 (1/4") 6,3K 15.25 52 D 6.3 (1/4") E 6.3 (1/4") 6,3R 18.57 57 D 6.3 (1/4") E 6.3 (1/4") 11-1/4 10.15 65 - D 6.3 (1/4") E 11.2 (11.1 mm) 11-5/16 12.23 65 - D 8 (5/16") E 11.2 (11.1 mm) 7-RUN D - 6.73 74 - D 6.3 (1/4") 07 mm (flat tang) ET jL-.’-j 33 Adapters for screwdriver bits (two-part system) 67 5020_6.3R
