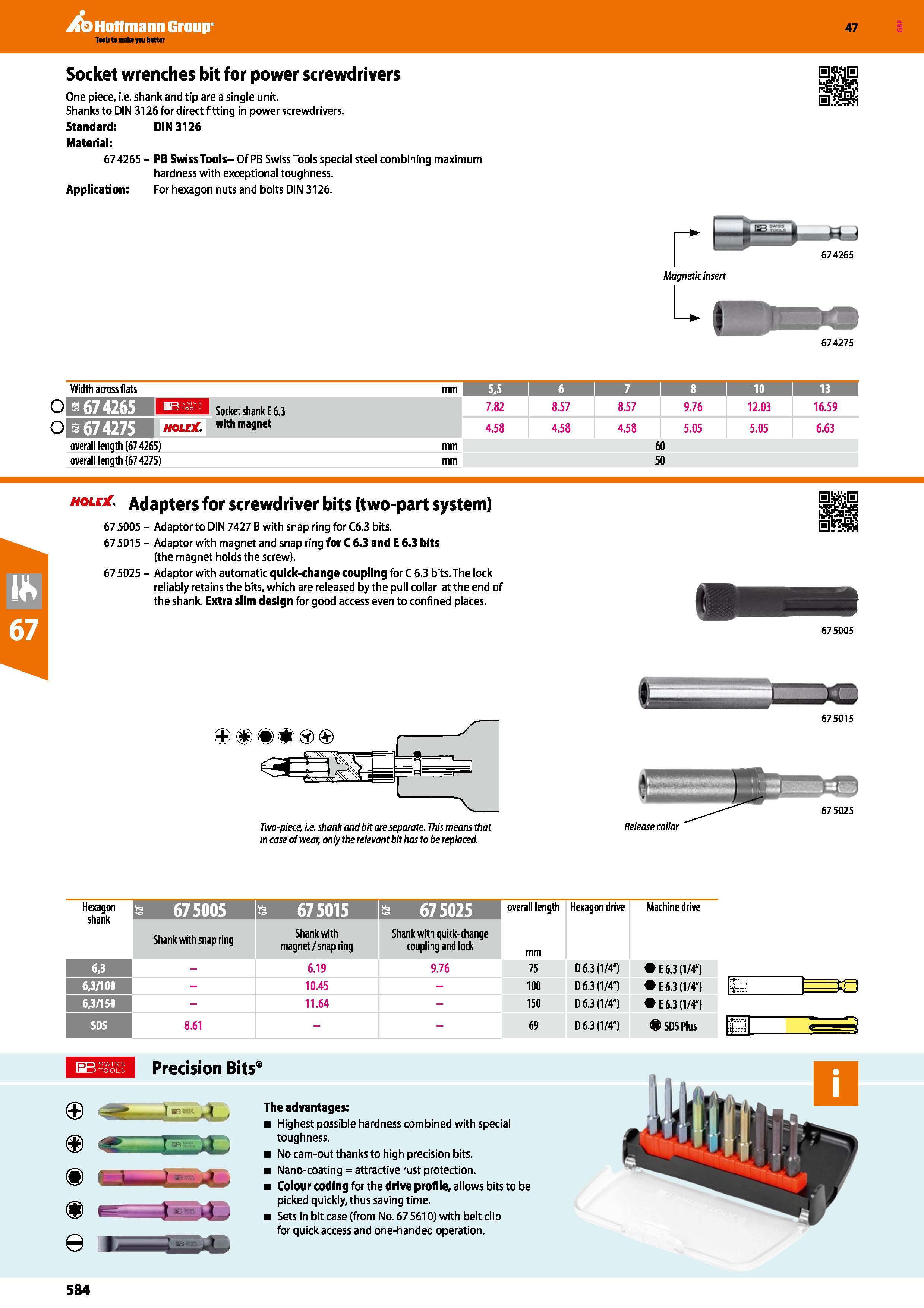

Hoffmann Group 47 Socket wrenches bit for power screwdrivers One piece, i.e. shank and tip are a single unit. Shanks to DIN 3126 for direct fitting in power screwdrivers. Standard: DIN 3126 Material: 674265 - PB Swiss Tools-Of PB Swiss Tools special steel combining maximum hardness with exceptional toughness. Application: For hexagon nuts and bolts DIN 3126. im r Magnetic insert L 674265 674275 Width across flats mm I 7 8 I 10 I 13 1 Socket shank E 6.3 7.82 8.57 8.57 9.76 12.03 16.59 O hole . wittlmagnet 4.58 4.58 4.58 5.05 5.05 6.63 overall length (674265) mm 60 overall length (674275) mm 50 hole . Adapters for screwdriver bits (two-part system) 675005- Adaptor to DIN 7427 B with snap ring for C6.3 bits. 675015- Adaptor with magnet and snap ring for C 6.3 and E 6.3 bits (the magnet holds the screw). 67 5025 - Adaptor with automatic quick-change coupling for C 6.3 bits. The lock reliably retains the bits, which are released by the pull collar at the end of the shank. Extra slim design for good access even to confined places. 675005 < ) > Two-piece, i.e. shank and bit are separate. This means that in case of wear, only the relevant bit has to be replaced 675015 Hexagon shank a 675005 a 675015 a 675025 overall length Hexagon drive Machine drive Shank with snap ring Shank with magnet /snap ring Shank with quick-change coupling and lock mm 6,3 - 6.19 9.76 75 D 6.3 (1/4") E6.3 (1/4") 6,3/100 - 10.45 - 100 06.3(1/4") E6.3 (1/4") 6,3/150 - 11.64 - 150 D 6.3 (1/4") E6.3 (1/4") SDS 8.61 69 D 6.3 (1/4") 9 SDS Plus Precision Bits 9 The advantages: Highest possible hardness combined with special toughness. No cam-out thanks to high precision bits. Nano-coating = attractive rust protection. Colour coding for the drive profile, allows bits to be picked quickly, thus saving time. Sets in bit case (from No. 67 5610) with belt clip for quick access and one-handed operation. 675025 Release collar 584
