560 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.560

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 560 0560 ENG Lab2u

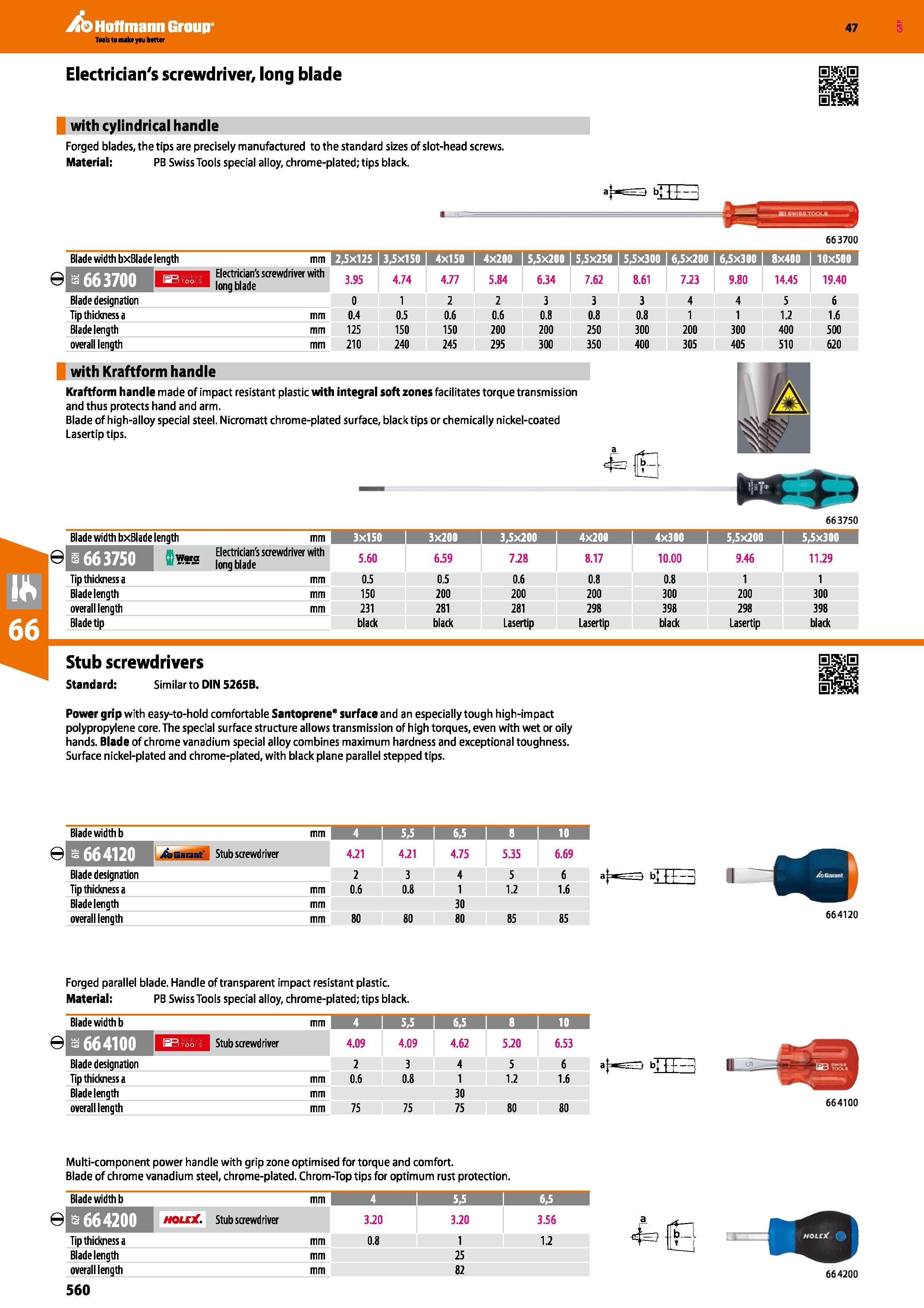

Hoffmann Group 47 Electrician's screwdriver, long blade with cylindrical handle Forged blades, the tips are precisely manufactured to the standard sizes of slot-head screws. Material: PB Swiss Tools special alloy, chrome-plated; tips black. ss bjTEB 663700 Blade width bxBlade length mm 2,5x125 I 3,5x150 4x150 I 4X200 I 5,5x200 I 5,5x250 I 5,5x300 I 6,5x200 I 6,5x300 8x400 I 10x500 a 66 3700 1st-1 oo Electrician's screwdriver with 1 long blade 3.95 4.74 4.77 5.84 6.34 7.62 8.61 7.23 9.80 14.45 19.40 Blade designation 0 1 2 2 3 3 3 4 4 5 6 Tip thickness a mm 0.4 0.5 0.6 0.6 0.8 0.8 0.8 1 1 1.2 1.6 Blade length mm 125 150 150 200 200 250 300 200 300 400 500 overall length mm 210 240 245 295 300 350 400 305 405 510 620 with Kraftform handle Kraftform handle made of impact resistant plastic with integral soft zones facilitates torque transmission and thus protects hand and arm. Blade of high-alloy special steel. Nicromatt chrome-plated surface, black tips or chemically nickel-coated Lasertip tips. 663750 Blade width bxBlade length mm 3x150 3x200 I 3,5x200 i 4x200 4x300 i 5,5x200 I 5,5x300 N 663750 Electrician's screwdriver with long blade 5.60 6.59 7.28 8.17 10.00 9.46 11.29 Tip thickness a mm 0.5 0.5 0.6 0.8 0.8 1 1 Blade length mm 150 200 200 200 300 200 300 overall length mm 231 281 281 298 398 298 398 Blade tip black black Lasertip Lasertip black Lasertip black Stub screwdrivers Standard: Similar to DIN 5265B. Power grip with easy-to-hold comfortable Santoprene8 surface and an especially tough high-impact polypropylene core. The special surface structure allows transmission of high torques, even with wet or oily hands. Blade of chrome vanadium special alloy combines maximum hardness and exceptional toughness. Surface nickel-plated and chrome-plated, with black plane parallel stepped tips. Blade width b mm 4 I 5,5 I 6,5 1 8 I 10 1 'HvfclrT'M /bEarant Stub screwdriver 4.21 4.21 4.75 5.35 6.69 Blade designation 2 3 4 5 6 Tip thickness a mm 0.6 0.8 1 1.2 1.6 Blade length mm 30 overall length mm 80 80 80 85 85 =3 bUE 664120 Forged parallel blade. Handle of transparent impact resistant plastic. Material: PB Swiss Tools special alloy, chrome-plated; tips black. Blade width b mm 4 1 5,5 6,5 1 8 I 10 1 a 664100 Stub screwdriver 4.09 4.09 4.62 5.20 6.53 Blade designation 2 3 4 5 6 Tip thickness a mm 0.6 0.8 1 1.2 1.6 Blade length mm 30 overall length mm 75 75 75 80 80 =3 bHE3 664100 Multi-component power handle with grip zone optimised for torque and comfort. Blade of chrome vanadium steel, chrome-plated. Chrom-Top tips for optimum rust protection. Blade width b mm 4 5,5 6,5 a 664200 holcX. Stub screwdriver 3.20 3.20 3.56 Tip thickness a mm 0.8 1 1.2 Blade length mm 25 overall length mm 82 560 664200
