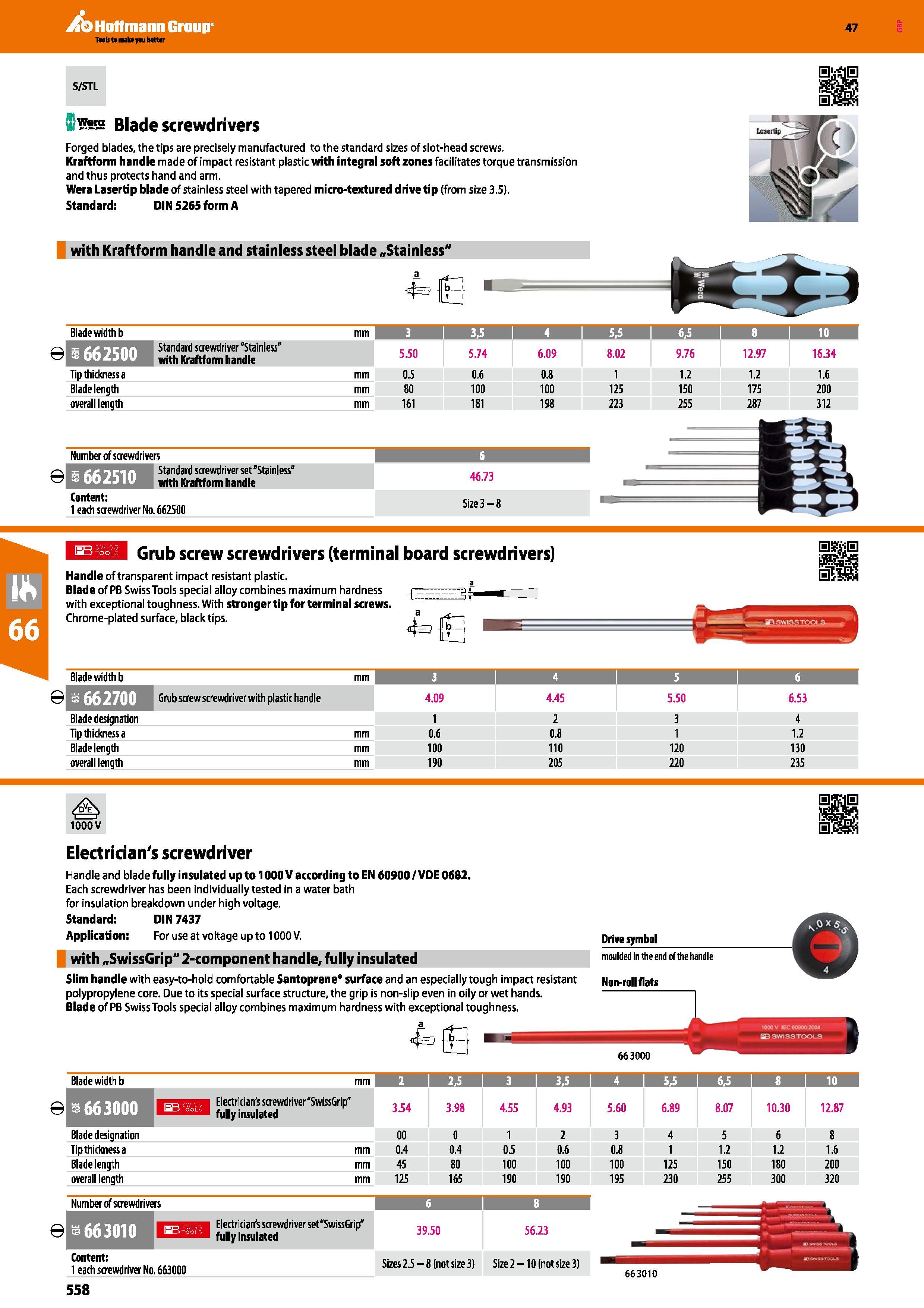

558 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.558

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 558 0558 ENG Lab2u

Hoffmann Group 47 S/STL hi wera Blade screwdrivers Forged blades, the tips are precisely manufactured to the standard sizes of slot-head screws. Kraftform handle made of impact resistant plastic with integral soft zones facilitates torque transmission and thus protects hand and arm. Wera Lasertip blade of stainless steel with tapered micro-textured drive tip (from size 3.5). Standard: DIN 5265 form A with Kraftform handle and stainless steel blade „Stainless" e Blade width b mm 3 1 3,5 1 4 1 5,5 6,5 10 1 1662500 Standard screwdriver "Stainless" with Kraftfoim handle 5.50 5.74 6.09 8.02 9.76 12.97 16.34 Tip thickness a mm 0.5 0.6 0.8 1 1.2 1.2 1.6 Blade length mm 80 100 100 125 150 175 200 overall length mm 161 181 198 223 255 287 312 Standard screwdriver set "Stainless" with Kraftform handle 46.73 Content: 1 each screwdriver Na 662500 Size3 8 Grub screw screwdrivers (terminal board screwdrivers) Handle of transparent impact resistant plastic. Blade of PB Swiss Tools special alloy combines maximum hardness _ -i>i with exceptional toughness. With stronger tip for terminal screws. Chrome-plated surface, black tips. r iff 1 43 fb-y Blade width b mm SSiSlKBiiSiii Grub screw screwdriver with plastic handle 4.09 4.45 5.50 6.53 Blade designation 1 2 3 4 Tip thickness a mm 0.6 0.8 1 1.2 Blade length mm 100 110 120 130 overall length mm 190 205 220 235 1000V si Electrician's screwdriver Handle and blade fully insulated up to 1000 V according to EN 60900 / VDE 0682. Each screwdriver has been individually tested in a water bath for insulation breakdown under high voltage. Standard: DIN 7437 Application: For use at voltage upto 1000 V. with „SwissGrip" 2-component handle, fully insulated Slim handle with easy-to-hold comfortable Santoprene8 surface and an especially tough impact resistant polypropylene core. Due to its special surface structure, the grip is non-slip even in oily or wet hands. Blade of PB Swiss Tools special alloy combines maximum hardness with exceptional toughness. Drive symbol moulded in the end of the handle Non-roll flats 663000 e Blade width b mm 2 2,5 3 3,5 I 4 5.5 : 6,5 8 I 10 1 a 663000 m Electrician's screwdriver "SwissGrip" fully insulated 3.54 3.98 4.55 4.93 5.60 6.89 8.07 10.30 12.87 Blade designation 00 0 1 2 3 4 5 6 8 Tip thickness a mm 0.4 0.4 0.5 0.6 0.8 1 1.2 1.2 1.6 Blade length mm 45 80 100 100 100 125 150 180 200 overall length mm 125 165 190 190 195 230 255 300 320 Number of screwdrivers 1 8 a 663010 Electrician's screwdriver set"SwissGrip” 1 fully insulated 39.50 56.23 Content: 1 each screwdriver No. 663000 Sizes 2.5-8 (not size 3) Size 2-10 (not size 3) 663010 558 Lmitip
