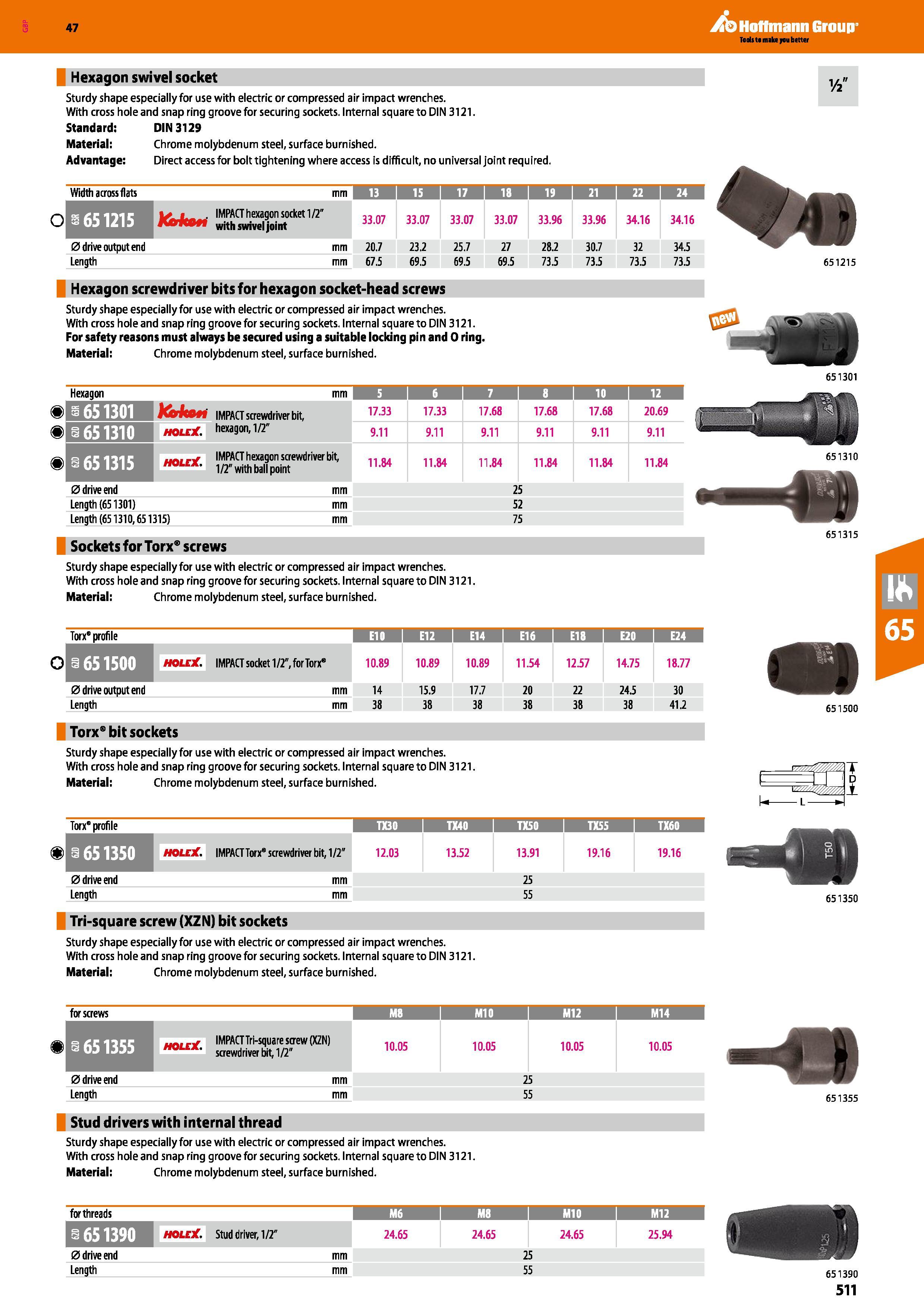

Hoffmann Group 47 Hexagon swivel socket 1A" Sturdy shape especially for use with electric or compressed air impact wrenches. 72 With cross hole and snap ring groove for securing sockets. Internal square to DIN 3121. Standard: DIN 3129 Material: Chrome molybdenum steel, surface burnished. Advantage: Direct access for bolt tightening where access is difficult, no universal joint required. Width across flats mm 13 1 15 i I 1 18 1 19 i 21 i 22 24 o 1 651215 i IMPACT hexagon socket 1/2" AOKOfl wjth swivel joint 33.07 33.07 33.07 33.07 33.96 33.96 34.16 34.16 0 drive output end mm 20.7 23.2 25.7 27 28.2 30.7 32 34.5 Length mm 67.5 69.5 69.5 69.5 73.5 73.5 73.5 73.5 1 Hexagon screwdriver bits for hexagon socket-head screws Sturdy shape especially for use with electric or compressed air impact wrenches. With cross hole and snap ring groove for securing sockets. Internal square to DIN 3121. For safety reasons must always be secured using a suitable locking pin and 0 ring. Material: Chrome molybdenum steel, surface burnished. m m m Hexagon mm 5 1 6 1 7 8 10 1 12 651301 teJtOM IMPACT screwdriver bit. 17.33 17.33 17.68 17.68 17.68 20.69 651310 holcX. hexagon, 1/2" 9.11 9.11 9.11 9.11 9.11 9.11 651315 unirV IMPACT hexagon screwdriver bit, 1/2" with ball point 11.84 11.84 11.84 11.84 11.84 11.84 0 drive end mm 25 Length (651301) mm 52 Length (651310,651315) mm 75 Sockets for Torx9 screws Sturdy shape especially for use with electric or compressed air impact wrenches. With cross hole and snap ring groove for securing sockets. Internal square to DIN 3121. Material: Chrome molybdenum steel, surface burnished. o Torx” profile E10 S E12 E14 i E16 E18 E20 E24 1 651500 HOLE . IMPACT socket 1/2", for Torx 10.89 10.89 10.89 11.54 12.57 14.75 18.77 0 drive output end mm 14 15.9 17.7 20 22 24.5 30 Length mm 38 38 38 38 38 38 41.2 Torx8 bit sockets Sturdy shape especially for use with electric or compressed air impact wrenches. With cross hole and snap ring groove for securing sockets. Internal square to DIN 3121. Material: Chrome molybdenum steel, surface burnished. 651215 < > Torx profile TX30 TX40 TX50 TX55 TX60 i 651350 HOLEX. IMPACT Torx8 screwdriver bit, 1 /2" 12.03 13.52 13.91 19.16 19.16 0 drive end mm 25 Length mm 55 Tri-square screw (XZN) bit sockets Sturdy shape especially for use with electric or compressed air impact wrenches. With cross hole and snap ring groove for securing sockets. Internal square to DIN 3121. Material: Chrome molybdenum steel, surface burnished. for screws M8 i M10 M12 M14 j 651355 uauV IMPACT Tri-square screw (XZN) screwdriver bit, 1/2" 10.05 10.05 10.05 10.05 0 drive end mm 25 Length mm 55 Stud drivers with internal thread Sturdy shape especially for use with electric or compressed air impact wrenches. With cross hole and snap ring groove for securing sockets. Internal square to DIN 3121. Material: Chrome molybdenum steel, surface burnished. 651315 651500 651350 651355 for threads 1 M8 1 M10 1 M12 1 651390 holeX. Stud driver, 1/2" 24.65 24.65 24.65 25.94 0 drive end mm 25 Length mm 55
