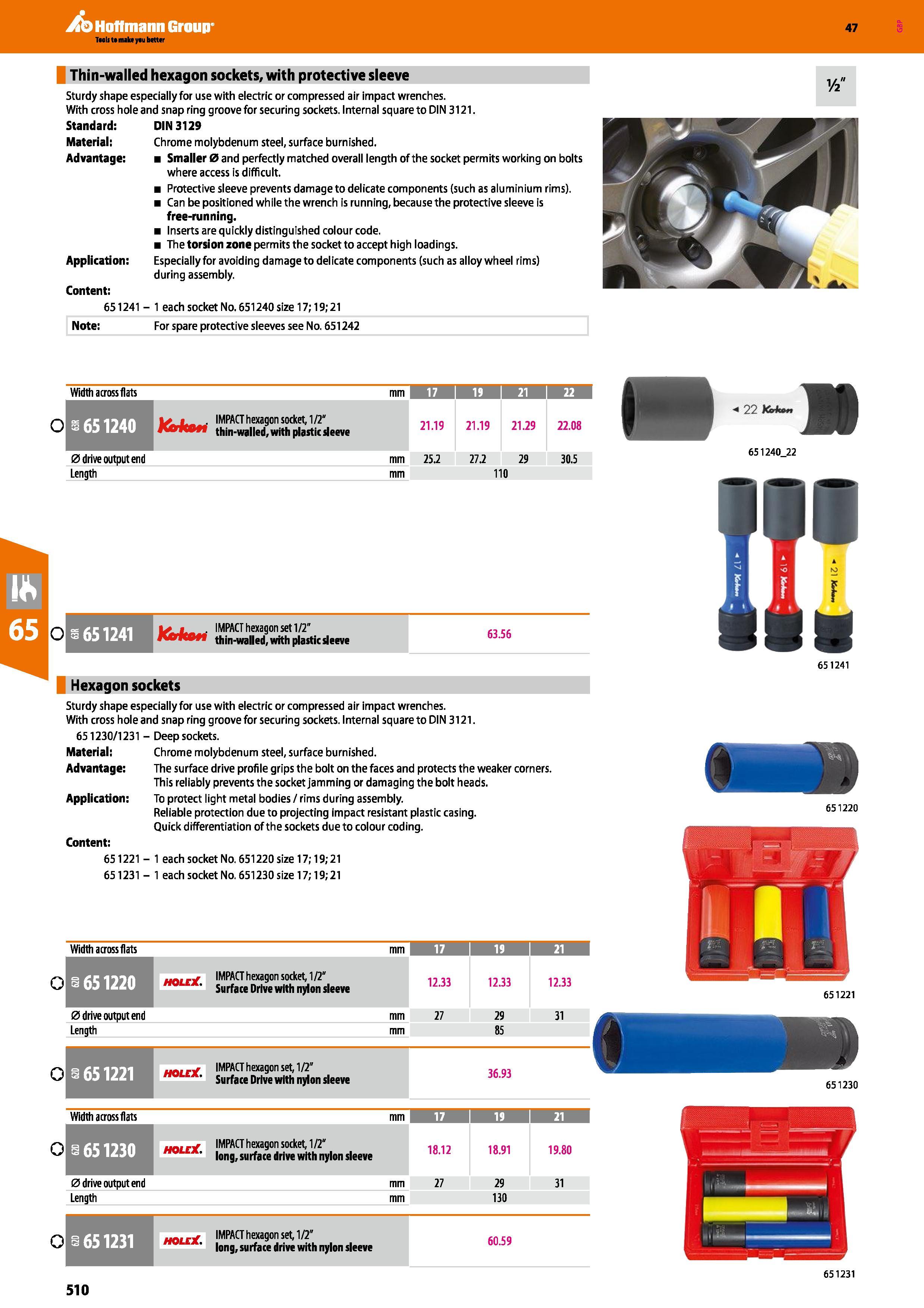

510 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.510

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 510 0510 ENG Lab2u

Hoffmann Group 47 Thin-walled hexagon sockets, with protective sleeve Sturdy shape especially for use with electric or compressed air impact wrenches. With cross hole and snap ring groove for securing sockets. Internal square to DIN 3121. Standard: DIN 3129 Material: Chrome molybdenum steel, surface burnished. Advantage: Smaller 0 and perfectly matched overall length of the socket permits working on bolts where access is difficult. Protective sleeve prevents damage to delicate components (such as aluminium rims). Can be positioned while the wrench is running, because the protective sleeve is free-running. Inserts are quickly distinguished colour code. The torsion zone permits the socket to accept high loadings. Application: Especially for avoiding damage to delicate components (such as alloy wheel rims) during assembly. Content: 651241 - 1 each socket No. 651240 size 17; 19; 21 Note: For spare protective sleeves see No. 651242 Width across flats mm 17 I U I 21 I 22 651240 iy i IMPACT hexagon socket, 1/2" AOKOfl thin-walled, with plastic sleeve 21.19 21.19 21.29 22.08 0 drive output end mm 25.2 27.2 29 30.5 651241 Irtlmi IMPACT hexagon set 1/2" AOKOfl thin-walled, with plastic sleeve 63.56 Hexagon sockets Sturdy shape especially for use with electric or compressed air impact wrenches. With cross hole and snap ring groove for securing sockets. Internal square to DIN 3121. 651230/1231 - Deep sockets. Material: Chrome molybdenum steel, surface burnished. The surface drive profile grips the bolt on the faces and protects the weaker corners. This reliably prevents the socket jamming or damaging the bolt heads. To protect light metal bodies / rims during assembly. Reliable protection due to projecting impact resistant plastic casing. Quick differentiation of the sockets due to colour coding. Content: 651221 - 1 each socket No. 651220 size 17; 19; 21 651231 - 1 each socket No. 651230 size 17; 19; 21 Advantage: Application: i 22 651240 22 651241 651220 o Width across flats mm I 19 1 21 651220 MOUJf IMPACT hexagon socket, 1/2" Surface Drive with nylon sleeve 12.33 12.33 12.33 0 drive output end mm 27 29 31 Length o 651221 holcX IMPACT hexagon set, 112" Surface Drive with nylon sleeve 85 36.93 651221 r t v \ L 651230 o Width across flats mm 17 I 19 I 21 651230 holejC IMPACT hexagon socket, 112“ long, surface drive with nylon sleeve 18.12 18.91 19.80 0 drive output end mm 27 29 31 Length mm 130 o 1 651231 holcX IMPACT hexagon set, 1/2" long, surface drive with nylon sleeve 60.59 651231 510
