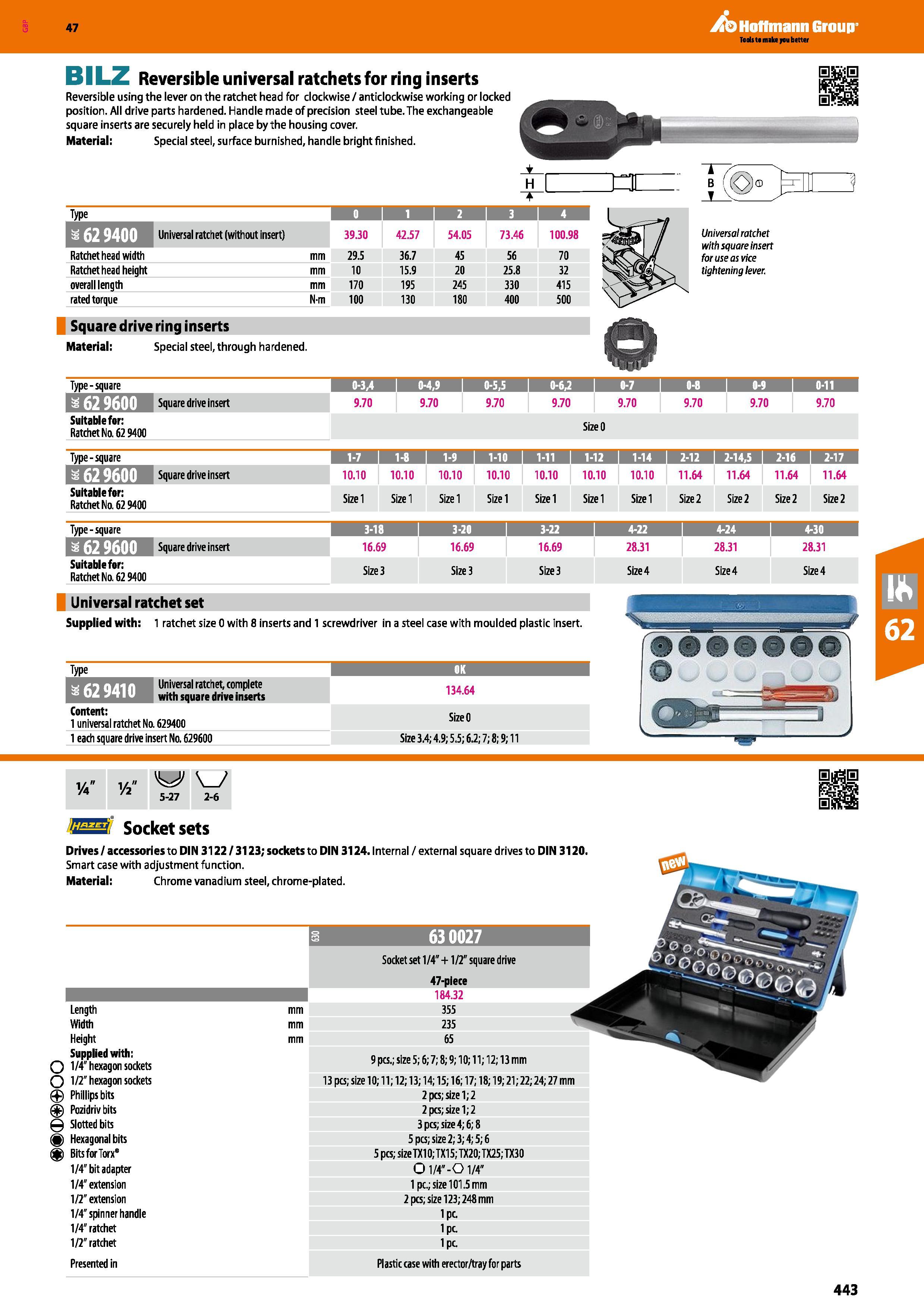

47 BILZ Reversible universal ratchets for ring inserts Reversible using the lever on the ratchet head for clockwise / anticlockwise working or locked position. All drive parts hardened. Handle made of precision steel tube. The exchangeable square inserts are securely held in place by the housing cover. Material: Special steel, surface burnished, handle bright finished. Hoffmann Group 0 I 1 1 2 I 3 I 4 liT ELI'I'B Universal ratchet (without insert) 39.30 42.57 54.05 73.46 100.98 Ratchet head width mm 29.5 36.7 45 56 70 Ratchet head height mm 10 15.9 20 25.8 32 overall length mm 170 195 245 330 415 rated torque N-m 100 130 180 400 500 Square drive ring inserts Material: Special steel, through hardened. Universal ratchet with square insert for use as vice tightening lever. Type-square 0-3/4 0-4,9 1 0-5,5 1 0-6,2 1 0-7 1 0-8 0-9 0-11 S iB Square drive insert 9.70 9.70 9.70 9.70 9.70 9.70 9.70 9.70 Suitable for: Ratchet No. 62 9400 SizeO Type-square 1-7 i 1-8 i i-9 1 i-io 1 1-11 1 M2 1 1-14 1 2-12 1 2-14,5 1 2-16 1 2-17 S lB Square drive insert 10.10 10.10 10.10 10.10 10.10 10.10 10.10 11.64 11.64 11.64 11.64 Suitable for: Ratchet Na 62 9400 Size 1 Size 1 Size 1 Size 1 Size 1 Size 1 Size 1 Size 2 Size 2 Size 2 Size 2 Type-square 3-18 I 3-20 I 3-22 j 4-22 I 4-24 i 4-30 I .T1J 'YlTlM Square drive insert 16.69 16.69 16.69 28.31 28.31 28.31 Suitable for: Ratchet Na 62 9400 Size 3 Size 3 Size 3 Size 4 Size 4 Size 4 Universal ratchet set Supplied with: 1 ratchet size 0 with 8 inserts and 1 screwdriver in a steel case with moulded plastic insert. Type OK i s 62 9410 Universal ratchet, complete with square drive inserts 134.64 Content: 1 universal ratchet Na 629400 SizeO 1 each square drive insert No. 629600 Size 3.4; 4.9; 5.5; 6.2; 7; 8; 9; 11 5-27 w 2-6 'if i Socket sets Drives / accessories to DIN 3122 / 3123; sockets to DIN 3124. Internal / external square drives to DIN 3120. Smart case with adjustment function. Material: Chrome vanadium steel, chrome-plated. Length Width Height Supplied with: O 1/4" hexagon sockets O 1/2" hexagon sockets 0 Phillips bits 0 Pozidrivbits Slotted bits Hexagonal bits Bits for Torx" 1/4" bit adapter 1/4" extension 1/2" extension 1/4" spinner handle 1/4"ratchet 1/2" ratchet Presented in 9 pcs.; size 5; 6; 7; 8; 9; 10; 11; 12; 13 mm 13 pcs; size 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 24; 27 mm 2 pcs; size 1; 2 2 pcs;size 1; 2 3 pcs; size 4; 6; 8 5 pcs; size 2; 3; 4; 5; 6 5 pcs; size TX10; TX15; TX20; TX25; TX30 0 1/4"-O 1/4" 1 pc.; size 101.5 mm 2 pcs; size 123; 248 mm 1 pc Ipc 1 pc. Plastic case with erector/tray for parts 443
