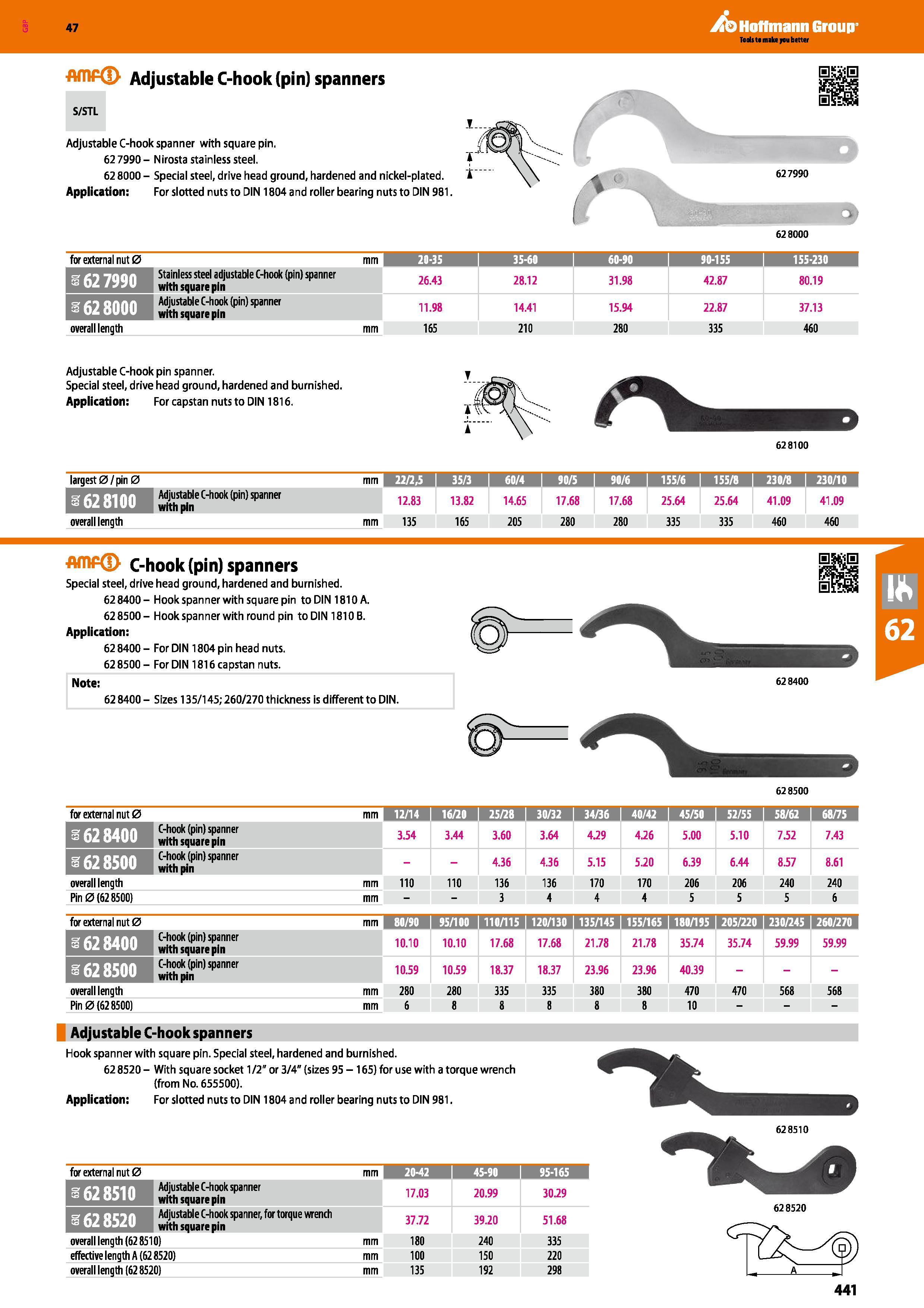

Adjustable C-hook (pin) spanners S/STL Adjustable C-hook spanner with square pin. 62 7990 - Nirosta stainless steel. f 62 8000 - Special steel, drive head ground, hardened and nickel-plated. A Application: For slotted nuts to DIN 1804 and roller bearing nuts to DIN 981. Hoffmann Group 627990 628000 for external nut 0 mm 20-35 35-60 60-90 1 90-155 I 155-230 Stainless steel adjustable C-hook (pin) spanner with square pin 26.43 28.12 31.98 42.87 80.19 Adjustable C-hook (pin) spanner BjAataliM with square pin 11.98 14.41 15.94 22.87 37.13 overall length mm 165 210 280 335 460 Adjustable C-hook pin spanner. Special steel, drive head ground, hardened and burnished. Application: For capstan nuts to DIN 1816. 628100 largest 0/pin 0 H9 22/2,5 1 35/3 60/4 90/5 j 90/6 I 155/6 1 155/8 I 230/8 I 230/10 1 Adjustable C-hook (pin) spanner EIZUIIH with pin 12.83 13.82 14.65 17.68 17.68 25.64 25.64 41.09 41.09 overall length 135 165 205 280 280 335 335 460 460 C-hook (pin) spanners Special steel, drive head ground, hardened and burnished. 628400- Hook spanner with square pin toDIN1810A. 628500- Hook spanner with round pin toDIN1810B. Application: 62 8400 - For DIN 1804 pin head nuts. 628500- For DIN 1816capstan nuts. Note: 62 8400 - Sizes 135/145; 260/270 thickness is different to DIN. 628400 628500 for external nut 0 mm 12/14 1 16/20 I 25/28 I 30/32 I 34/36 I 40/42 I 45/50 I 52/55 1 58/62 1 68/75 T T TTiTH C-hook (pin) spanner with square pin 3.54 3.44 3.60 3.64 4.29 4.26 5.00 5.10 7.52 7.43 s' 62 8500 C-hook (pin) spanner with pin 4.36 4.36 5.15 5.20 6.39 6.44 8.57 8.61 overall length mm 110 110 136 136 170 170 206 206 240 240 Pin 0(62 8500) mm 3 4 4 4 5 5 5 6 for external nut 0 mm 80/90 I 95/100 I 110/115 1 120/130 I 135/145 I 155/165 I 180/195 1 205/220 1 230/245 I 260/270 s 62 8400 C-hook (pin) spanner with square pin 10.10 10.10 17.68 17.68 21.78 21.78 35.74 35.74 59.99 59.99 S' 62 8500 C-hook (pin) spanner with pin 10.59 10.59 18.37 18.37 23.96 23.96 40.39 overall length mm 280 280 335 335 380 380 470 470 568 568 Pin 0(62 8500) mm 6 8 8 8 8 8 10 Adjustable C-hook spanners Hook spanner with square pin. Special steel, hardened and burnished. 62 8520 - With square socket 1 /2" or 3/4" (sizes 95 -165 for use with a torque wrench (from No. 655500). Application: For slotted nuts to DIN 1804 and roller bearing nuts to DIN 981. for external nut 0 mm 20-42 i 45-90 j 95-165 Adjustable C-hook spanner lB with square pin 17.03 20.99 30.29 Adjustable C-hook spanner, for torque wrench with square pin 37.72 39.20 51.68 overall length (62 8510) mm 180 240 335 effective length A (62 8520) mm 100 150 220 overall length (628520) mm 135 192 298 441
