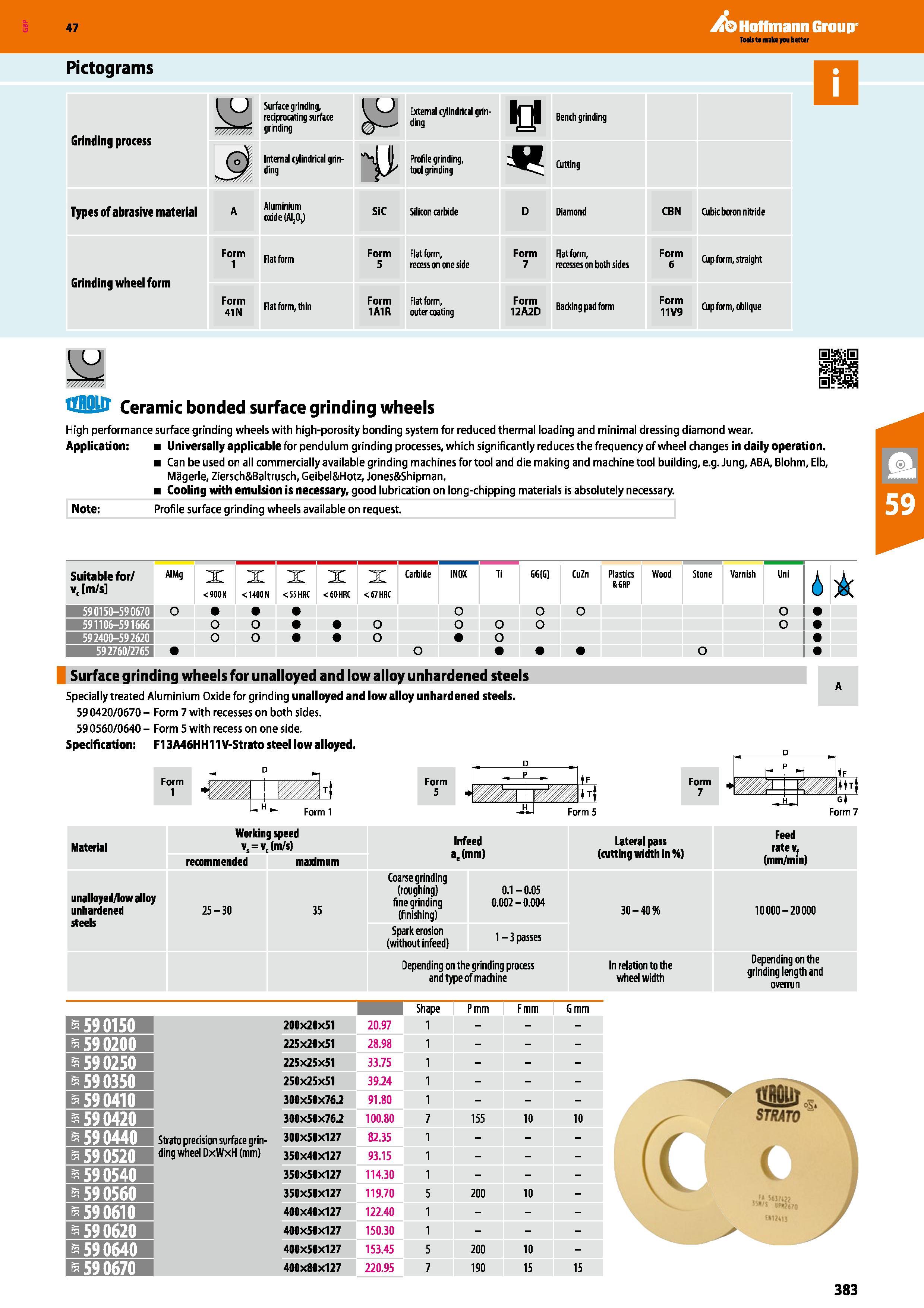

Hoffmann Group 47 Pictograms Grinding process Types of abrasive material (J Surface grinding, reciprocating surface grinding o i Internal cylindrical grin- Tl din9 Aluminium oxide (flljOj) IU Ex O' dil ii External cylindrical grinding Profile grinding, tool grinding SiC Silicon carbide u Bench grinding Cutting Diamond CBN Cubic boron nitride Grinding wheel form Form 1 Form 41N Flat form Flat form, thin Form Flat form, 5 recess on one side Form Flat form, 1A1R outer coating Form Hatform, 7 recesses on both sides 12A2D B ing pad form F°gm Cup form, straight 1°V9 Cup form, oblique u Ceramic bonded surface grinding wheels High performance surface grinding wheels with high-porosity bonding system for reduced thermal loading and minimal dressing diamond wear. Application: Universally applicable for pendulum grinding processes, which significantly reduces the frequency of wheel changes in daily operation. Can be used on all commercially available grinding machines for tool and die making and machine tool building, e.g. Jung, ABA, Blohm, Elb, Magerle, Ziersch&Baltrusch, Geibel&Hotz, Jones&Shipman. Cooling with emulsion is necessary, good lubrication on long-chipping materials is absolutely necessary. Note: Profile surface grinding wheels available on request. Suitable for/ v( m/s AIMg X <900N X <1400 N X <55 HRC X <60 HRC X <67 HRC Carbide IN0X Ti I36(C CuZn Plastics &GRP Wood Stone Varnish Uni i 590150-590670 o 591106-591666 o 592400-592620 592760/2765 Surface grinding wheels for unalloyed and low alloy unhardened steels Specially treated Aluminium Oxide for grinding unalloyed and low alloy unhardened steels. 59 0420/0670 - Form 7 with recesses on both sides. 59 0560/0640 - Form 5 with recess on one side. Specification: FI 3A46HH11 V-Strato steel low alloyed. Form 1 IBI 11111 Form 1 Form Form 5 I M 7 LiU Form 5 Shape Pmm Fmm Gmm -590150 200x20x51 20.97 1 -590200 225x20x51 28.98 1 5 590250 225x25x51 33.75 1 s 59 0350 250x25x51 39.24 1 590410 300x50x76.2 91.80 1 59 0420 300x50x76.2 100.80 7 155 10 10 -590440 Strato precision surface grin- 300x50x127 82.35 1 - 59 0520 ding wheel DxWxH (mm) 350x40x127 93.15 1 59 0540 350x50x127 114.30 1 - 59 0560 350x50x127 119.70 5 200 10 - 590610 400X40X127 122.40 1 s 59 0620 400X50X127 150.30 1 -590640 400X50X127 153.45 5 200 10 - s 59 0670 400x80x127 220.95 7 190 15 15 Material Working speed v,=v( m/s) infeed a,(mm) Lateral pass (cutting width in%) Feed ratevf recommended maximum (mm/min) unalloyed/low alloy unhardened steels 25-30 35 Coarse grinding (roughing) fine grinding (finishing) Spark erosion (without infeed) 0.1-0.05 0.002 - 0.004 1-3 passes 30 - 40% 10000 - 20000 Depending on the grinding process and type of machine In relation to the wheel width Depending on the grinding length and overrun < ,. STRAT0 “ c M / 383
