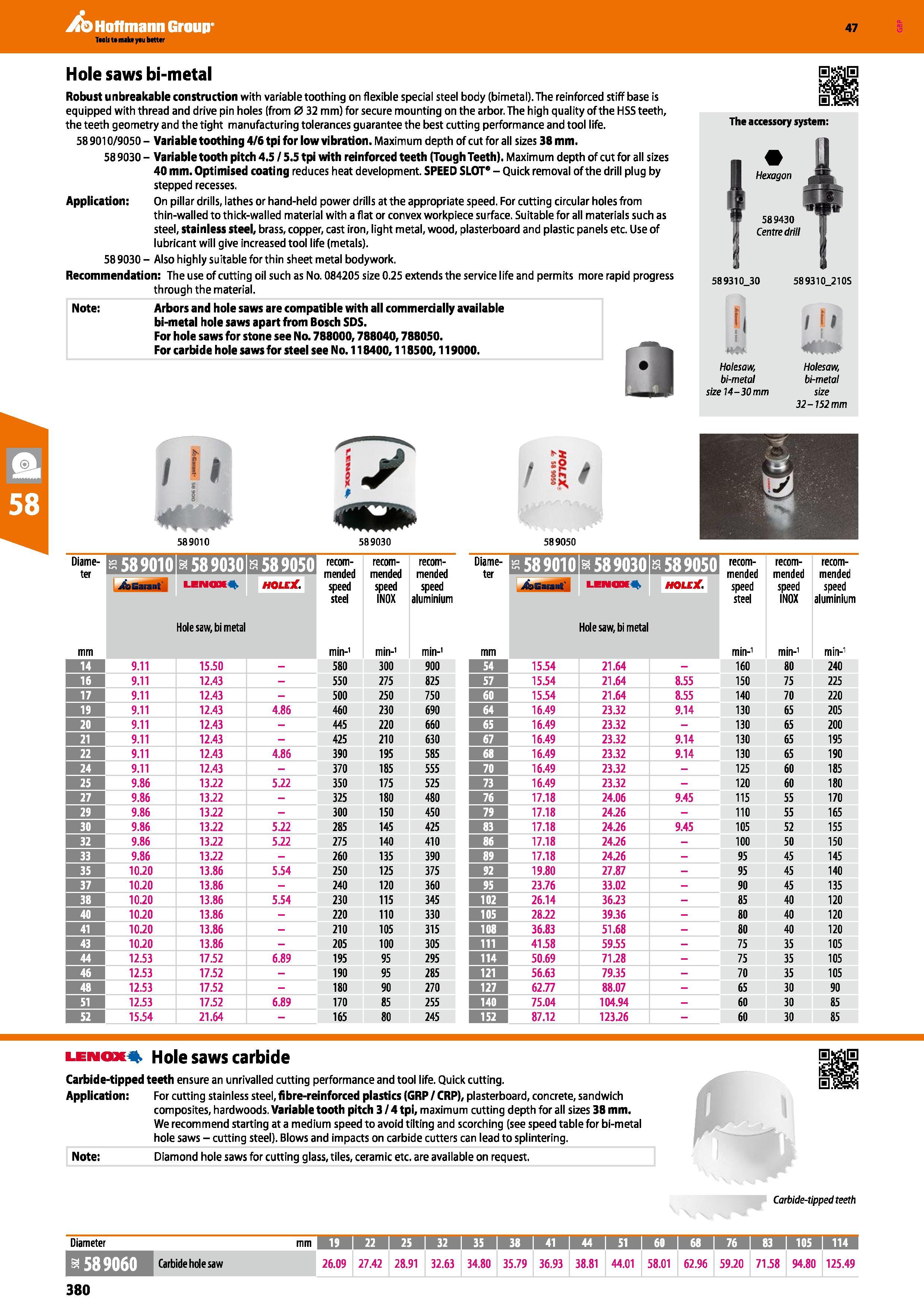

Hoffmann Group 47 Hole saws bi-metal Robust unbreakable construction with variable toothing on flexible special steel body (bimetal). The reinforced stiff base is equipped with thread and drive pin holes (from 0 32 mm) for secure mounting on the arbor. The high quality of the HSS teeth, the teeth geometry and the tight manufacturing tolerances guarantee the best cutting performance and tool life. 58 9010/9050 - Variable toothing 4/6 tpi for low vibration. Maximum depth of cut for all sizes 38 mm. 58 9030 - Variable tooth pitch 4.5 / 5.5 tpi with reinforced teeth (Tough Teeth). Maximum depth of cut for all sizes 40 mm. Optimised coating reduces heat development. SPEED SLOT" - Quick removal of the drill plug by stepped recesses. Application: On pillar drills, lathes or hand-held power drills at the appropriate speed. For cutting circular holes from thin-walled to thick-walled material with a flat or convex workpiece surface. Suitable for all materials such as steel, stainless steel, brass, copper, cast iron, light metal, wood, plasterboard and plastic panels etc. Use of lubricant will give increased tool life (metals). 589030- Also highly suitable for thin sheet metal bodywork. Recommendation: The use of cutting oil such as No. 084205 size 0.25 extends the service life and permits more rapid progress through the material. Note: Arbors and hole saws are compatible with all commercially available bi-metal hole saws apart from Bosch SDS. For hole saws for stone see No. 788000,788040,788050. For carbide hole saws for steel see No. 118400,118500,119000. The accessory system: Hexagon 589430 Centre drill 589310_30 589310_2105 J Holesaw, bi-metal size 14-30 mm Holesaw, bi-metal size 32-152 mm I 589010 / gO A o£ 0 w 589030 589050 Diame- ter 589010 a 58 9030 a 58 9050 recom- mended speed steel recom- mended speed INOX recom- mended speed aluminium a 589010 a 58 9030 a 58 9050 recom- mended speed steel recom- mended speed IN0X recom- mended speed aluminium jfaGaiant LENOX 4. Hole saw, bimetal HOLE . jfeGarant LENOX 4. Hole saw, bimetal hole . min-1 min-1 min-1 min-1 min-1 min-1 9.11 15.50 - 580 300 900 15.54 21.64 - 160 80 240 9.11 12.43 - 550 275 825 15.54 21.64 8.55 150 75 225 9.11 12.43 - 500 250 750 15.54 21.64 8.55 140 70 220 9.11 12.43 4.86 460 230 690 16.49 23.32 9.14 130 65 205 9.11 12.43 - 445 220 660 16.49 23.32 - 130 65 200 9.11 12.43 - 425 210 630 16.49 23.32 9.14 130 65 195 9.11 12.43 4.86 390 195 585 16.49 23.32 9.14 130 65 190 9.11 12.43 - 370 185 555 16.49 23.32 - 125 60 185 9.86 13.22 5.22 350 175 525 16.49 23.32 - 120 60 180 9.86 13.22 - 325 180 480 17.18 24.06 9.45 115 55 170 9.86 13.22 - 300 150 450 17.18 24.26 - 110 55 165 9.86 13.22 5.22 285 145 425 17.18 24.26 9.45 105 52 155 9.86 13.22 5.22 275 140 410 17.18 24.26 - 100 50 150 9.86 13.22 - 260 135 390 17.18 24.26 - 95 45 145 10.20 13.86 5.54 250 125 375 19.80 27.87 - 95 45 140 10.20 13.86 - 240 120 360 23.76 33.02 - 90 45 135 10.20 13.86 5.54 230 115 345 26.14 36.23 - 85 40 120 10.20 13.86 - 220 110 330 28.22 39.36 - 80 40 120 10.20 13.86 - 210 105 315 36.83 51.68 - 80 40 120 10.20 13.86 - 205 100 305 41.58 59.55 - 75 35 105 12.53 17.52 6.89 195 95 295 50.69 71.28 - 75 35 105 12.53 17.52 - 190 95 285 56.63 79.35 - 70 35 105 12.53 17.52 - 180 90 270 62.77 88.07 - 65 30 90 12.53 17.52 6.89 170 85 255 75.04 104.94 - 60 30 85 15.54 21.64 - 165 80 245 87.12 123.26 - 60 30 85 lenox , Hole saws carbide Carbide-tipped teeth ensure an unrivalled cutting performance and tool life. Quick cutting. Application: For cutting stainless steel, fibre-reinforced plastics (GRP / CRP), plasterboard, concrete, sandwich composites, hardwoods. Variable tooth pitch 3/4 tpi, maximum cutting depth for all sizes 38 mm. We recommend starting at a medium speed to avoid tilting and scorching (see speed table for bi-metal hole saws - cutting steel). Blows and impacts on carbide cutters can lead to splintering. Note: Diamond hole saws for cutting glass, tiles, ceramic etc. are available on request. Carbide-tipped teeth Diameter a 589060 Carbide hole saw 26.09 27.42 28.91 32.63 34.80 35.79 36.93 38.81 44.01 58.01 62.96 59.20 71.58 94.80 380
