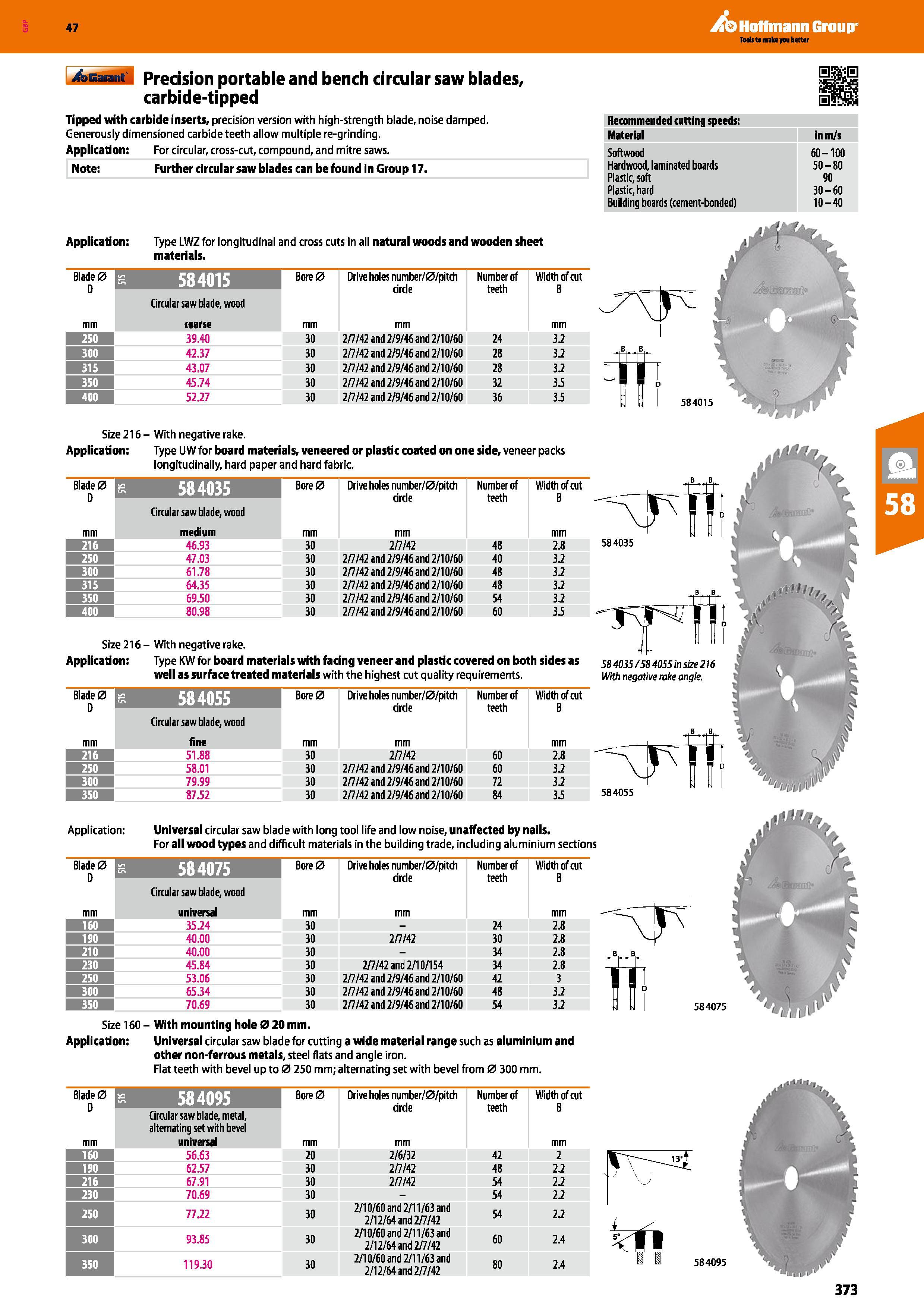

Hoffmann Group 47 Precision portable and bench circular saw blades, carbide-tipped Tipped with carbide inserts, precision version with high-strength blade, noise damped. Generously dimensioned carbide teeth allow multiple re-grinding. Application: For circular, cross-cut, compound, and mitre saws. Note: Further circular saw blades can be found in Group 17. Application: Type LWZ for longitudinal and cross cuts in all natural woods and wooden sheet materials. Size 216 - With negative rake. Application: Type UW for board materials, veneered or plastic coated on one side, veneer packs longitudinally, hard paper and hard fabric. Size 216 - With negative rake. Application: Type KW for board materials with facing veneer and plastic covered on both sides as well as surface treated materials with the highest cut quality requirements. Recommended cutting speeds: Material in m/s Softwood Hardwood, laminated boards Plastic, soft Plastic, hard Building boards (cement-bonded) 60-100 50-80 90 30-60 10-40 Blade 0 D a 584015 Bore0 Drive holes number/0/pitdi circle Number of teeth Width of cut B Circular saw blade, wood mm coarse mm 250 39.40 30 2/7/42 and 2/9/46 and 2/10/60 24 3.2 300 42.37 30 2/7/42 and 2/9/46 and 2/10/60 28 3.2 315 43.07 30 2/7/42 and 2/9/46 and 2/10/60 28 3.2 350 45.74 30 2/7/42 and 2/9/46 and 2/10/60 32 3.5 400 52.27 30 2/7/42 and 2/9/46 and 2/10/60 36 3.5 Blade 0 D mm a 584035 Bore0 mm Drive holes number/0/pitch circle mm Number of teeth Width of cut B mm Circular saw blade, wood medium 216 46.93 30 2/7/42 48 2.8 250 47.03 30 2/7/42 and 2/9/46 and 2/10/60 40 3.2 300 61.78 30 2/7/42 and 2/9/46 and 2/10/60 48 3.2 315 64.35 30 2/7/42 and 2/9/46 and 2/10/60 48 3.2 350 69.50 30 2/7/42 and 2/9/46 and 2/10/60 54 3.2 400 80.98 30 2/7/42 and 2/9/46 and 2/10/60 60 3.5 Blade 0 D a 584055 Bore0 Drive holes number/0/pitch circle Number of teeth Width of cut B Circular saw blade, wood mm fine mm 216 51.88 30 2/7/42 60 2.8 250 58.01 30 2/7/42 and 2/9/46 and 2/10/60 60 3.2 300 79.99 30 2/7/42 and 2/9/46 and 2/10/60 72 3.2 350 87.52 30 2/7/42 and 2/9/46 and 2/10/60 84 3.5 Application: Universal circular saw blade with long tool life and low noise, unaffected by nails. For all wood types and difficult materials in the building trade, including aluminium sections Blade 0 D a 584075 Bore0 Drive holes number/0/pitdi circle Number of teeth Width of cut B Circular saw blade, wood mm universal mm 160 35.24 30 - 24 2.8 190 40.00 30 2/7/42 30 2.8 210 40.00 30 - 34 2.8 230 45.84 30 2/7/42 and 2/10/154 34 2.8 53.06 30 2/7/42 and 2/9/46 and 2/10/60 42 3 300 65.34 30 2/7/42 and 2/9/46 and 2/10/60 48 3.2 350 70.69 30 2/7/42 and 2/9/46 and 2/10/60 54 3.2 Size 160 - With mounting hole 0 20 mm. Application: Universal circular saw blade for cutting a wide material range such as aluminium and other non-ferrous metals, steel flats and angle iron. Flat teeth with bevel up to 0 250 mm; alternating set with bevel from 0 300 mm. Blade 0 D mm a 584095 Bore0 Drive holes number/0/pitdi circle mm Number of teeth Width of cut B mm Circular saw blade, metal, alternating set with bevel universal mm 160 56.63 20 2/6/32 42 2 190 62.57 30 2/7/42 48 2.2 216 67.91 30 2/7/42 54 2.2 230 70.69 30 - 54 2.2 250 77.22 30 2/10/60 and 2/11/63 and 2/12/64 and 2/7/42 54 2.2 300 93.85 30 2/10/60 and 2/11/63 and 2/12/64 and 2/7/42 60 2.4 350 119.30 30 2/10/60 and 2/11/63 and 2/12/64 and 2/7/42 80 2.4 584095 373
