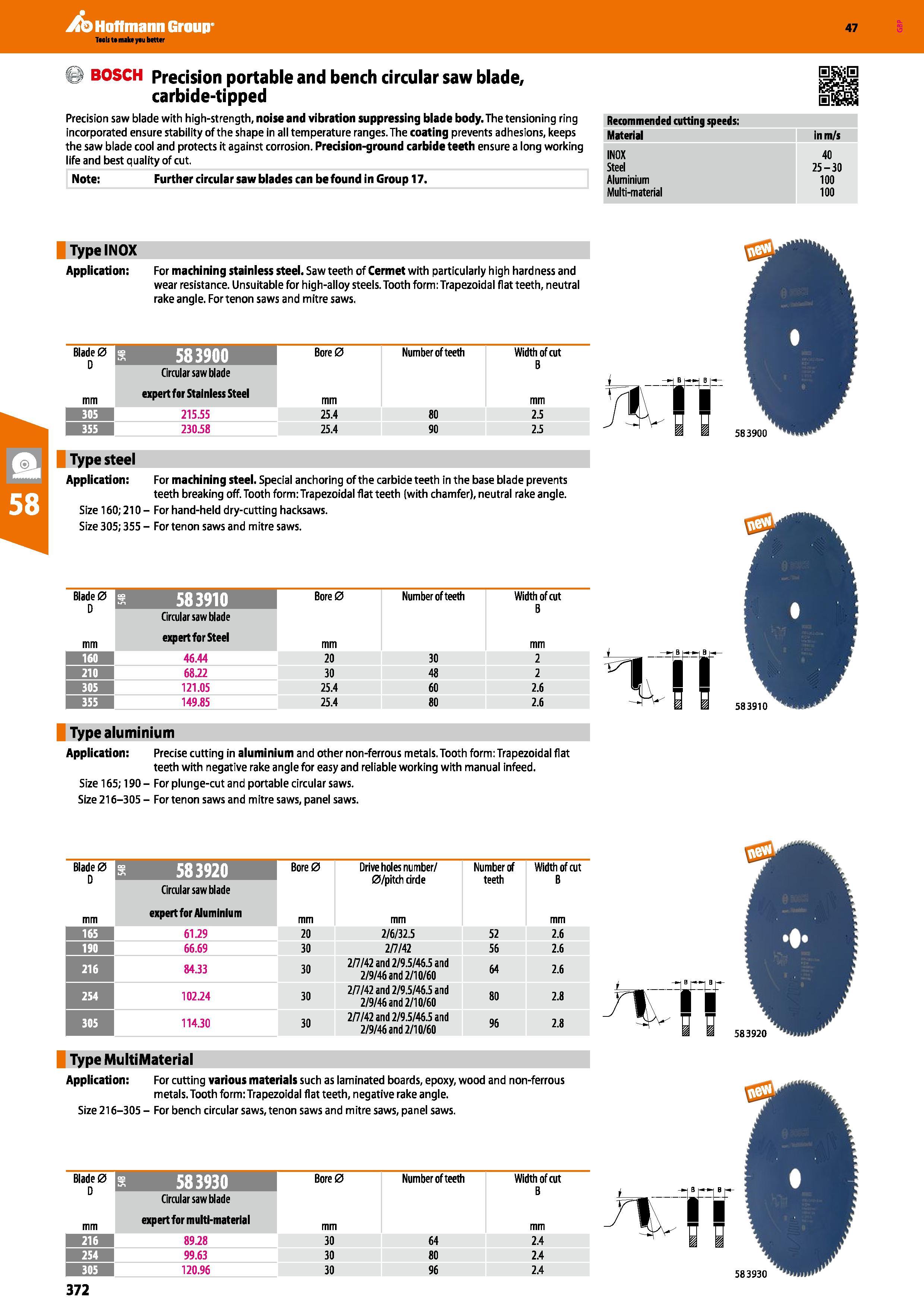

Hoffmann Group 47 BOSCH Precision portable and bench circular saw blade, carbide-tipped Precision saw blade with high-strength, noise and vibration suppressing blade body. The tensioning ring incorporated ensure stability of the shape in all temperature ranges. The coating prevents adhesions, keeps the saw blade cool and protects it against corrosion. Precision-ground carbide teeth ensure a long working life and bestqualityofcut. Note: Further circular saw blades can be found in Group 17. Recommended cutting speeds: Material in m/s INOX 40 Steel 25-30 Aluminium 100 Multi-material 100 Type INOX Application: For machining stainless steel. Saw teeth of Cermet with particularly high hardness and wear resistance. Unsuitable for high-alloy steels. Tooth form: Trapezoidal flat teeth, neutral rake angle. For tenon saws and mitre saws. Blade 0 583900 Bore0 Number of teeth Width of cut B D Circular saw blade mm expert for Stainless Steel mm 305 H 215.55 25.4 80 2.5 355 1 230.58 25.4 90 2.5 Type steel Type aluminium it Application: For machining steel. Special anchoring of the carbide teeth in the base blade prevents teeth breaking off. Tooth form: Trapezoidal flat teeth (with chamfer), neutral rake angle. Size 160; 210 - For hand-held dry-cutting hacksaws. Size 305; 355 - For tenon saws and mitre saws. Blade 0 D s 583910 Bore0 Number of teeth Width of cut B Circular saw blade mm expert for Steel mm 160 46.44 20 30 2 210 68.22 30 48 2 305 121.05 25.4 60 2.6 355 149.85 25.4 80 2.6 Application: Precise cutting in aluminium and other non-ferrous metals. Tooth form: Trapezoidal flat teeth with negative rake angle for easy and reliable working with manual infeed. Size 165; 190 - For plunge-cut and portable circular saws. Size 216-305 - For tenon saws and mitre saws, panel saws. 583900 583910 Blade 0 D i 583920 Bore0 Drive holes number/ 0/pitch cirde Number of teeth Width of cut B Circular saw blade mm expert for Aluminium mm 165 61.29 20 2/6/32.5 52 2.6 190 66.69 30 2/7/42 56 2.6 216 84.33 30 2/7/42 and 2/9.5/46.5 and 2/9/46 and 2/10/60 64 2.6 254 102.24 30 2/7/42 and 2/9.5/46.5 and 2/9/46 and 2/10/60 80 2.8 305 114.30 30 2/7/42 and 2/9.5/46.5 and 2/9/46 and 2/10/60 96 2.8 Type MultiMaterial IT Application: For cutting various materials such as laminated boards, epoxy, wood and non-ferrous metals. Tooth form: Trapezoidal flat teeth, negative rake angle. Size 216-305 - For bench circular saws, tenon saws and mitre saws, panel saws. 583920 Blade 0 D s 58 3930 Bore0 Number of teeth Width of cut B Circular saw blade mm expert for multi-material mm 216 89.28 30 64 2.4 254 99.63 30 80 2.4 305 120.96 30 96 2.4 583930 372
