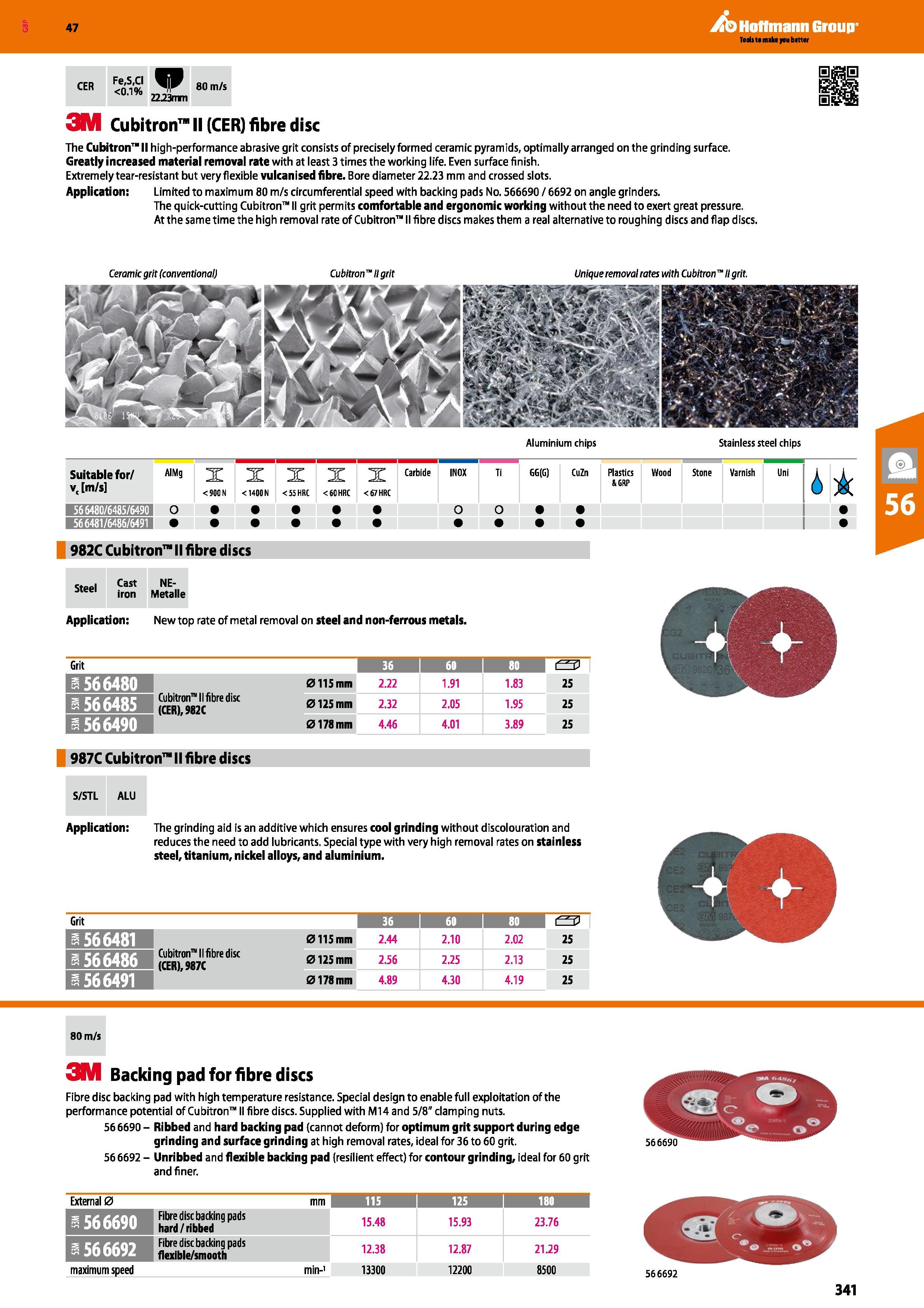

3M Cubitron II (CER) fibre disc The Cubitron II high-performance abrasive grit consists of precisely formed ceramic pyramids, optimally arranged on the grinding surface. Greatly increased material removal rate with at least 3 times the working life. Even surface finish. Extremely tear-resistant but very flexible vulcanised fibre. Bore diameter 22.23 mm and crossed slots. Application: Limited to maximum 80 m/s circumferential speed with backing pads No. 566690 / 6692 on angle grinders. The quick-cutting Cubitron II grit permits comfortable and ergonomic working without the need to exert great pressure. At the same time the high removal rate of Cubitron 11 fibre discs makes them a real alternative to roughing discs and flap discs. Ceramic grit (conventional) Cubitron II grit Unique removal rates with Cubitron II grit. Aluminium chips Stainless steel chips AIMg KKIlflTaiilfaHlI O r.f.liiiF/, ;' /,TEH 982C Cubitron II fibre discs Suitable for/ v( m/s X <900 N X < 1400 N X <55 HRC X <60 HRC X <67 HRC Carbide INOX Ti GG(G) CuZn Plastics 1GRP Wood Stone Varnish Uni i O o Application: New top rate of metal removal on steel and non-ferrous metals. Grit 1 36 i 60 i 80 Q) 2: 566480 Cubitron II fibre disc (CER), 982C 0115 mm 2.22 1.91 1.83 25 3: 566485 0125 mm 2.32 2.05 1.95 25 jE 566490 0178 mm 4.46 4.01 3.89 25 987C Cubitron II fibre discs S/STL ALU Application: The grinding aid is an additive which ensures cool grinding without discolouration and reduces the need to add lubricants. Special type with very high removal rates on stainless steel, titanium, nickel alloys, and aluminium. Grit 1 36 60 I 80 O 566481 0115 mm 2.44 2.10 2.02 25 3: l/'F-J .fJ Cubitron II fibre disc H'I'mI'I'M (CER). 987C 0125 mm 2.56 2.25 2.13 25 3 566491 0178 mm 4.89 4.30 4.19 25 80 m/s 3M Backing pad for fibre discs Fibre disc backing pad with high temperature resistance. Special design to enable full exploitation of the performance potential of Cubitron II fibre discs. Supplied with M14 and 5/8" clamping nuts. 56 6690 - Ribbed and hard backing pad (cannot deform) for optimum grit support during edge grinding and surface grinding at high removal rates, ideal for 36 to 60 grit. 56 6692 - Unribbed and flexible backing pad (resilient effect) for contour grinding, ideal for 60 grit and finer. External 0 mm 115 I 125 180 I a 566690 Fibre disc backing pads hard/ribbed 15.48 15.93 23.76 a 566692 Fibre disc backing pads flexible/smooth 12.38 12.87 21.29 maximum speed min-1 13300 12200 8500 566692
