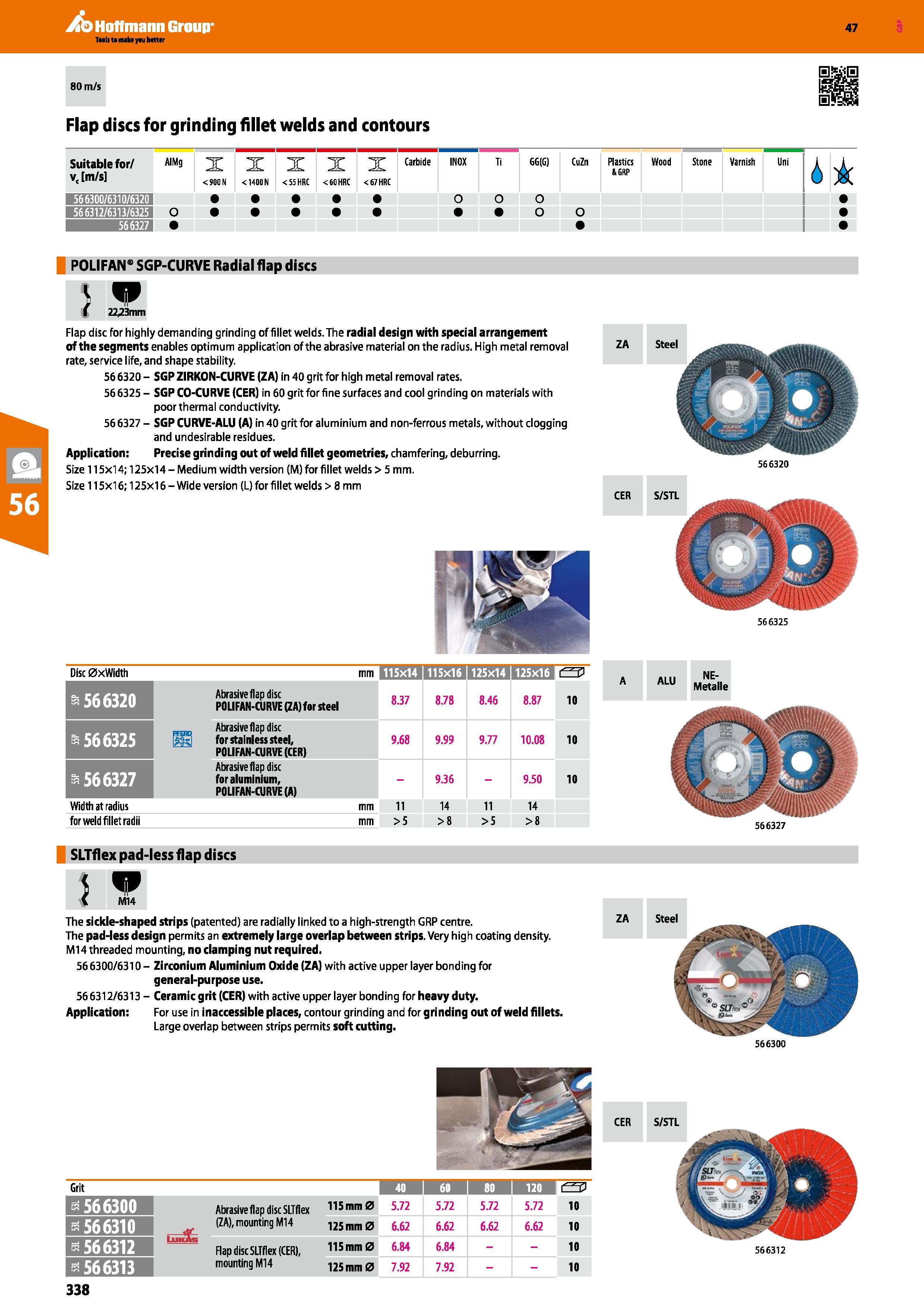

Hoffmann Group 47 80 m/s Flap discs for grinding fillet welds and contours Suitable for/ v, m/s AIMg X < 900 N X < 1400 N X <55 HRC X < 60 HRC Carbide <67 HRC IN0X Ti 66(C) CuZn Plastics Wood l GRP Stone Varnish Uni iic 566300/6310/6320 o 566312/6313/6325 O o O 566327 POLIFAN SGP-CURVE Radial flap discs \ I 22,23mm Flap disc for highly demanding grinding of fillet welds. The radial design with special arrangement of the segments enables optimum application of the abrasive material on the radius. High metal removal rate, service life, and shape stability. 56 6320 - SGP ZIRKON-CURVE (ZA) in 40 grit for high metal removal rates. 566325- SGP CO-CURVE (CER) in 60 grit for fine surfaces and cool grinding on materials with poor thermal conductivity. 566327 - SGPCURVE-ALU (A) in 40 grit for aluminium and non-ferrous metals, without clogging and undesirable residues. Application: Precise grinding out of weld fillet geometries, chamfering, deburring. Size 115x14; 125x14 - Medium width version (M) for fillet welds > 5 mm. Size 115x16; 125x16-Wide version (L) for fillet welds > 8 mm 566325 Disc 0xWidth mm 566320 Abrasive flap disc POUFAN-CURVE (ZA)for steel 8.37 8.78 8.46 8.87 10 “566325 Abrasive flap disc HI for stainless steel, POUFAN-CURVE (CER) 9.68 9.99 9.77 10.08 10 “566327 Abrasive flap disc for aluminium, POUFAN-CURVE (A) - 9.36 - 9.50 10 Width at radius mm 11 14 11 14 for weld filet radii mm >5 >8 >5 >8 NE- A ALU Metalle SLTflex pad-less flap discs V M14 The sickle-shaped strips (patented) are radially linked to a high-strength GRP centre. The pad-less design permits an extremely large overlap between strips. Very high coating density. M14 threaded mounting, no clamping nut required. 566300/6310- Zirconium Aluminium Oxide (ZA) with active upper layer bonding for general-purpose use. 56 6312/6313 - Ceramic grit (CER) with active upper layer bonding for heavy duty. Application: For use in inaccessible places, contour grinding and for grinding out of weld fillets. Large overlap between strips permits soft cutting. Grit 1 40 60 mim 120 S' (3 566300 Abrasive flap disc SLTflex 115 mm 0 5.72 5.72 5.72 5.72 10 566310 (ZA), mounting M14 I Iaamfl£_ 125 mm0 6.62 6.62 6.62 6.62 10 566312 Flap disc SLTflex (CER), 115 mm 0 6.84 6.84 10 566313 mounting M14 125 mm0 7.92 7.92 10 566312 566327 566300 338
