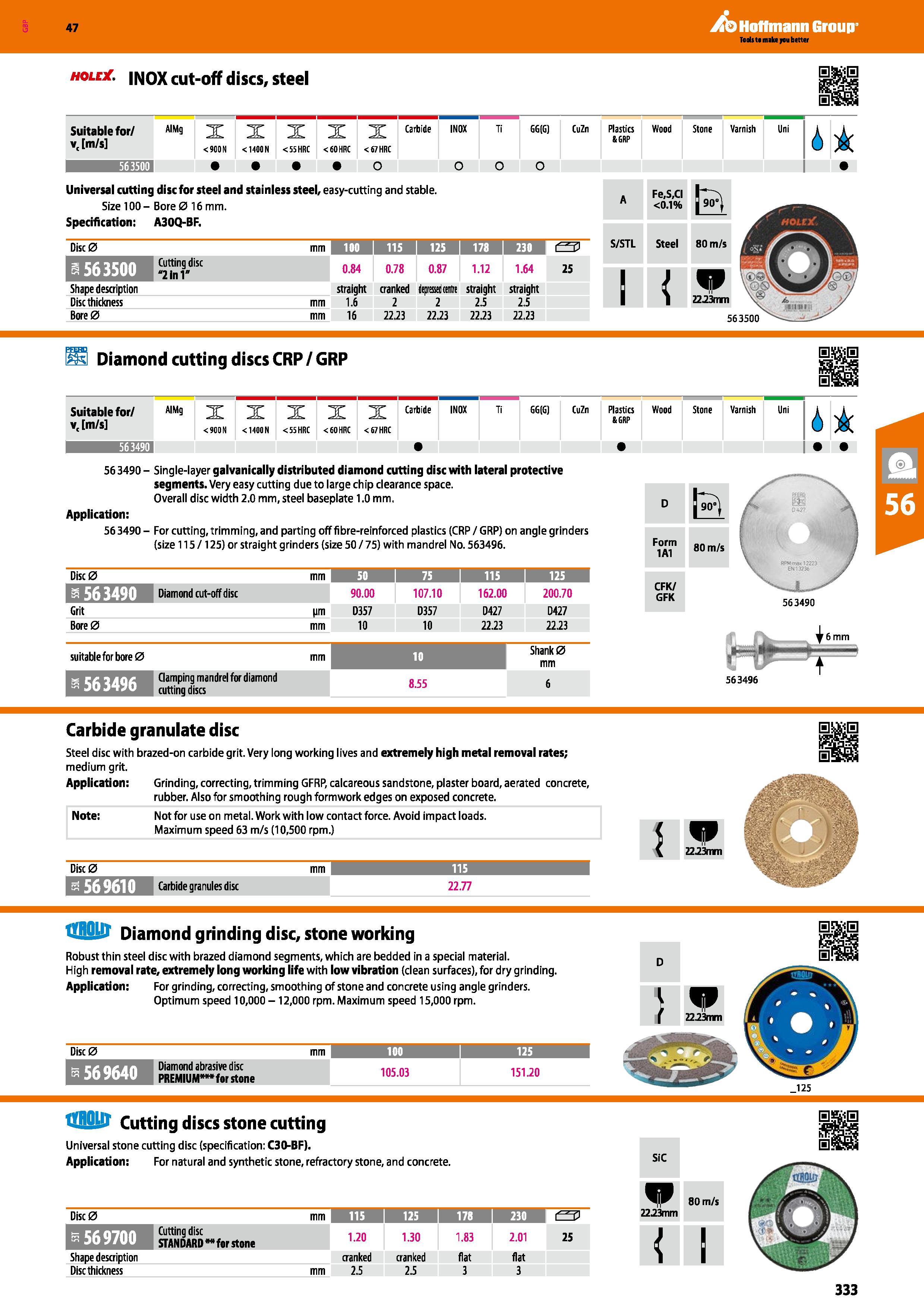

333 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.333

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 333 0333 ENG Lab2u

Hoffmann Group 47 hole . INOX cut-off discs, steel Suitable for/ AIM9 v( m/s X <900N X <1400 N X <55 HRC X <60 HRC 3 Carbide IN0X <67 HRC Ti GG(C) CuZn Plastics Wood Stone Varnish Uni &GRP I 563500 o O Universal cutting disc for steel and stainless steel, easy-cutting and stable. Size 100- Bore 0 16 mm. Specification: A30Q-BF. Disc 0 mm 100 1 115 1 IK 178 563500 Cutting disc “2 ini" 0.84 0.78 0.87 1.12 1.64 25 Shape description straight cranked dipreiseilceirtre straight straight Disc thickness mm 1.6 2 2 2.5 2.5 Bore0 mm 16 22.23 22.23 22.23 22.23 A Fe,S,CI <0.1% \w\ 1 S/STL Steel 80 m/s 9 22.23mm Diamond cutting discs CRP / GRP 563500 Suitable for/ AIM9 v, m/s X < SCO N X <1400 N X <55 HRC X <60 HRC 3 Carbide INOX <67 HRC Ti GG G) CuZn Plastics Wood Stone Varnish ft GRP Uni 6 ± 563490 563490- Single-layer galvanically distributed diamond cutting disc with lateral protective segments. Very easy cutting due to large chip clearance space. Overall disc width 2.0 mm, steel baseplate 1.0 mm. Application: 563490- For cutting, trimming, and parting off fibre-reinforced plastics (CRP/GRP) on angle grinders (size 115 /125) or straight grinders (size 50 / 75) with mandrel No. 563496. Disc 0 mm 50 1 75 1 115 1 125 1-563490 90.00 107.10 162.00 200.70 Grit Bore0 im mm D357 10 D357 10 D427 22.23 D427 22.23 suitable for bore 0 mm 10 Shank 0 mm 563496 Clamping mandrel for diamond cutting discs 8.55 6 D Form 1A1 80 m/s CFK/ GFK 563490 C 563496 Carbide granulate disc Steel disc with brazed-on carbide grit. Very long working lives and extremely high metal removal rates; medium grit. Application: Note: Grinding, correcting, trimming GFRP, calcareous sandstone, plaster board, aerated concrete, rubber. Also for smoothing rough formwork edges on exposed concrete. Not for use on metal. Work with low contact force. Avoid impact loads. Maximum speed 63 m/s (10,500 rpm.) Disc0 mm 115 1 EBiliVjii IB Carbide granules disc 22.77 9 22.23mm Diamond grinding disc, stone working Robust thin steel disc with brazed diamond segments, which are bedded in a special material. High removal rate, extremely long working life with low vibration (clean surfaces), for dry grinding. Application: For grinding, correcting, smoothing of stone and concrete using angle grinders. Optimum speed 10,000 -12,000 rpm. Maximum speed 15,000 rpm. Disc0 mm 100 I 125 -569640 Diamond abrasive disc PREMIUM for stone 105.03 151.20 Cutting discs stone cutting Universal stone cutting disc (specification: C30-BF). Application: For natural and synthetic stone, refractory stone, and concrete. Disc0 115 I 125 178 ; 230 O 569700 Cutting disc STANDARD far stone 1.20 1.30 1.83 2.01 25 Shape description cranked cranked flat flat Disc thickness mm 2.5 2.5 3 3 SiC 2223mm 80 m/s 333
