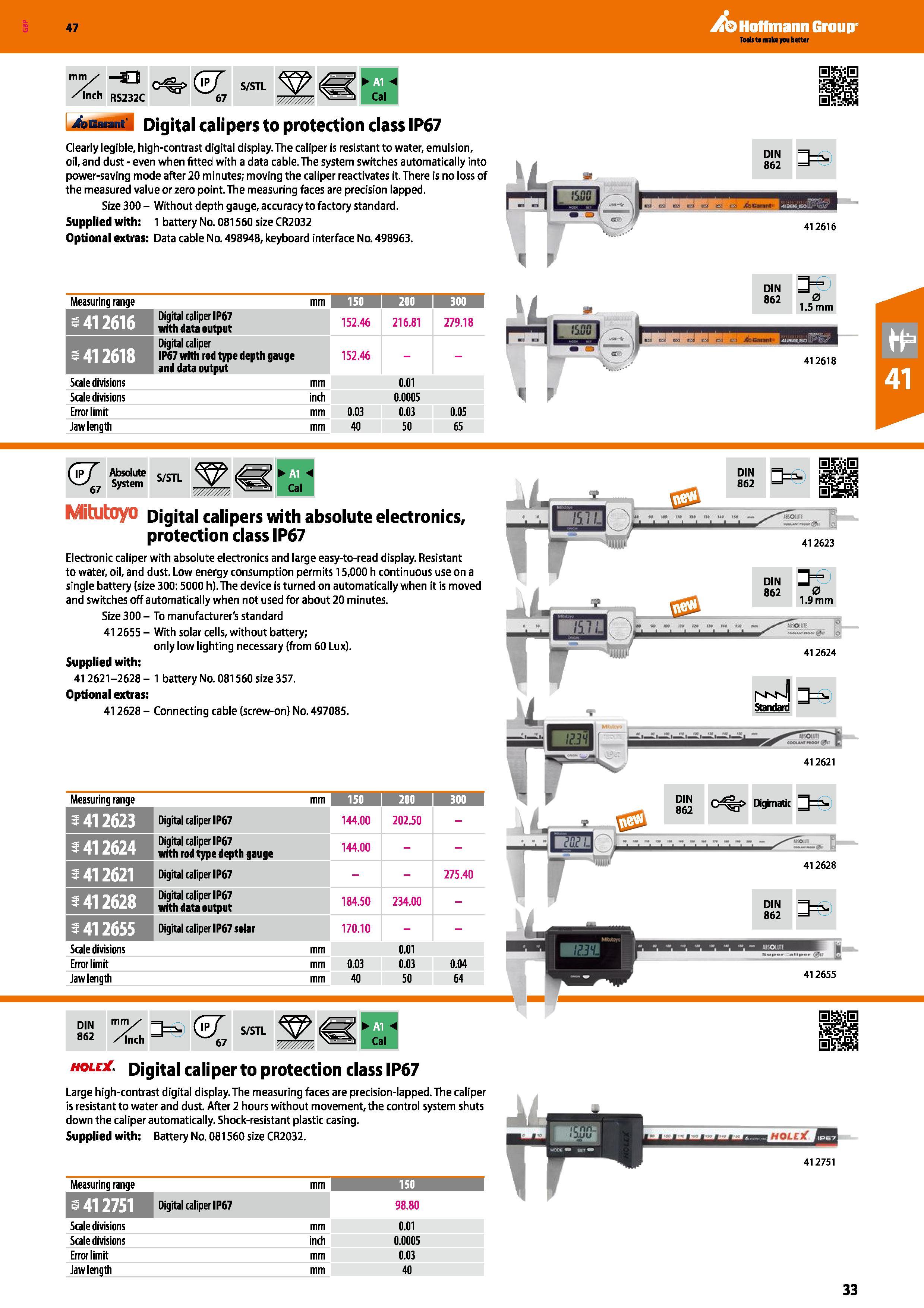

Hoffmann Group 47 RS232C 67 S/STL Cal 4asatmid Digital calipers to protection class IP67 Clearly legible, high-contrast digital display. The caliper is resistant to water, emulsion, oil, and dust - even when fitted with a data cable. The system switches automatically into power-saving mode after 20 minutes; moving the caliper reactivates it. There is no loss of the measured value or zero point. The measuring faces are precision lapped. Size 300 - Without depth gauge, accuracy to factory standard. Supplied with: 1 battery No. 081560 size CR2032 Optional extras: Data cable No. 498948, keyboard interface No. 498963. u DIN 862 1 I 412616 Measuring range mm 150 200 300 I Digital caliper IP67 with data output 152.46 216.81 279.18 5 412618 Digital caliper IP67 with rod type depth gauge and data output 152.46 Scale divisions mm 0.01 Scale divisions inch 0.0005 Error limit mm 0.03 0.03 0.05 Jaw length mm 40 50 65 DIN 862 0 1.5 mm 412618 % t
