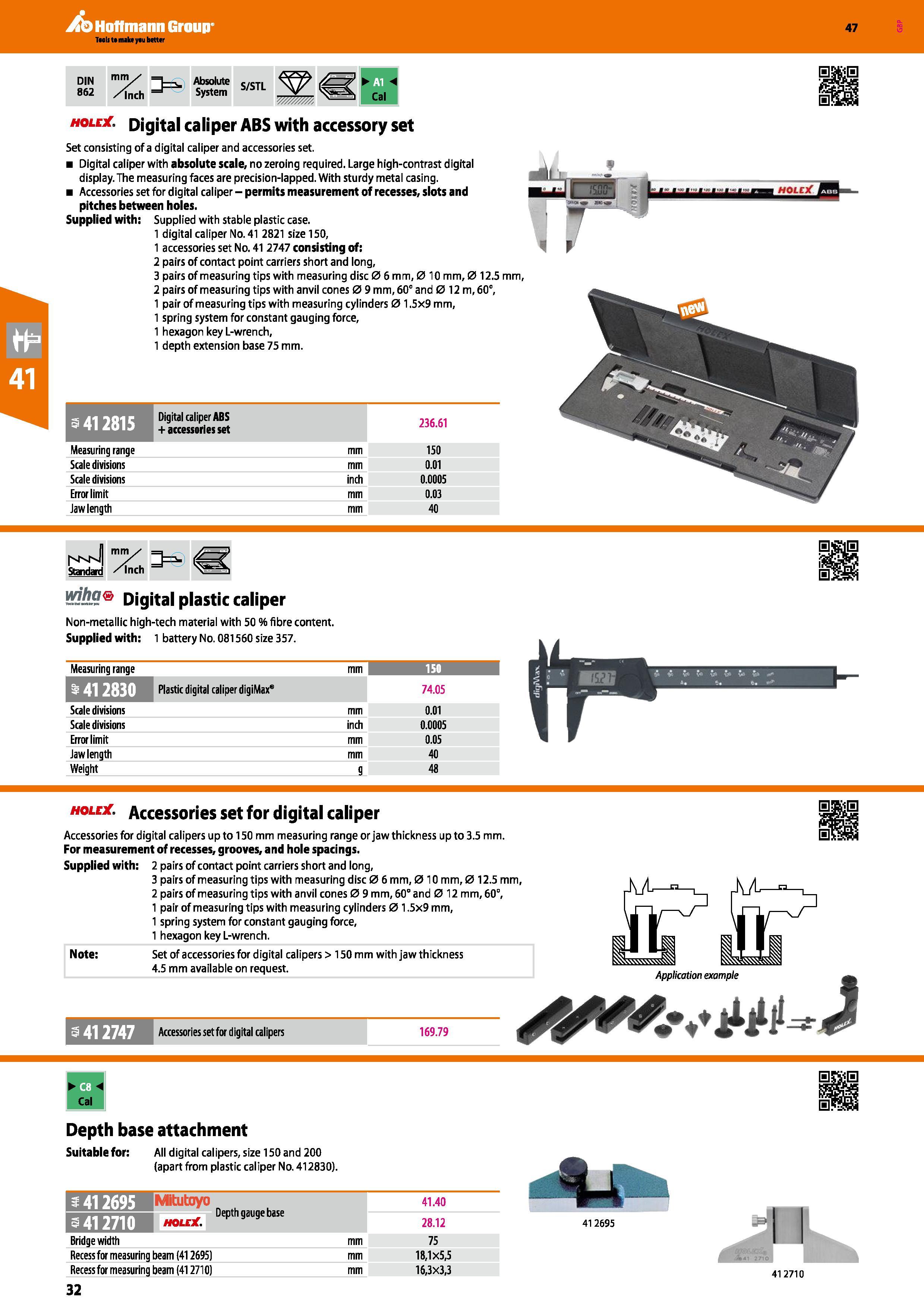

Digital caliper ABS with accessory set Set consisting of a digital caliper and accessories set. Digital caliper with absolute scale, no zeroing required. Large high-contrast digital display. The measuring faces are precision-lapped. With sturdy metal casing. Accessories set for digital caliper - permits measurement of recesses, slots and pitches between holes. Supplied with: Supplied with stable plastic case. 1 digital caliper No. 41 2821 size ISO, 1 accessories set No. 41 2747 consisting of: 2 pairs of contact point carriers short and long, 3 pairs of measuring tips with measuring disc 0 6 mm, 0 10 mm, 0 12.5 mm, 2 pairs of measuring tips with anvil cones 0 9 mm, 60° and 012m, 60°, 1 pair of measuring tips with measuring cylinders 01.5x9 mm, 1 spring system for constant gauging force, 1 hexagon key L-wrench, 1 depth extension base 75 mm. I HOLZ C Digital caliper ABS + accessories set 236.61 Measuring range mm 150 Scale divisions mm 0.01 Scale divisions inch 0.0005 Error limit mm 0.03 Jaw length mm 40 \HdhS Digital plastic caliper Non-metallic high-tech material with 50 % fibre content. Supplied with: 1 battery No. 081560 size 357. Measuring range mm 150 S Plastic digital caliper digiMax” 74.05 Scale divisions mm 0.01 Scale divisions inch 0.0005 Error limit mm 0.05 Jaw length mm 40 Weight 9 48 holex. Accessories set for digital caliper Accessories for digital calipers up to 150 mm measuring range or jaw thickness up to 3.5 mm. For measurement of recesses, grooves, and hole spacings. Supplied with: 2 pairs of contact point carriers short and long, 3 pairs of measuring tips with measuring disc 0 6 mm, 010 mm, 0 12.5 mm, 2 pairs of measuring tips with anvil cones 0 9 mm, 60° and 0 12 mm, 60°, 1 pair of measuring tips with measuring cylinders 01.5x9 mm, 1 spring system for constant gauging force, 1 hexagon key L-wrench. Note: Set of accessories for digital calipers > 150 mm with jaw thickness 4.5 mm available on request. 3 412747 Accessories set for digital calipers 169.79 Depth base attachment Suitable for: All digital calipers, size 150 and 200 (apart from plastic caliper No. 412830). Hi' I r/AlJMitutayo 41.40 holejc. °ePth 9augebase 28.12 Bridge width mm 75 Recess for measuring beam (412695) mm 18,1x5,5 Recess for measuring beam (412710) mm 16,3x3,3 32 41 2695 412710
