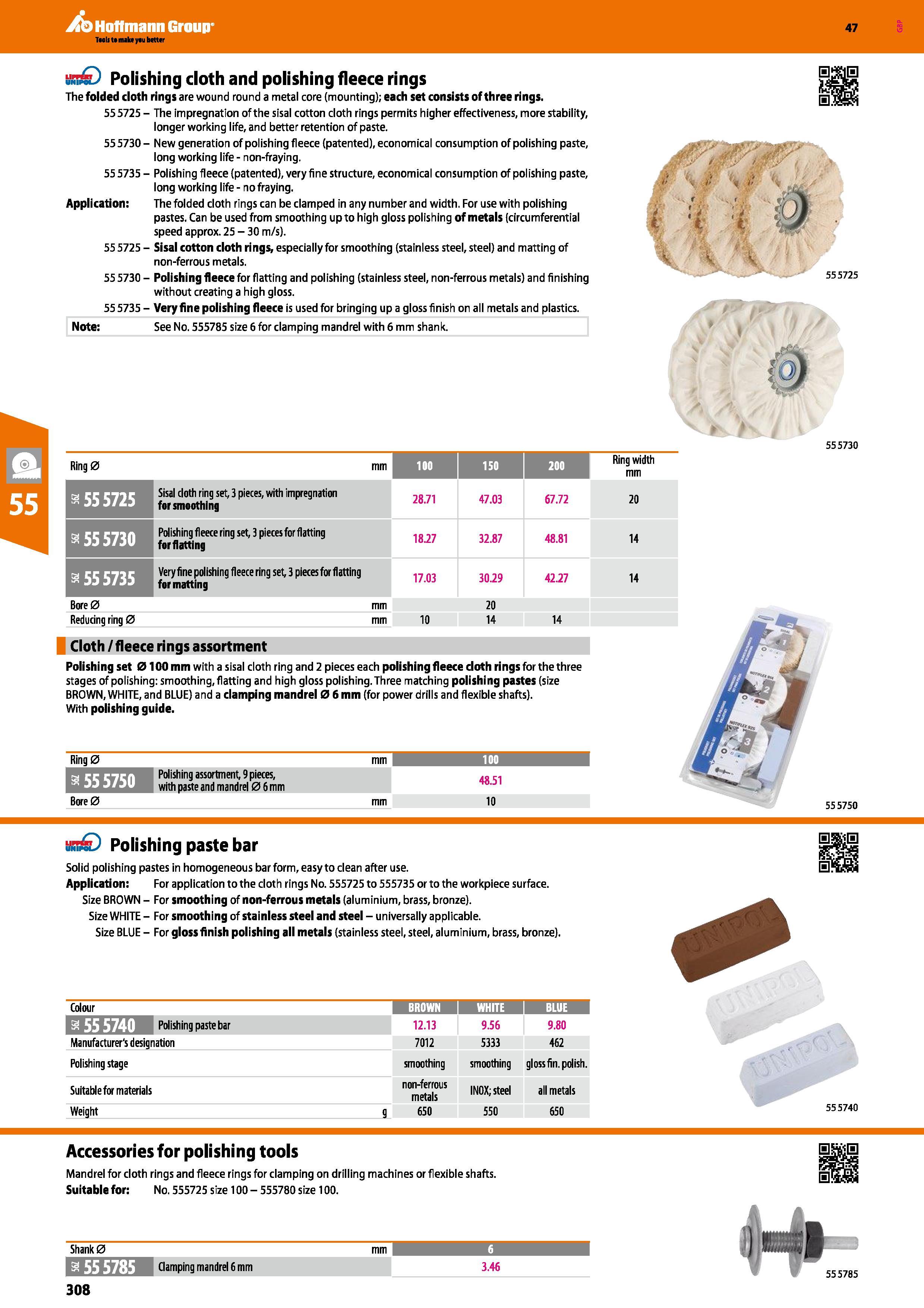

Hoffmann Group 47 00 Polishing cloth and polishing fleece rings The folded cloth rings are wound round a metal core (mounting); each set consists of three rings. 555725 - The impregnation of the sisal cotton cloth rings permits higher effectiveness, more stability, longer working life, and better retention of paste. 55 5730 - New generation of polishing fleece (patented), economical consumption of polishing paste, long working life - non-fraying. 55 5735 - Polishing fleece (patented), very fine structure, economical consumption of polishing paste, long working life - no fraying. Application: The folded cloth rings can be clamped in any number and width. For use with polishing pastes. Can be used from smoothing up to high gloss polishing of metals (circumferential speed approx. 25 - 30 m/s). 55 5725 - Sisal cotton cloth rings, especially for smoothing (stainless steel, steel) and matting of non-ferrous metals. 55 5730 - Polishing fleece for flatting and polishing (stainless steel, non-ferrous metals) and finishing without creating a high gloss. 555735 - Very fine polishing fleece is used for bringing up a gloss finish on all metals and plastics. Note: See No. 555785 size 6 for clamping mandrel with 6 mm shank. 555725 555730 Ring0 mm 100 150 200 a 55 5725 Sisal doth ring set, 3 pieces, with impregnation for smoothing 28.71 47.03 67.72 a 55 5730 Polishing fleece ring set, 3 pieces for flatting for flatting 18.27 32.87 48.81 a 55 5735 Very fine polishing fleece ring set 3 pieces for flatting formatting 17.03 30.29 42.27 Bore0 mm 20 Reducing ring 0 mm 10 14 14 Ring width mm 20 14 14 Cloth / fleece rings assortment Polishing set 0100 mm with a sisal cloth ring and 2 pieces each polishing fleece cloth rings for the three stages of polishing: smoothing, flatting and high gloss polishing. Three matching polishing pastes (size BROWN, WHITE, and BLUE) and a clamping mandrel 0 6 mm (for power drills and flexible shafts). With polishing guide. Ring0 mm 100 I a 55 5750 Polishing assortment 9 pieces, with paste and mandrel 0 6 mm 48.51 Bore0 mm 10 ihRkD Polishing paste bar Solid polishing pastes in homogeneous bar form, easy to clean after use. Application: For application to the cloth rings No. 555725 to 555735 or to the workpiece surface. Size BROWN - For smoothing of non-ferrous metals (aluminium, brass, bronze). Size WHITE - For smoothing of stainless steel and steel - universally applicable. Size BLUE - For gloss finish polishing all metals (stainless steel, steel, aluminium, brass, bronze). Colour WHITE I BLUE Kj.vi.'TZ IB Polishing paste bar 12.13 9.56 9.80 Manufacturer's designation 7012 5333 462 Polishing stage smoothing smoothing gloss fin. polish. Suitable for materials non-ferrous metals IN0X; steel all metals Weight g 650 550 650 Accessories for polishing tools Mandrel for cloth rings and fleece rings for clamping on drilling machines or flexible shafts. Suitable for: No. 555725 size 100 - 555780 size 100. Shank 0 mm SfSHflBH'f '.''-.-i Kj.VfcT/1 I'M Clamping mandrel 6 mm 3.46 5750 55 5740
