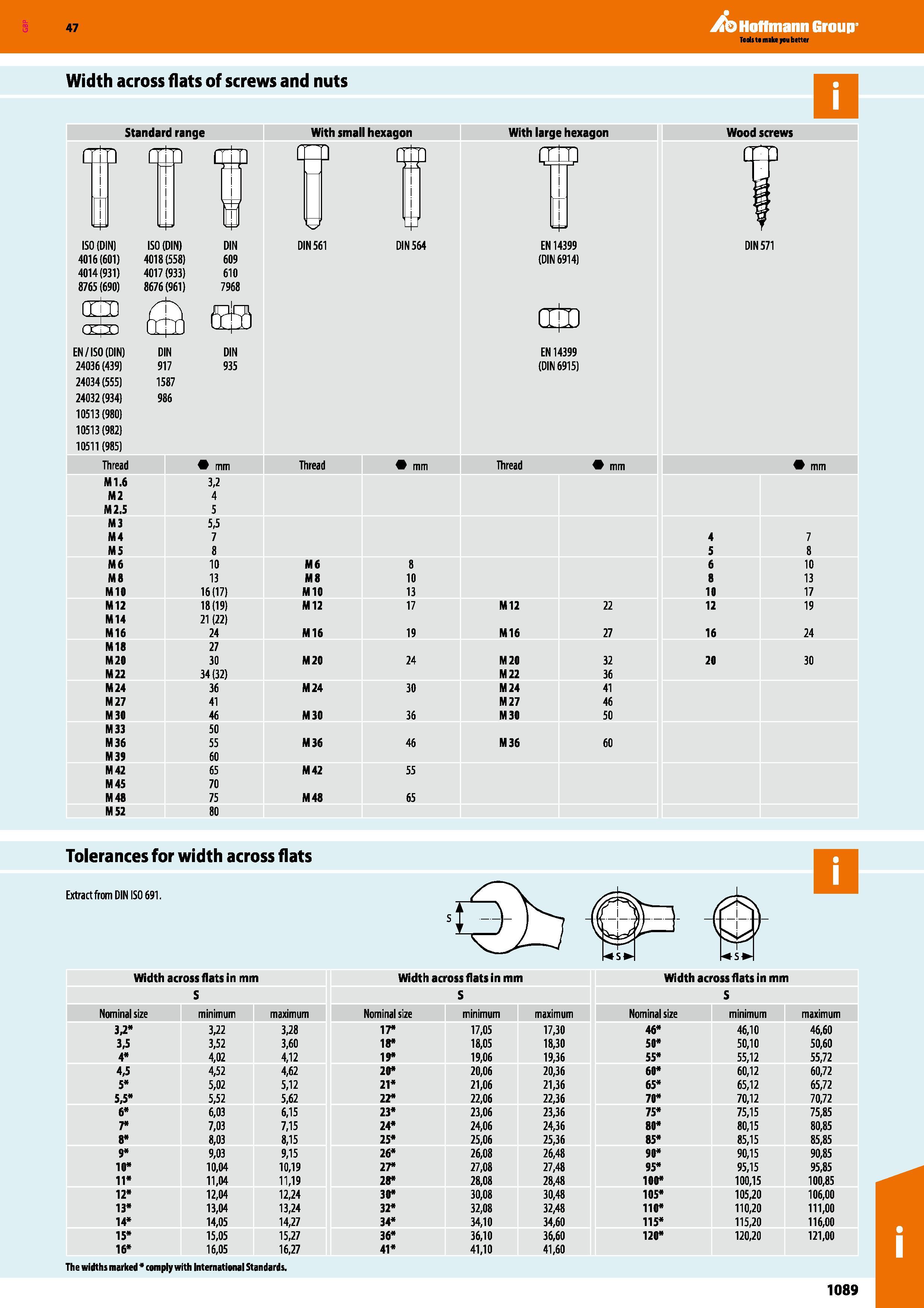

Hoffmann Group 47 Width across flats of screws and nuts Standard range c ISO (DIN 4016(601) 4014(931) 8765(690) CjD crpn EN/ISO (DIN) 24036(439 24034(555 24032(934) 10513(980) 10513(982) 10511(985) Thread M1.6 M2 M2.5 M3 M4 M5 M6 MS M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52 c + 917 1587 986 ISO (DIN) 4018(558) 4017(933) 8676(961) 609 610 7968 ilr 935 mm 3,2 4 5 5,5 7 8 10 13 16(17) 18(19) 21(22) 24 27 30 34(32) 36 41 46 50 55 60 65 70 75 80 With small hexagon CO With large hexagon ¥ J Wood screws (TT) DIN 561 DIN 564 EN 14399 (DIN 6914) oJd EN 14399 (DIN 6915) DIN 571 Thread Thread M6 M8 M10 M12 M16 M20 M24 M30 M36 M42 M48 10 13 17 19 24 30 36 46 55 65 M12 M16 M20 M22 M24 M27 M30 M36 22 27 32 36 41 46 50 60 4 5 6 8 10 12 16 20 10 13 17 19 24 30 Tolerances for width across flats Extract from DIN ISO 691. Width across flats in mm Width across flats in mm Width across flats in mm S S S Nominal size minimum maximum Nominal size minimum maximum Nominal size minimum maximum 3,2 3,22 3,28 17 17,05 17,30 46 46,10 46,60 3,5 3,52 3,60 18 18,05 18,30 50 50,10 50,60 4 4,02 4,12 19 19,06 19,36 55 55,12 55,72 4,5 4,52 4,62 20 20,06 20,36 60 60,12 60,72 5 5,02 5,12 21 21,06 21,36 65 65,12 65,72 5,5 5,52 5,62 22 22,06 22,36 70 70,12 70,72 6 6,03 6,15 23 23,06 23,36 75 75,15 75,85 7 7,03 7,15 24 24,06 24,36 80 80,15 80,85 8 8,03 8,15 25 25,06 25,36 85 85,15 85,85 9 9,03 9,15 26 26,08 26,48 90 90,15 90,85 10 10,04 10,19 2 7 27,08 27,48 95 95,15 95,85 11 11,04 11,19 28 28,08 28,48 100 100,15 100,85 12 12,04 12,24 30 30,08 30,48 105 105,20 106,00 13 13,04 13,24 32 32,08 32,48 110 110,20 111,00 14 14,05 14,27 34 34,10 34,60 115 115,20 116,00 15 15,05 15,27 36 36,10 36,60 120 120,20 121,00 16 16,05 16,27 41 41,10 41,60 The widths marked comply with International Standards. 1089
