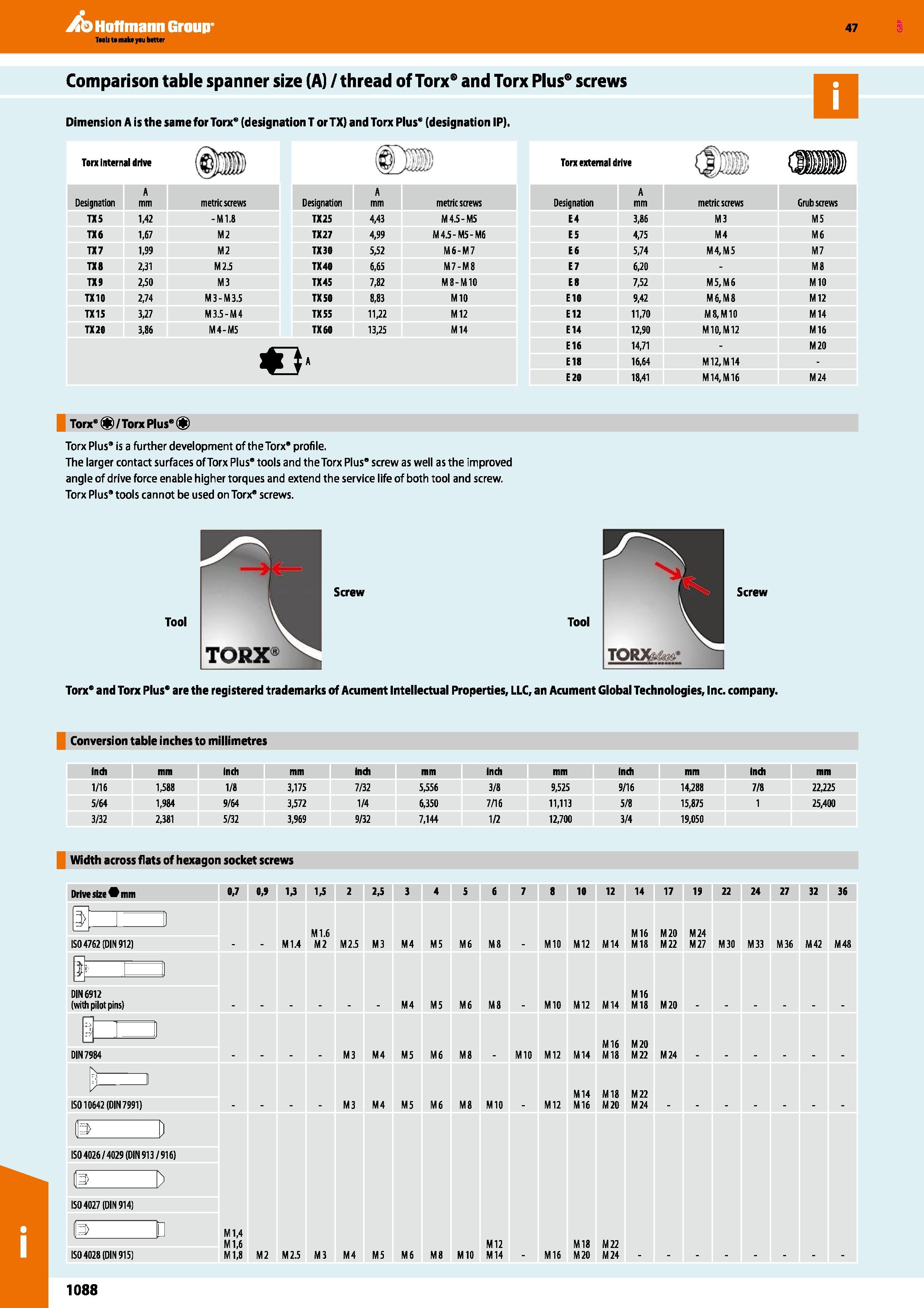

Hoffmann Group 47 Comparison table spanner size (A) / thread ofTorx6 and Torx Plus screws Dimension A is the same for Torx (designation T or TX) and Torx Plus8 (designation IP). Torx internal drive Torx external drive Torx8 /Torx Plus Torx Plus” is a further development of the Torx profile. The larger contact surfaces ofTorx Plus’ tools and theTorx Plus’ screw as well as the improved angle of drive force enable higher torques and extend the service life of both tool and screw. Torx Plus" tools cannot be used on Torx" screws. Tool Screw Tool Screw Torx" and Torx Plus are the registered trademarks of Acument Intellectual Properties, LLC, an Acument Global Technologies, Inc. company. Conversion table inches to millimetres Designation A mm metric screws Designation A mm metric screws Designation A mm metric screws Grub screws TX5 1,42 -M1.8 TX25 4,43 M45-M5 E4 3,86 M3 M5 TX6 1,67 M2 TX27 4,99 M4.5-M5-M6 E5 4,75 M4 M6 TX7 M2 TX30 5,52 M6-M7 E6 5,74 M4,M5 M7 TX8 2,31 M2i TX40 6,65 M7-M8 E7 6,20 - M8 TX9 2,50 M3 TX45 7,82 M8-M10 E8 7,52 M5,M6 M10 TX10 2,74 M3-M3.5 TX50 8,83 M10 E10 9,42 M6,M8 M12 TX 15 3,27 M3.5-M4 TX55 11,22 M12 E12 11,70 M8,M10 M14 TX20 3,86 M4-M5 TX60 13,25 M14 E14 12,90 M10.M12 M16 1 E16 14,71 - M20 3 E18 16,64 M12.M14 - E20 18,41 M14, M16 M24 inch mm inch mm indi mm inch mm Inch mm indi mm 1/16 1,588 1/8 3,175 7/32 5,556 3/8 9,525 9/16 14,288 7/8 22,225 5/64 1,984 9/64 3,572 1/4 6,350 7/16 11,113 5/8 15,875 1 25,400 3/32 2,381 5/32 3,969 9/32 7,144 1/2 12,700 3/4 19,050 Width across flats of hexagon socket screws Drive size mm >>7 M 1,3 1,5 2 2,5 3 4 5 6 7 8 10 12 14 17 19 22 24 27 32 36 ISO 4762 (DIN 912) DIN 6912 (with pilot pins) I DIN 7984 ISO 10642 (DIN 7991) M1.6 M16 M20 M24 M 1.4 M2 M2.5 M3 M4 M5 M6 M8 - M10 M12 M14 M18 M22 M27 M30 M33 M36 M42 M48 M16 M4 M5 M6 M8 - M10 M12 M14 M18 M20 M16 M20 M3 M4 M5 M6 M8 - M10 M12 M14 M18 M22 M24 M14 M18 M22 M3 M4 M5 M6 M8 M10 - M12 M16 M20 M24 - ISO 4026 / 4029 (DIN 913/916) ISO 4027 (DIN 914) IS04028 (DIN 915) 1088 M1,4 Ml,6 M12 M18 M22 Ml,8 M2 M2i M3 M4 MS M6 M8 M10 M14 - M16 M20 M24
