99 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.99

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 99 0099 ENG Lab2u

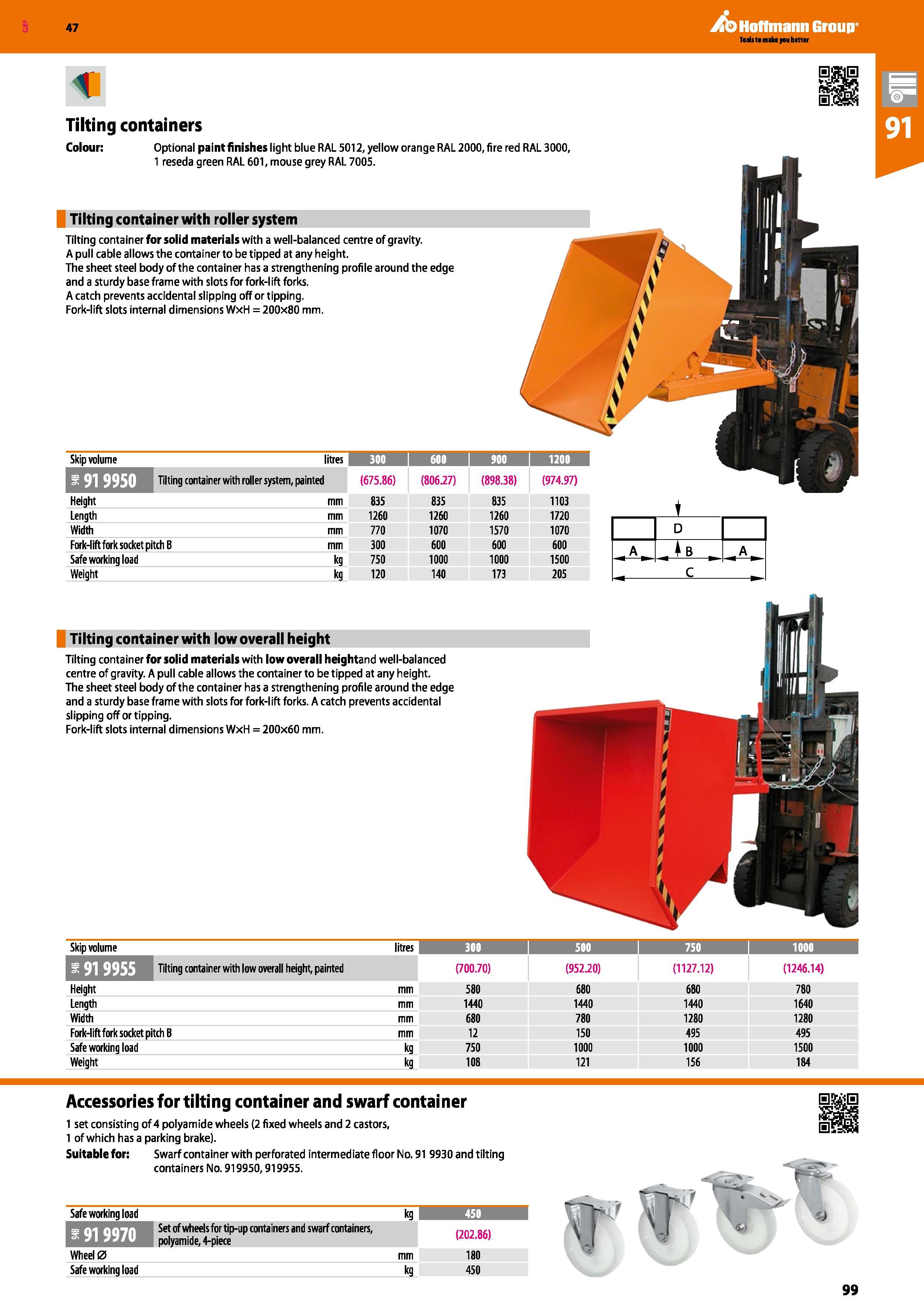

Hoffmann Group 47 Tads ta make jau better Tilting container with low overall height Tilting container for solid materials with low overall heightand well-balanced centre of gravity. A pull cable allows the container to be tipped at any height. The sheet steel body of the container has a strengthening profile around the edge and a sturdy base frame with slots for fork-lift forks. A catch prevents accidental slipping off or tipping. Fork-lift slots internal dimensions WxH = 200x60 mm. Skip volume litres 310 i 500 750 I 1000 1 Tilting container with low overall height, painted (700.70) (952.20) (1127.12) (1246.14) Height mm 580 680 680 780 Length mm 1440 1440 1440 1640 Width mm 680 780 1280 1280 Fork-lift fork socket pitch B mm 12 150 495 495 Safe working load kg 750 1000 1000 1500 Weight kg 108 121 156 184 Accessories for tilting container and swarf container 1 set consisting of 4 polyamide wheels (2 fixed wheels and 2 castors, 1 of which has a parking brake). Suitable for: Swarf container with perforated intermediate floor No. 91 9930 and tilting containers No. 919950,919955. Safe working load kg 450 HilEWiB Set of wheels for tip-up containers and swarf containers, polyamide, 4-piece (202.86) Wheel 0 mm 180 Safe working load kg 450 Skip volume litres 300 600 900 I 1200 Tilting container with roller system, painted (675.86) (806.27) (898.38) (974.97) Height mm 835 835 835 1103 Length mm 1260 1260 1260 1720 Width mm 770 1070 1570 1070 Fork-lift fork socket pitch B mm 300 600 600 600 Safe working load kg 750 1000 1000 1500 Weight kg 120 140 173 205 Colour: Optional paint finishes light blue RAL 5012, yellow orange RAL 2000, fire red RAL 3000, 1 reseda green RAL 601, mouse grey RAL 7005. Tilting container with roller system Tilting container for solid materials with a well-balanced centre of gravity. A pull cable allows the container to be tipped at any height. The sheet steel body of the container has a strengthening profile around the edge and a sturdy base frame with slots for fork-lift forks. A catch prevents accidental slipping off or tipping. Fork-lift slots internal dimensions WxH = 200x80 mm. Tilting containers 99
