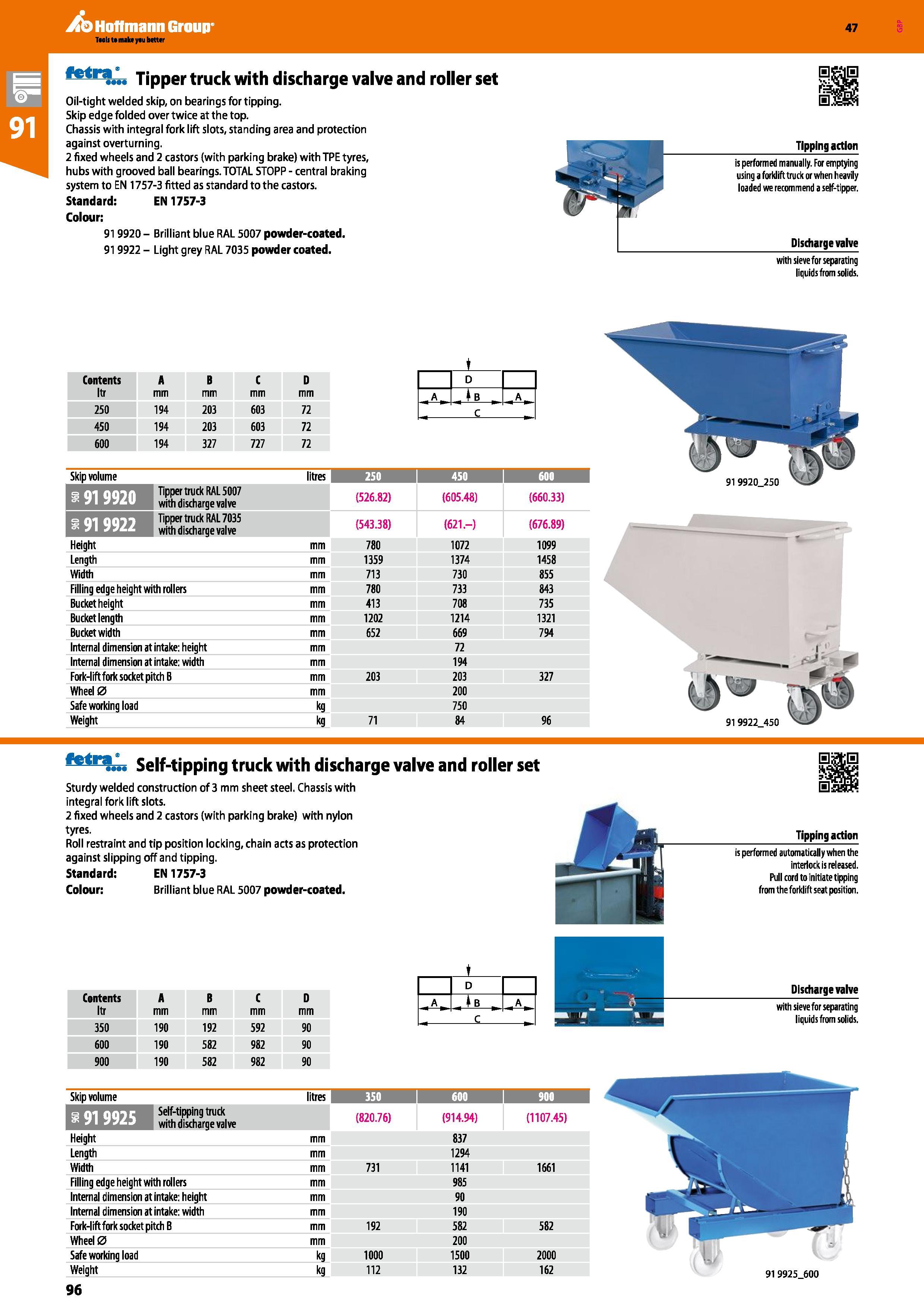

Hoffmann Group Taals to malnyau better 47 letra Tipper truck with discharge valve and roller set Oil-tight welded skip, on bearings for tipping. Skip edge folded over twice at the top. Chassis with integral fork lift slots, standing area and protection against overturning. 2 fixed wheels and 2 castors (with parking brake) with TPE tyres, hubs with grooved ball bearings. TOTAL STOPP - central braking system to EN 1757-3 fitted as standard to the castors. Standard: EN 1757-3 Colour: 919920 - Brilliant blue RAL 5007 powder-coated. 919922 - Light grey RAL 7035 powder coated. Tipping action is performed manually. For emptying using a forklift truck or when heavily loaded we recommend a self-tipper. Discharge valve with sieve for separating liquids from solids. Contents A B C D Itr mm 250 194 203 603 72 450 194 203 603 72 600 194 327 727 72 Skip volume litres 450 i 600 Tipper truck RAL 5007 with discharge valve (526.82) (605.48) (660.33) Tipper truck RAL 7035 with discharge valve (543.38) (621.-) (676.89) Height mm 780 1072 1099 Length mm 1359 1374 1458 Width mm 713 730 855 Filling edge height with rollers mm 780 733 843 Bucket height mm 413 708 735 Bucket length mm 1202 1214 1321 Bucket width mm (52 669 794 Internal dimension at intake: height mm 72 Internal dimension at intake: width mm 194 Fork-lift fork socket pitch B mm 203 203 327 Wheel 0 mm 200 Safe working load kg 750 Weight kg 71 84 96 91 9922_450 Self-tipping truck with discharge valve and roller set Sturdy welded construction of 3 mm sheet steel. Chassis with integral fork lift slots. 2 fixed wheels and 2 castors (with parking brake) with nylon tyres. Roll restraint and tip position locking, chain acts as protection against slipping off and tipping. Standard: EN 1757-3 Colour: Brilliant blue RAL 5007 powder-coated. Tipping action is performed automatically when the interlock is released. Pull cord to initiate tipping from the forklift seat position. Contents A B C D Itr mm 350 190 192 592 90 600 190 582 982 90 900 190 582 982 90 Skip volume litres 350 i 600 900 1 Self-tipping truck with discharge valve (820.76) (914.94) (1107.45) Height mm 837 Length mm 1294 Width mm 731 1141 1661 Filling edge height with rollers mm 985 Internal dimension at intake: height mm 90 Internal dimension at intake: width mm 190 Fork-lift fork socket pitch B mm 192 582 582 Wheel 0 mm 200 Safe working load kg 1000 1500 2000 Weight kg 112 132 162
