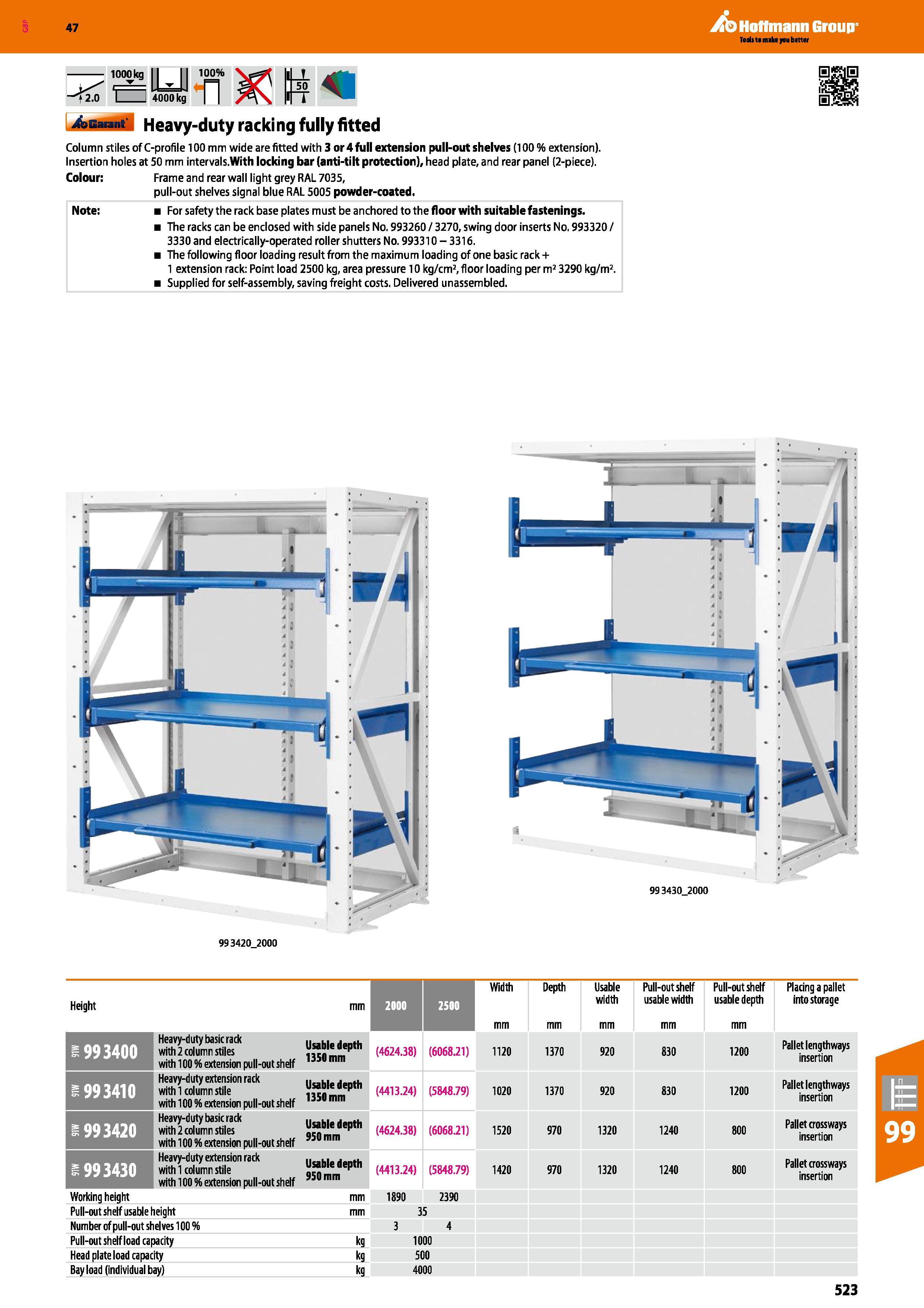

Hoffmann Group 47 4000 kg 100% n Garant Heavy-duty racki ng fully fitted Column stiles of C-profile 100 mm wide are fitted with 3 or 4 full extension pull-out shelves (100 % extension). Insertion holes at 50 mm intervals.With locking bar (anti-tilt protection), head plate, and rear panel (2-piece). Colour: Note: Frame and rear wall light grey RAL 7035, pull-out shelves signal blue RAL 5005 powder-coated. For safety the rack base plates must be anchored to the floor with suitable fastenings. The racks can be enclosed with side panels No. 993260 / 3270, swing door inserts No. 993320 / 3330 and electrically-operated roller shutters No. 993310 - 3316. The following floor loading result from the maximum loading of one basic rack + 1 extension rack: Point load 2500 kg, area pressure 10 kg/cm2, floor loading per m2 3290 kg/m2. Supplied for self-assembly, saving freight costs. Delivered unassembled. 99 3420_2000 993430 2000 Heavy-duty basic rack with 2 column stiles with 100 % extension pull-out shelf Heavy-duty extension rack with 1 column stile with 100 % extension pull-out shelf Heavy-duty basic rack with 2 column stiles with 100 % extension pull-out shelf Heavy-duty extension rack with 1 column stile with 100 % extension pull-out shelf Working height Pull-out shelf usable height Number of pull-out shelves 100 % Pull-out shelf load capacity Head plate load capacity Bay load (individual bay) mm m 2510 Width Depth Usable width Pull-out shelf usable width Pull-out shelf usable depth WtM mm Usable depth 1351 mm (4624.38) (6068.21) 1120 1370 920 830 1200 Usable depth 1351mm (4413.24) (5848.79) 1020 1370 920 830 1200 Usable depth 951mm (4624.38) (6068.21) 1520 970 1320 1240 800 Usable depth 951mm (4413.24) (5848.79) 1420 970 1320 1240 800 mm 1890 2390 mm 35 3 4 kg 1000 kg 500 kg 4000 Placing a pallet into storage Pallet lengthways insertion Pallet lengthways insertion Pallet crossways insertion Pallet crossways insertion 523
