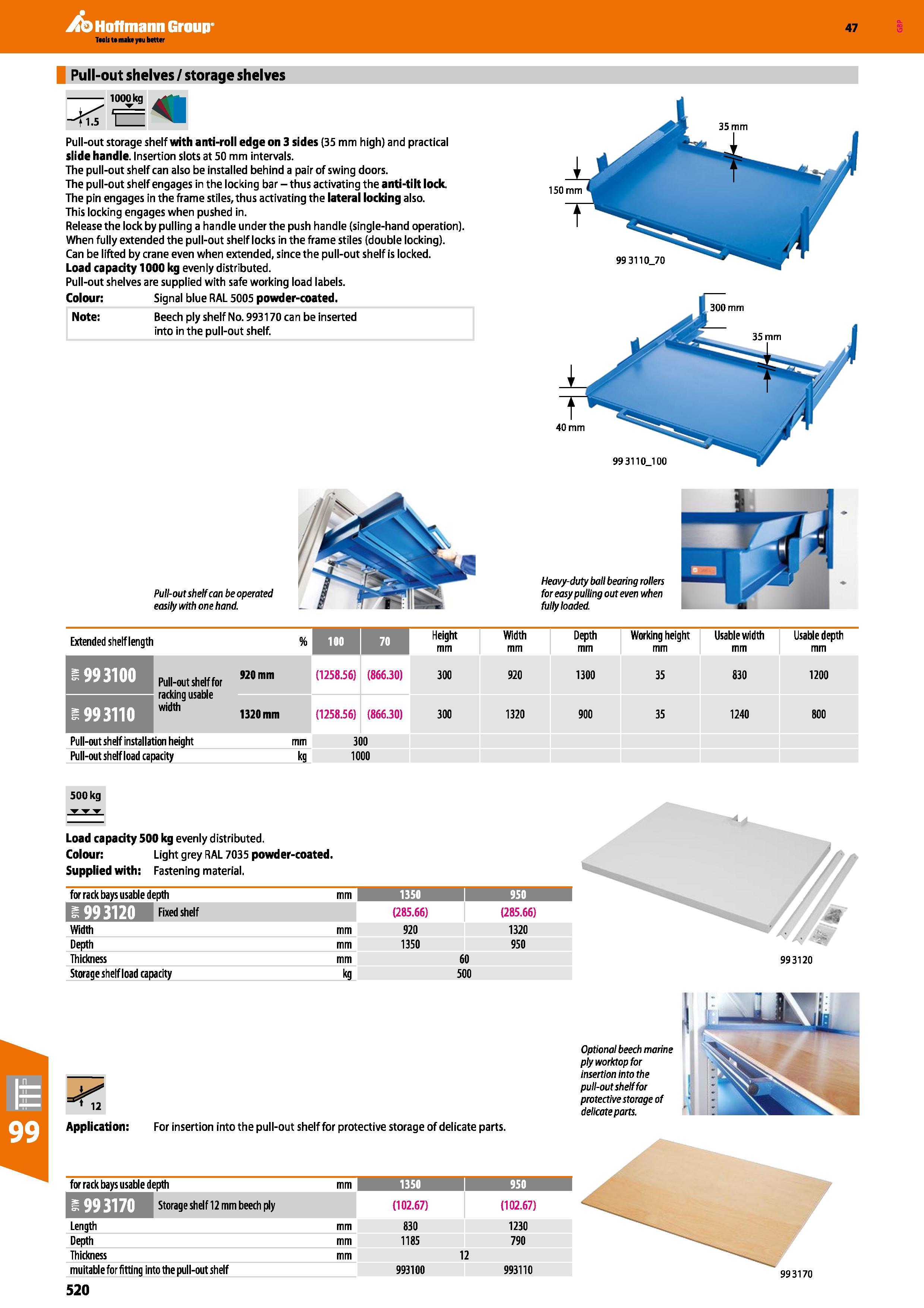

520 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.520

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 520 0520 ENG Lab2u

Hoffmann Group 47 Pull-out shelves / storage shelves 1000kg 4 1 Pull-out storage shelf with anti-roll edge on 3 sides (35 mm high) and practical slide handle. Insertion slots at 50 mm Intervals. The pull-out shelf can also be Installed behind a pair of swing doors. The pull-out shelf engages in the locking bar - thus activating the anti-tilt lock. The pin engages in the frame stiles, thus activating the lateral locking also. This locking engages when pushed in. Release the lock by pulling a handle under the push handle (single-hand operation). When fully extended the pull-out shelf locks in the frame stiles (double locking). Can be lifted by crane even when extended, since the pull-out shelf is locked. Load capacity 1000 kg evenly distributed. Pull-out shelves are supplied with safe working load labels. Colour: Signal blue RAL 5005 powder-coated. Note: Beech ply shelf No. 993170 ca n be inserted into in the pull-out shelf. Pull-out shelf can be operated easily with one hand. Heavy-duty ball bearing rollers for easy pulling out even when fully loaded. Extended shelf length % 100 70 Height mm Width mm Depth mm Working height mm Usable width mm Usable depth mm i 993100 Pull-out shelf for racking usable width 920 mm (1258.56) (866.30) 300 920 1300 35 830 1200 1320 mm (1258.56) (866.30) 300 1320 900 35 1240 800 Pull-out shelf installation height mm 300 Pull-out shelf load capacity kg 1000 500 kg Load capacity 500 kg evenly distributed. Colour: Light grey RAL 7035 powder-coated. Supplied with: Fastening material. for rack bays usable depth mm 1350 1 950 i 11993120 MMM (285.66) (285.66) Width mm 920 1320 Depth mm 1350 950 Thickness mm 60 Storageshelf load capacity kg 500 993120 + 12 Application: For insertion into the pull-out shelf for protective storage of delicate parts. Optional beech marine ply worktop for insertion into the pull-out shelf for protective storage of delicate parts. for rack bays usable depth mm 1350 1 950 1 Storage shelf 12 mm beech ply (102.67) (102.67) Length mm 830 1230 Depth mm 1185 790 Thickness mm 12 muitable for fitting into the pull-out shelf 993100 993110 99 3110_70 993170
