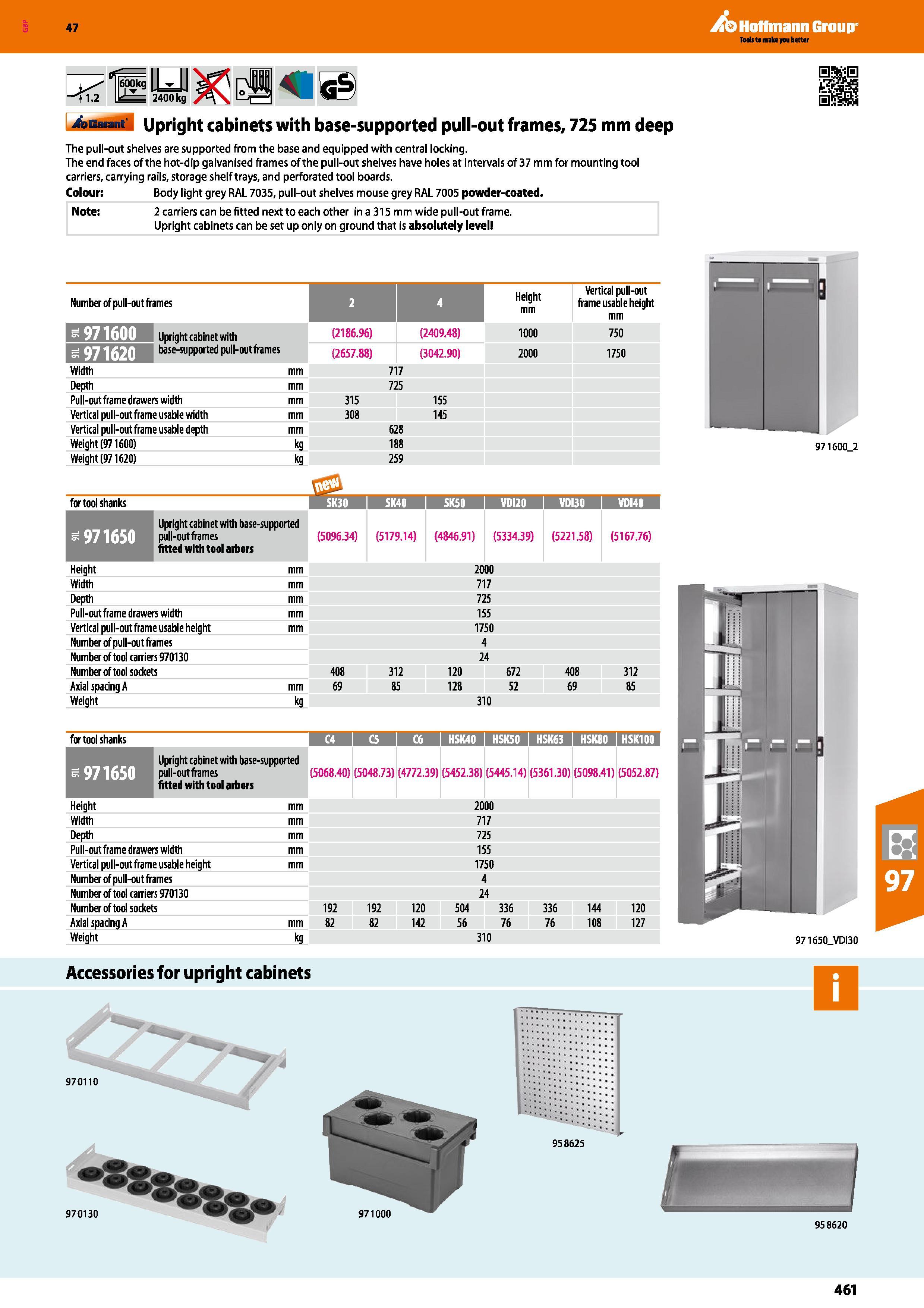

Hoffmann Group 47 &Gannt Upright cabinets with base-supported pull-out frames, 725 mm deep The pull-out shelves are supported from the base and equipped with central locking. The end faces of the hot-dip galvanised frames of the pull-out shelves have holes at intervals of 37 mm for mounting tool carriers, carrying rails, storage shelf trays, and perforated tool boards. Colour: Body light grey RAL 7035, pull-out shelves mouse grey RAL 7005 powder-coated. Note: 2 carriers can be fitted next to each other in a 315 mm wide pull-out frame. Upright cabinets can be set up only on ground that is absolutely level Number of pull-out frames 2 4 Height mm Vertical pull-out frame usable height mm Upright cabinet with (2186.96) (2409.48) 1000 750 SfTTTSTil base-supported pull-outframes (2657.88) (3042.90) 2000 1750 Width Depth Pull-out frame drawers width Vertical pull-out frame usable width Vertical pull-out frame usable depth Weight (971600) Weight (971620) mm 315 308 717 725 628 188 259 155 145 for tool shanks SK30 I SK40 i SK50 j VDI20 VDI30 VDI40 I Upright cabinet with base-supported '> B pull-outframes fitted with tool arbors (5096.34) (5179.14) (4846.91) (5334.39) (5221.58) (5167.76) Height mm 2000 Width mm 717 Depth mm 725 Pull-out frame drawers width mm 155 Vertical pull-out frame usable height mm 1750 Number of pull-out frames 4 Number of tool carriers 970130 24 Number of tool sockets 408 312 120 672 408 312 Axial spacing A mm 69 85 128 52 69 85 Weight kg 310 for tool shanks I C4 C5 C6 -971650 Upright cabinet with base-supported pull-outframes fitted with tool arbors (5068.40) (5048.73) (4772.39) (5452.38) (5445.14) (5361.30) (5098.41) (5052.87) Height Width Depth Pull-out frame drawers width Vertical pull-out frame usable height Number of pull-out frames Number of tool carriers 970130 Number of tool sockets Axial spacing A Weight mm kg 192 82 192 82 120 142 2000 717 725 155 1750 4 24 504 336 56 76 310 336 76 144 108 120 127 971600_2 971650_VDI30 Accessories for upright cabinets 970110 970130 971000 958625 958620 461
