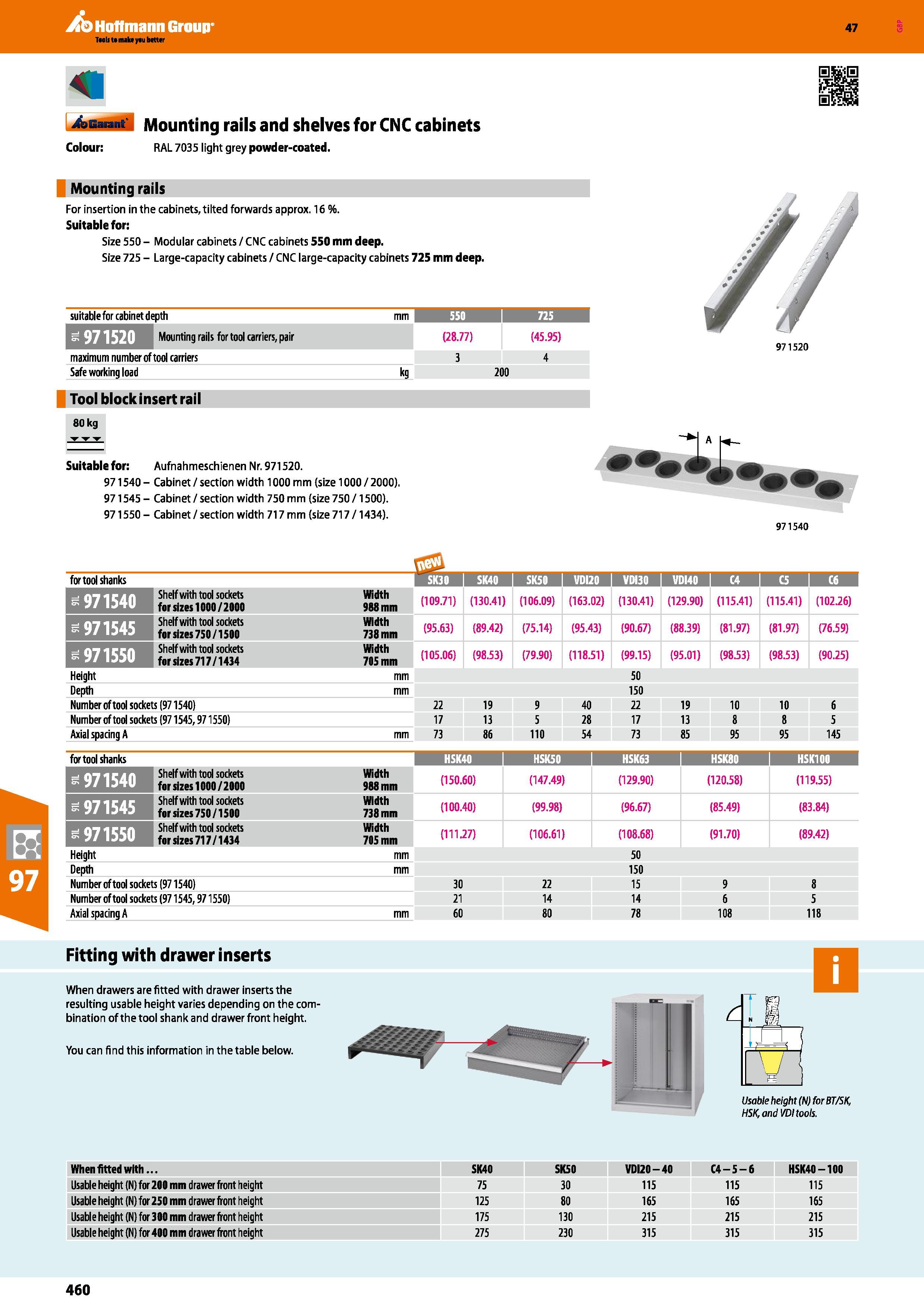

Hoffmann Group 47 4aBM id Mounting rails and shelves for CNC cabinets Colour: RAL 7035 light grey powder-coated. Mounting rails For insertion in the cabinets, tilted forwards approx. 16 %. Suitable for: Size 550 - Modular cabinets / CNC cabinets 550 mm deep. Size 725 - Large-capacity cabinets / CNC large-capacity cabinets 725 mm deep. suitable for cabinet depth HKni 550 1 725 1 Mounting rails for tool carriers, pair (28.77) (45.95) maximum number of tool carriers Safe working load 200 Tool block insert rail 80 kg w -W -W Suitablefor: Aufnahmeschienen Nr. 971520. 971540 - Cabinet / section width 1000 mm (size 1000 / 2000). 971545 - Cabinet / section width 750 mm (size 750 /1500). 971550 - Cabinet / section width 717 mm (size 717/1434). 971540 for tool shanks SK30 1 SK40 I SK50 I VDI20 I VDI30 1 VDI40 C4 1 C5 1 c 1 WCTWII Shelf with tool sockets for sizes 1000/2000 Width 918 mm (109.71) (130.41) (106.09) (163.02) (130.41) (129.90) (115.41) (115.41) (102.26) HCTWl Shelf with tool sockets for sizes 750/1500 Width 738 mm (95.63) (89.42) (75.14) (95.43) (90.67) (88.39) (81.97) (81.97) (76.59) WCTTJJIB Shelf with tool sockets for sizes 717/1434 Width 705 mm (105.06) (98.53) (79.90) (118.51) (99.15) (95.01) (98.53) (98.53) (90.25) Height mm 50 Depth mm 150 Number of tool sockets (971540) 22 19 9 40 22 19 10 10 6 Number of tool sockets (971545,971550) 17 13 5 28 17 13 8 8 5 Axial spacing A mm 73 86 110 54 73 85 95 95 145 for tool shanks HSK40 HSK50 j HSK63 IHMBI HSK100 WCTWI1 Shelf with tool sockets for sizes 1000/2000 Width 988 mm (150.60) (147.49) (129.90) (120.58) (119.55) Shelf with tool sockets for sizes 750/1500 Width 738 mm (100.40) (99.98) (96.67) (85.49) (83.84) BCTTHI Shelf with tool sockets for sizes 717/1434 Width 705 mm (111.27) (106.61) (108.68) (91.70) (89.42) Height mm 50 Depth mm 150 Number of tool sockets (971540) 30 22 15 9 8 Number of tool sockets (971545,971550) 21 14 14 6 5 Axial spacing A mm 60 80 78 108 118 Fitting with drawer inserts When drawers are fitted with drawer inserts the resulting usable height varies depending on the combination of the tool shank and drawer front height. You can find this information in the table below. - =£3 w J Usable height (N) for BT/SK, HSK and VDI tools. When fitted with... SK40 SK50 VDI20 - 40 C4-5-6 HSK40-100 Usable height (N) for 200 mm drawer front height 75 30 115 115 115 Usable height (N) for 250 mm drawer front height 125 80 165 165 165 Usable height (N) for 300 mm drawer front height 175 130 215 215 215 Usable height (N) for 400 mm drawer front height 275 230 315 315 315 460
