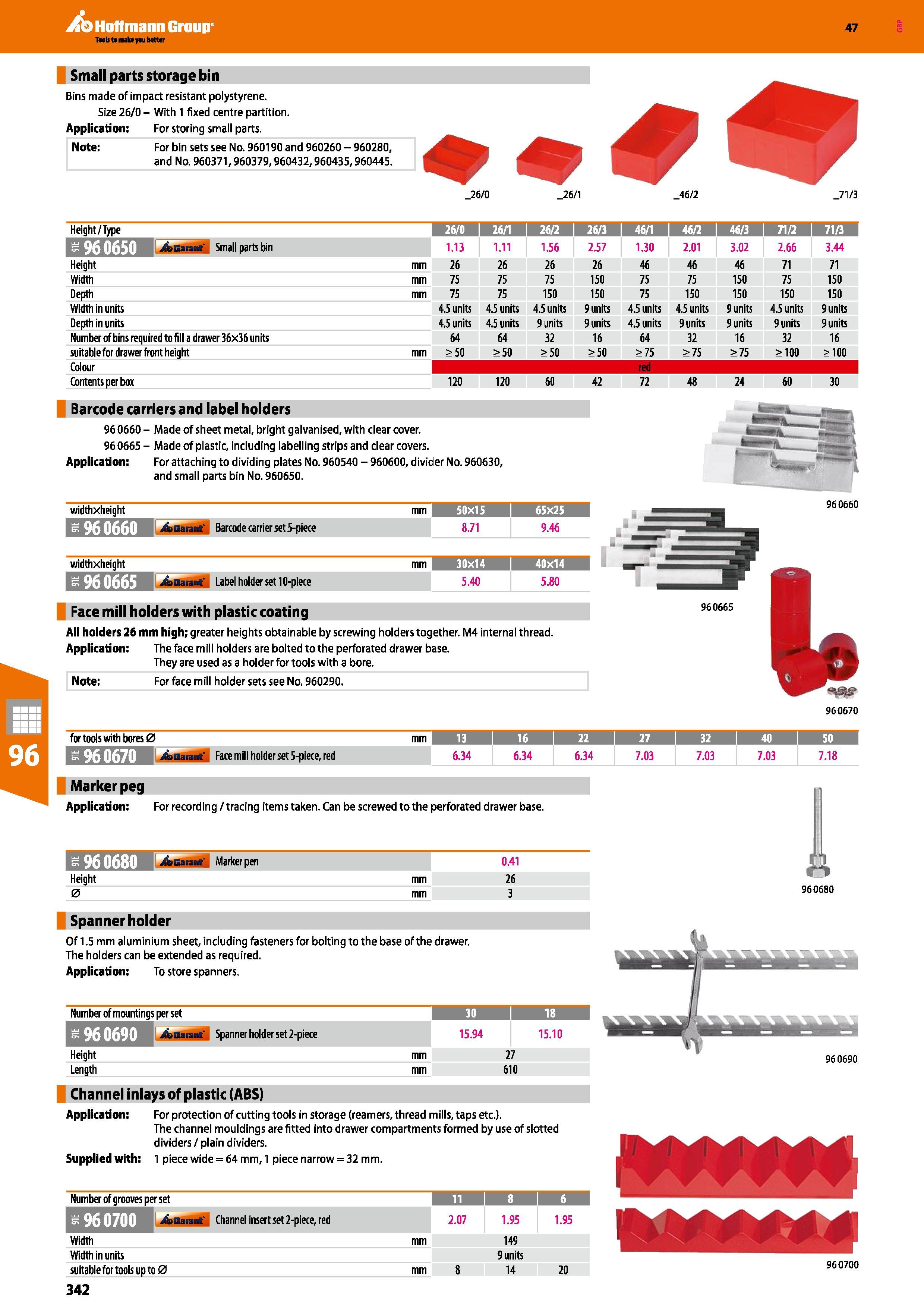

342 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.342

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 342 0342 ENG Lab2u

Hoffmann Group 47 Small parts storage bin Bins made of impact resistant polystyrene. Size 26/0 - With 1 fixed centre partition. Application: For storing small parts. Note: For bin sets see No. 960190 and 960260 - 960280, and No. 960371,960379,960432,960435,960445. _26/0 _26/1 _46/2 _71/3 Height /Type 26/0 26/1 26/2 26/3 I 46/1 46/2 46/3 71/2 71/3 S.'Ml fyfll i&Gaiant' Small Darts bin 1.13 1.11 1.56 2.57 1.30 2.01 3.02 2.66 3.44 Height mm 26 26 26 26 46 46 46 71 71 Width mm 75 75 75 150 75 75 150 75 150 Depth mm 75 75 150 150 75 150 150 150 150 Width in units 4.5 units 4.5 units 4.5 units 9 units 4.5 units 4.5 units 9 units 4.5 units 9 units Depth in units 4.5 units 4.5 units 9 units 9 units 4.5 units 9 units 9 units 9 units 9 units Number of bins required to fill a drawer 36x36 units 64 64 32 16 64 32 16 32 16 suitable for drawer front height mm >50 >50 >50 >50 >75 >75 >75 >100 >100 Colour red Contents per box 120 120 60 42 72 48 24 60 30 Barcode carriers and label holders 960660- 960665- Application: Made of sheet metal, bright galvanised, with clear cover. Made of plastic, including labelling strips and clear covers. For attaching to dividing plates No. 960540 - 960600, divider No. 960630, and small parts bin No. 960650. widthxheight mm 50x15 65x25 1 1 -960660 jfeiiariE. Barcode carrier set 5-piece 8.71 9.46 widthxheight mm 30x14 40x14 -960665 Label holder set 10-piece 5.40 5.80 Face mill holders with plastic coating All holders 26 mm high; greater heights obtainable by screwing holders together. M4 internal thread. Application: The face mill holders are bolted to the perforated drawer base. They are used as a holder for tools with a bore. Note: For face mill holder sets see No. 960290. 960670 for tools with bores 0 mm 13 1 16 1 22 1 27 1 32 40 1 50 L/bGarant Face mill holder set 5-piece, red 6.34 6.34 6.34 7.03 7.03 7.03 7.18 Marker Application: For recording / tracing items taken. Can be screwed to the perforated drawer base. 960680 4asaAit Marker pen Height 0 0.41 26 3 Spanner holder Of 1.5 mm aluminium sheet, including fasteners for bolting to the base of the drawer. The holders can be extended as required. Application: To store spanners. Number of mountings per set MM 30 I 18 I Spanner holder set 2-piece 15.94 15.10 960680 i... flf M 1 Height Length 27 610 960690 Channel inlays of plastic (ABS) Application: For protection of cutting tools in storage (reamers, thread mills, taps etc.). The channel mouldings are fitted into drawer compartments formed by use of slatted dividers / plain dividers. Supplied with: 1 piece wide = 64 mm, 1 piece narrow = 32 mm. Number of grooves per set ii 1 8 6 BT111 r 1 'W1 bEarant' Channel insert set 2-piece, red 2.07 1.95 1.95 Width mm 149 Width in units 9 units suitable for tools up to 0 mm 8 14 20 960700 342
