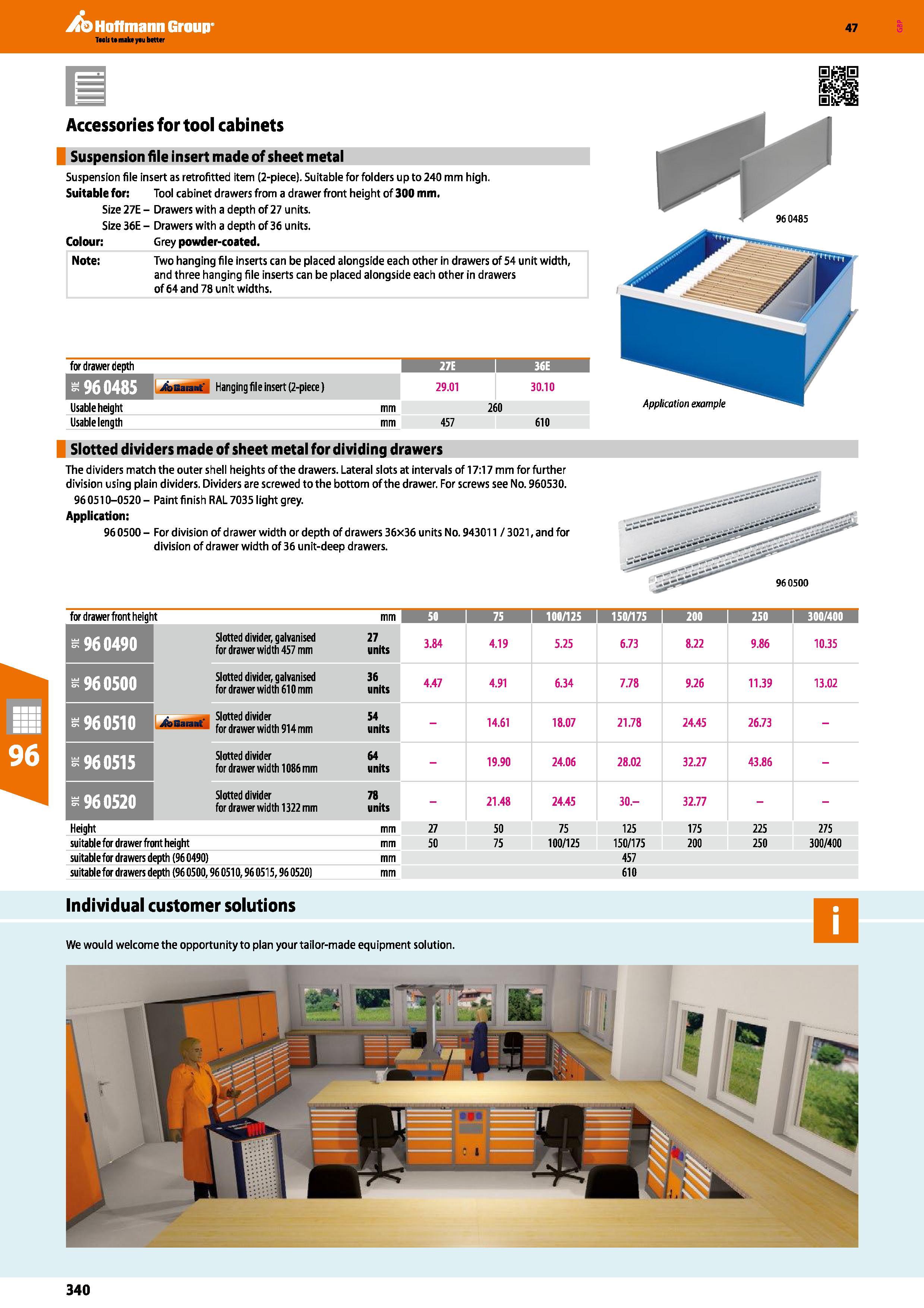

Hoffmann Group 47 Accessories for tool cabinets Suspension file insert made of sheet metal Suspension file insert as retrofitted item (2-piece). Suitable for folders up to 240 mm high. Suitable for: Tool cabinet drawers from a drawer front height of 300 mm. Size 27E - Drawers with a depth of 27 units. Size 36E - Drawers with a depth of 36 units. Colour: Grey powder-coated. Note: Two hanging file inserts can be placed alongside each other in drawers of 54 unit width, and three hanging file inserts can be placed alongside each other in drawers of 64 and 78 unit widths. 960485 for drawer depth HI 27E 1 36E 1 Hanging file insert (2-piece) 29.01 30.10 Usable height mm 260 Usable length mm 457 610 Slotted dividers made of sheet metal for dividing drawers The dividers match the outer shell heights of the drawers. Lateral slots at intervals of 17:17 mm for further division using plain dividers. Dividers are screwed to the bottom of the drawer. For screws see No. 960530. 96 0510-0520 - Paint finish RAL 7035 light grey. Application: 96 0500 - For division of drawer width or depth of drawers 36x36 units No. 943011 / 3021, and for division of drawer width of 36 unit-deep drawers. for drawer front height mm 50 I 75 I 100/125 I 150/175 200 j 250 I 300/400 960490 Slotted divider, galvanised 27 for drawer width 457 mm units 3.84 4.19 5.25 6.73 8.22 9.86 10.35 960500 Slotted divider, galvanised 36 fordrawerwidth610mm units 4.47 4.91 6.34 7.78 9.26 11.39 13.02 960510 v Slotted divider 34 for drawer width 914 mm units - 14.61 18.07 21.78 24.45 26.73 - 960515 Slotted divider 64 for drawer width 1086mm units - 19.90 24.06 28.02 32.27 43.86 - 960520 Slotted divider 78 for drawer width 1322mm units - 21.48 24.45 30.- 32.77 - - Height mm 27 50 75 125 175 225 275 suitable for drawer front height mm 50 75 100/125 150/175 200 250 300/400 suitable for drawers depth (96 0490) suitable for drawers depth (96 0500,96 0510,96 0515,96 0520 mm 457 610 Individual customer solutions We would welcome the opportunity to plan your tailor-made equipment solution. Application example 340
