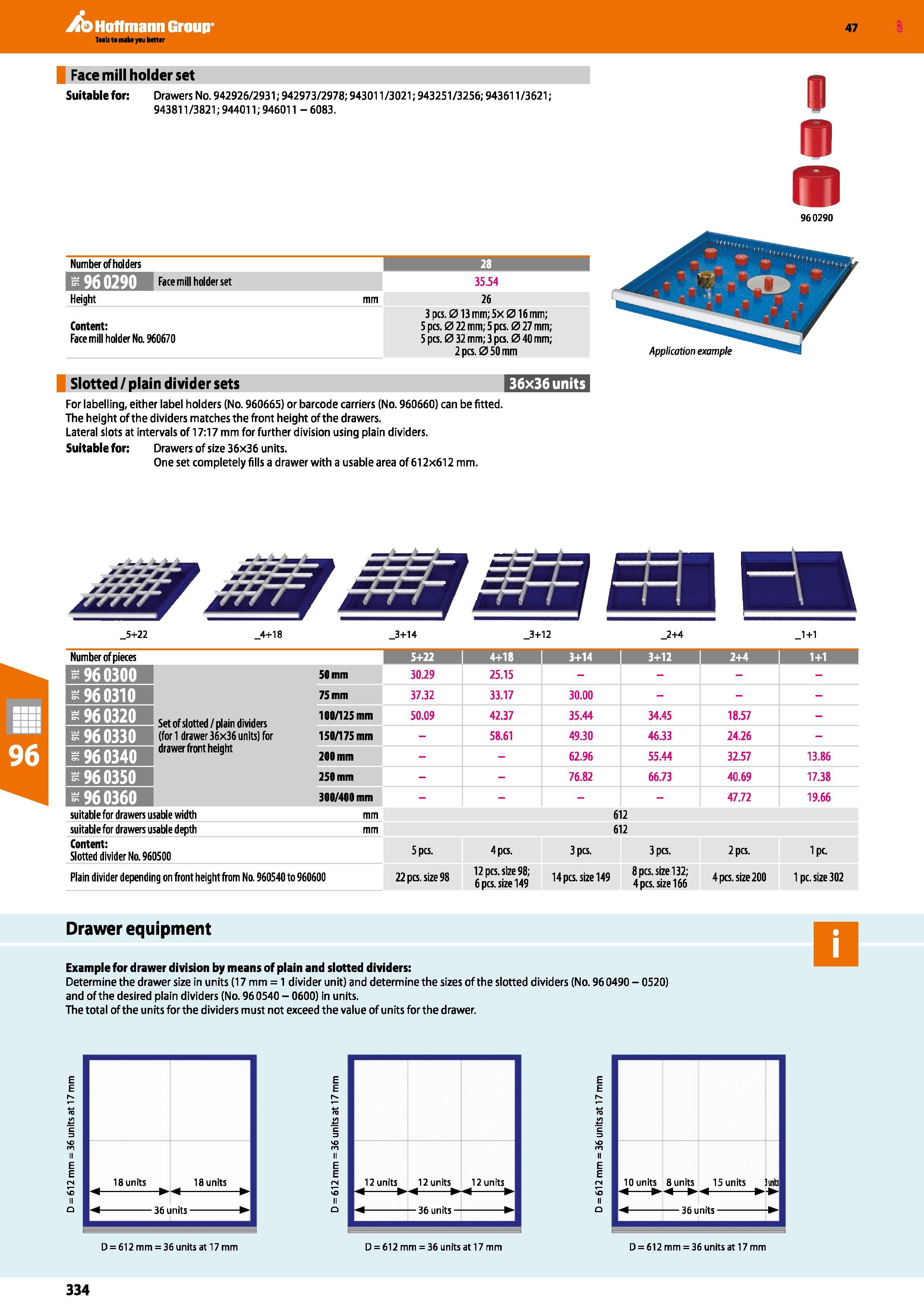

Hoffmann Group 47 Face mill holder set Suitable for: Drawers No. 942926/2931; 942973/2978; 943011/3021; 943251/3256; 943611/3621; 943811/3821; 944011; 946011 -6083. I m (VI 960290 For labelling, either label holders (No. 960665) or barcode carriers (No. 960660) can be fitted. The height of the dividers matches the front height of the drawers. Lateral slots at intervals of 17:17 mm for further division using plain dividers. Suitable for: Drawers of size 36x36 units. One set completely fills a drawer with a usable area of 612x612 mm. _5+22 _4+18 _3+14 _3+12 _2+4 _i+i Number of pieces 5+22 4+18 3+14 I 3+12 2+4 i 1+1 -960300 51 mm 30.29 25.15 - - - - -960310 75 mm 37.32 33.17 30.00 - - - -960320 Set of slotted / plain dividers (for 1 drawer 36x36 units) for 100/125 mm 50.09 42.37 35.44 34.45 18.57 - -960330 150/175 mm - 58.61 49.30 46.33 24.26 - -960340 drawer front height 200 mm - - 62.96 55.44 32.57 13.86 -960350 250 mm - - 76.82 66.73 40.69 17.38 -960360 300/400 mm - - - - 47.72 19.66 suitable for drawers usable width mm 612 suitable for drawers usable depth mm 612 Content: Slotted divider No. 960500 5 pcs. 4 pcs. 3 pcs. 3 pcs. 2 pcs. 1pc Plain divider depending on front height from No. 960540 to 960600 22 pcs. size 98 12 pcs. size 98; 6 pa. size 149 14 pcs. size 149 8 pcs. size 132; 4 pcs. size 166 4 pcs. size 200 1 pc. size 302 Drawer equipment Example for drawer division by means of plain and slotted dividers: Determine the drawer size in units (17 mm = 1 divider unit) and determine the sizes of the slotted dividers (No. 960490-0520) and of the desired plain dividers (No. 960540 - 0600) in units. The total of the units for the dividers must not exceed the value of units for the drawer. 334
