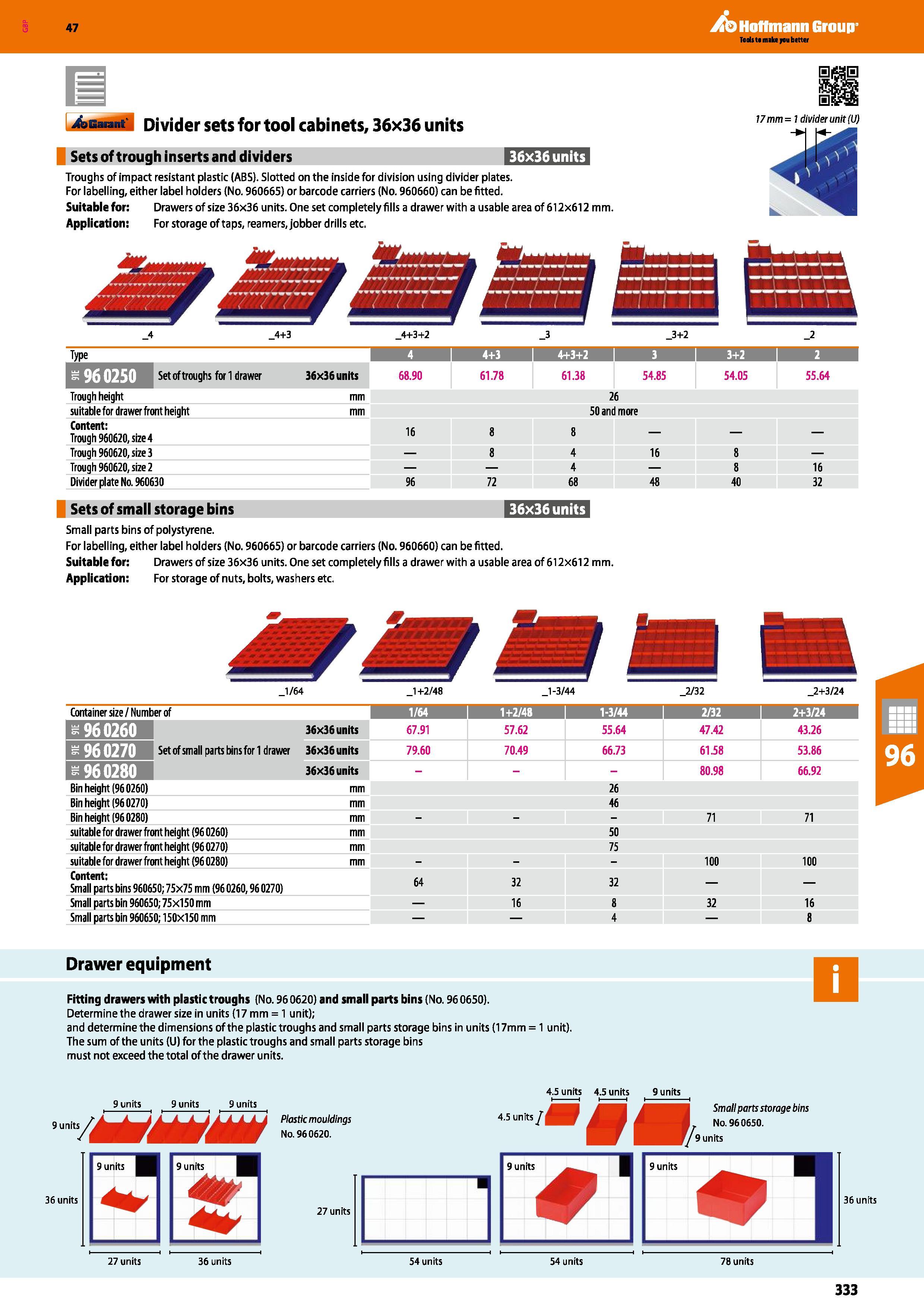

Hoffmann Group 47 Tools ta make you better Auarant Divider sets for tool cabinets, 36x36 units Sets of trough inserts and dividers 36x36 units Troughs of impact resistant plastic (ABS). Slotted on the inside for division using divider plates. For labelling, either label holders (No. 960665) or barcode carriers (No. 960660) can be fitted. Suitablefor: Drawers of size 36x36 units. One set completely fills a drawer with a usable area of 612x612 mm Application: For storage of taps, reamers, jobber drills etc. _4 _4+3 _4+3+2 _3 _3+2 _2 Type I 4 I 4+3 4+3+2 I 3 3+2 i 2 lit-'Mlr-HlB Set of troughs for 1 drawer 36x36 units 68.90 61.78 61.38 54.85 54.05 55.64 Trough height mm 26 suitable for drawer front height mm 50 and more Content: Trough 960620, size 4 16 8 8 Trough 960620, size 3 8 4 16 8 Trough 960620, size 2 4 8 16 Divider plate No. 960630 96 72 68 48 40 32 Sets of small storage bins 36x36 units Small parts bins of polystyrene. For labelling, either label holders (No. 960665) or barcode carriers (No. 960660) can be fitted. Suitable for: Drawers of size 36x36 units. One set completely fills a drawer with a usable area of 612x612 mm. Application: For storage of nuts, bolts, washers etc. _1/64 _1 +2/48 _1-3/44 _2/32 _2+3/24 Container size /Number of 1/64 1 1+2/48 1 1-3/44 1 2/32 I 2+3/24 -960260 36x36 units 67.91 57.62 55.64 47.42 43.26 s 960270 Set of small parts bins for 1 drawer 36x36 units 79.60 70.49 66.73 61.58 53.86 -960280 36x36 units - - - 80.98 66.92 Bin height (96 0260) mm 26 Bin height (96 0270) mm 46 Bin height (96 0280) mm - - - 71 71 suitable for drawer front height (96 0260) mm 50 suitable for drawer front height (96 0270) mm 75 suitable for drawer front height (96 0280) mm - - - 100 100 Content: Small parts bins 960650; 75x75 mm (96 0260,96 0270) 64 32 32 Small parts bin 960650; 75x150 mm 16 8 32 16 Small parts bin 960650; 150x150 mm 4 8 Drawer equipment Fitting drawers with plastic troughs (No. 960620) and small parts bins (No. 960650). Determine the drawer size in units (17 mm = 1 unit); and determine the dimensions of the plastic troughs and small parts storage bins in units (17mm = 1 unit). The sum of the units (U)for the plastic troughs and small parts storage bins must not exceed the total of the drawer units. 4.5 units 4.5 units 9 units 9 units 9 units 9 units 9 unit: 36 units 9 units 4 V Plastic mouldings No. 96 0620. 27 units 4.5 units/J Small parts storage bins _ No. 96 0650. '/ 9 units 9 units 1 36 units 27 units 36 units 54 units 54 units 78 units 333
