304 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.304

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 304 0304 ENG Lab2u

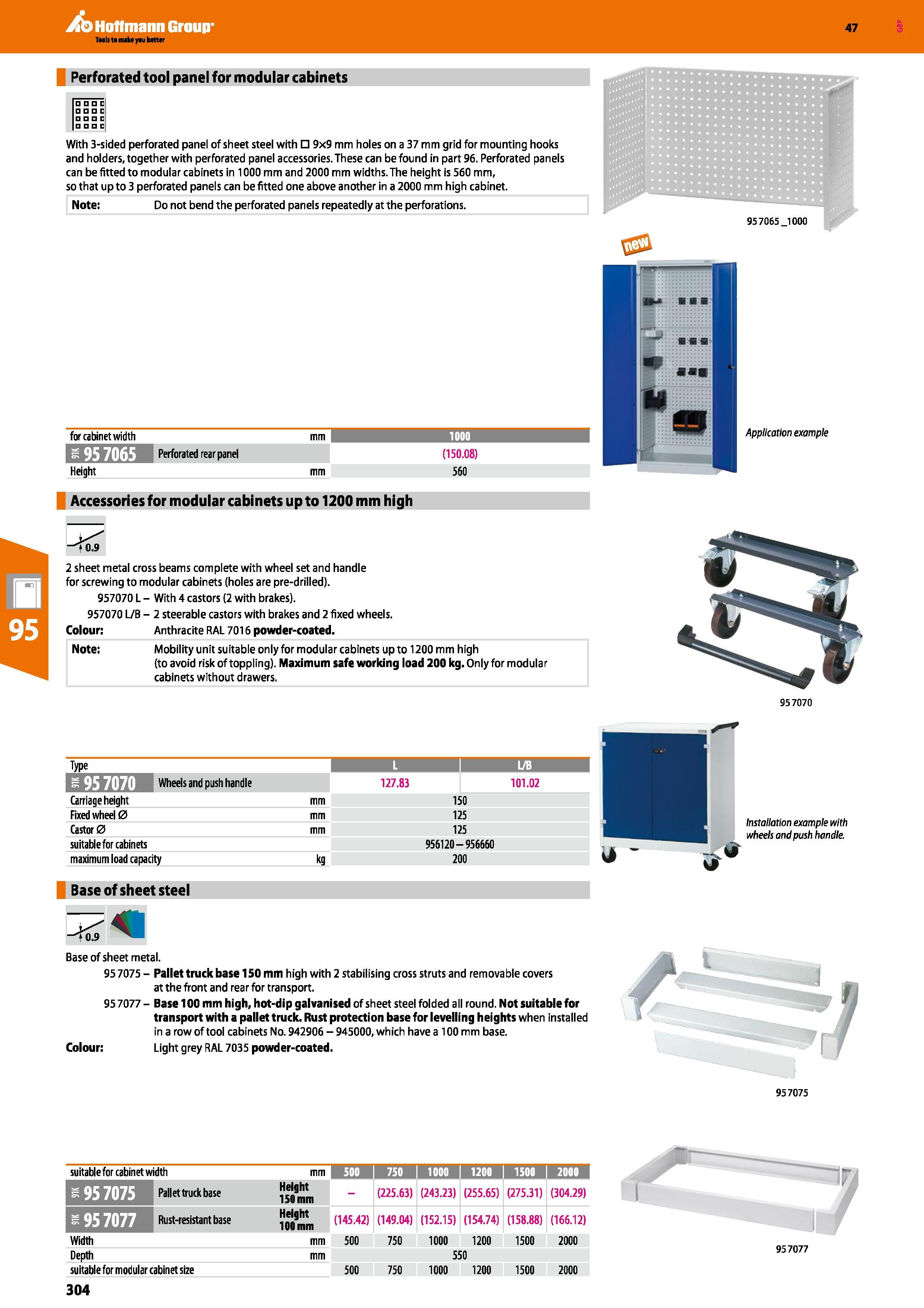

Hoffmann Group 47 Perforated tool panel for modular cabinets c c E E With 3-sided perforated panel of sheet steel with 9x9 mm holes on a 37 mm grid for mounting hooks and holders, together with perforated panel accessories. These can be found in part 96. Perforated panels can be fitted to modular cabinets in 1000 mm and 2000 mm widths. The height is 560 mm, so that up to 3 perforated panels can be fitted one above another in a 2000 mm high cabinet. Note: Do not bend the perforated panels repeatedly at the perforations. I 95 7065 J 000 for cabinet width mm 1000 957065 Perforated rear panel (150.08) Application example Accessories for modular cabinets up to 1200 mm high <0.9 2 sheet metal cross beams complete with wheel set and handle for screwing to modular cabinets (holes are pre-drilled). 957070 L - With 4 castors (2 with brakes). 957070 L/B - 2 steerable castors with brakes and 2 fixed wheels. Colour: Anthracite RAL 7016 powder-coated. Note: Mobility unit suitable only for modular cabinets up to 1200 mm high (to avoid risk of toppling). Maximum safe working load 200 kg. Only for modular cabinets without drawers. 957070 Type L L/B 957070 Wheels and push handle 127.83 101.02 Carriage height Fixed wheel 0 Castor 0 suitable for cabinets maximum load capacity mm 150 125 125 956120 - 956660 200 Installation example with wheels and push handle. Base of sheet steel 41 Base of sheet metal. 95 7075 - Pallet truck base 150 mm high with 2 stabilising cross struts and removable covers at the front and rear for transport. 95 7077 - Base 100 mm high, hot-dip galvanised of sheet steel folded all round. Not suitable for transport with a pallet truck. Rust protection base for levelling heights when installed in a row of tool cabinets No. 942906 - 945000, which have a 100 mm base. Colour: Light grey RAL 7035 powder-coated. 'I 957075 suitable for cabinet width mm I 500 I 750 I 1000 I 1200 I 1500 'liM 95 7075 Pallet truck base Height 150 mm - (225.63) (243.23) (255.65) (275.31) (304.29) 957077 Rust-resistant base Height 100 mm (145.42) (149.04) (152.15) (154.74) (158.88) (166.12) Width mm 500 750 1000 1200 1500 2000 Depth mm 550 suitable for modular cabinet size 500 750 1000 1200 1500 2000 1 957077 304
